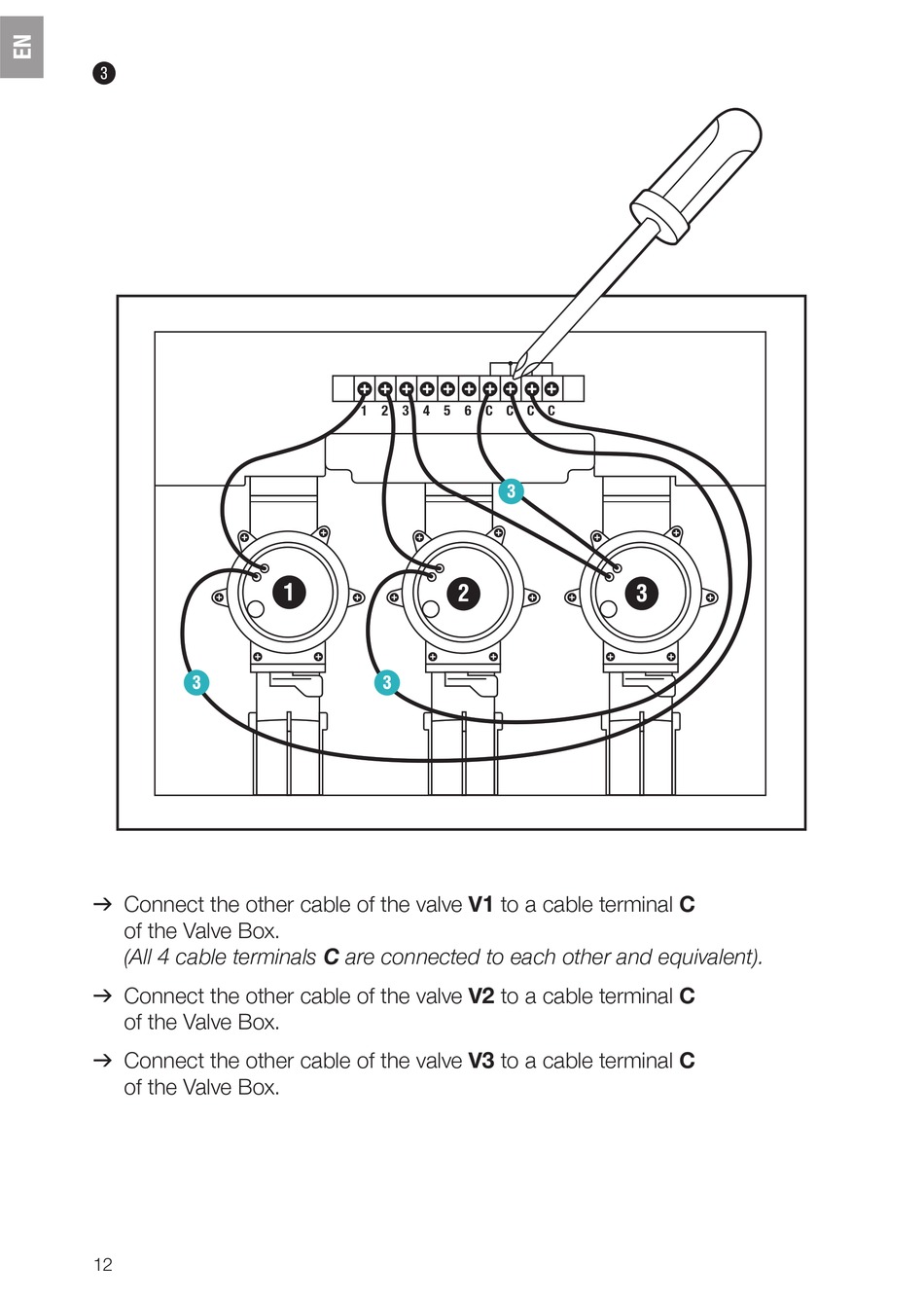

v Connect the other cable of the valve V1 to a cable terminal C
of the Valve Box.
(All 4 cable terminals C are connected to each other and equivalent).
v Connect the other cable of the valve V2 to a cable terminal C
of the Valve Box.
v Connect the other cable of the valve V3 to a cable terminal C
of the Valve Box.
12
1 2 3 4 5 6 C C C C
