Gardena 19032 Operator's Manual page 11

Smart irrigation control
Hide thumbs Also See for 19032:
Table of Contents

Advertisement

"

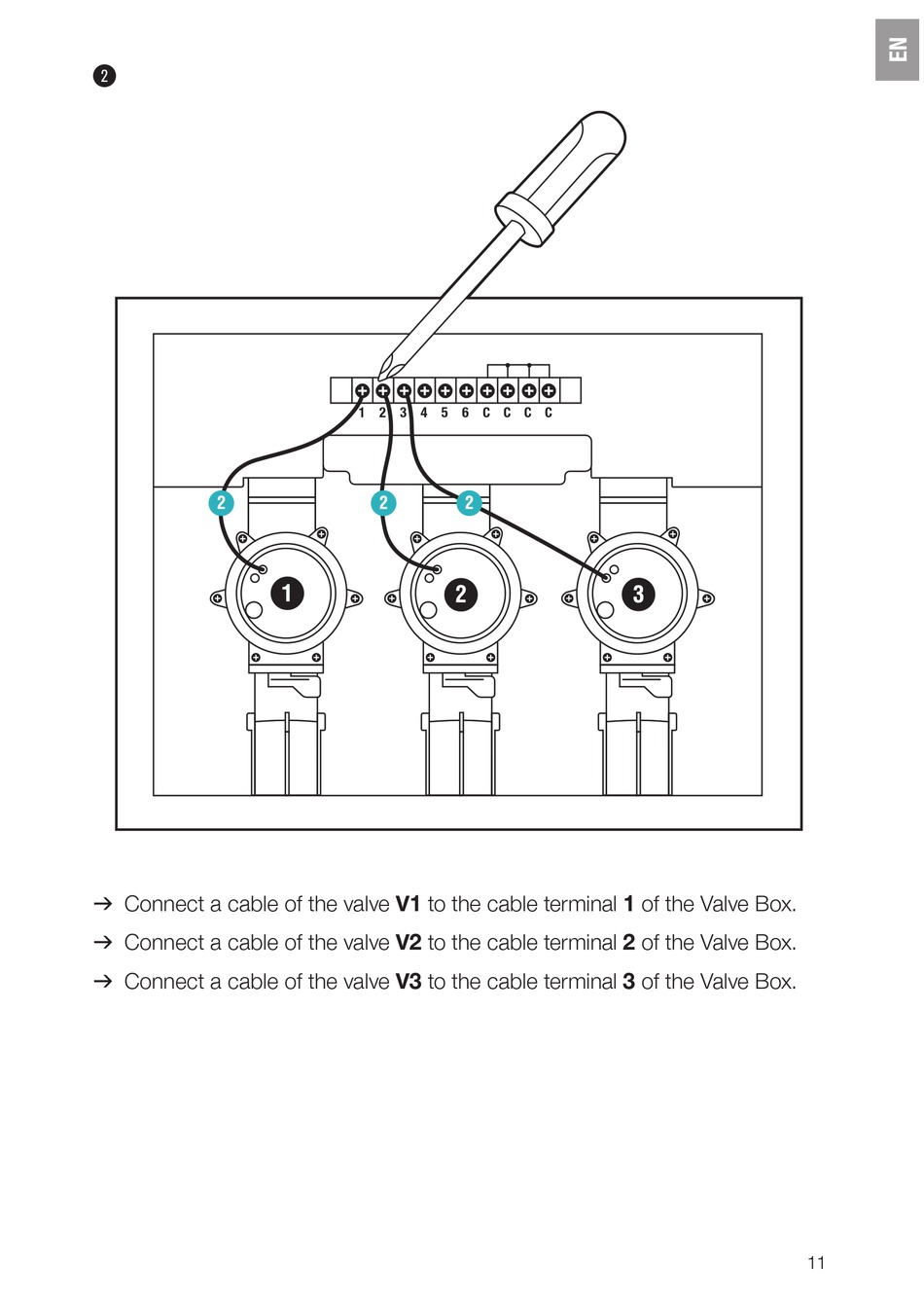

1 2 3 4 5 6 C C C C
v Connect a cable of the valve V1 to the cable terminal 1 of the Valve Box.
v Connect a cable of the valve V2 to the cable terminal 2 of the Valve Box.
v Connect a cable of the valve V3 to the cable terminal 3 of the Valve Box.
11
