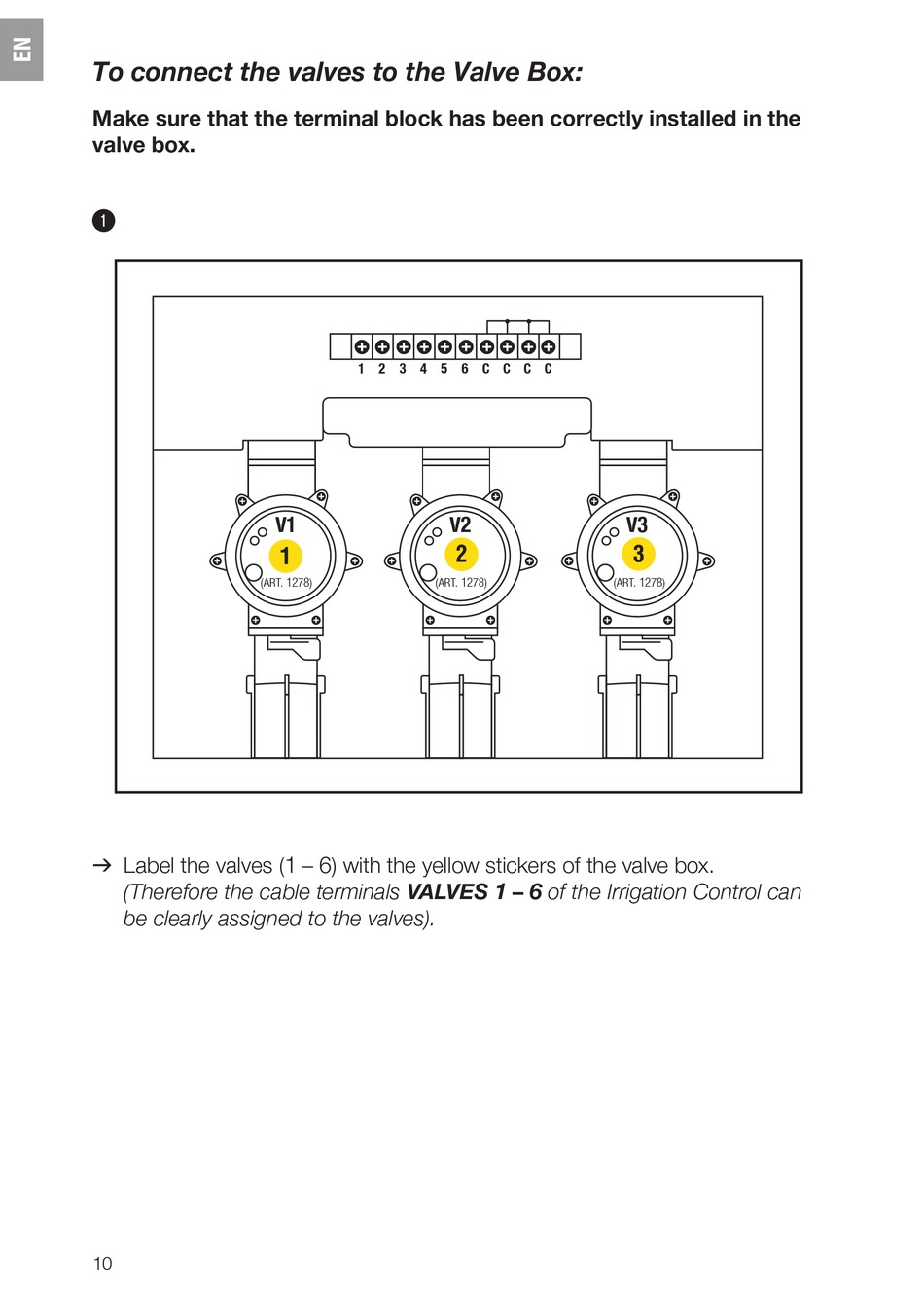

To connect the valves to the Valve Box:
Make sure that the terminal block has been correctly installed in the
valve box.
!
(ART. 1278)
v Label the valves (1 – 6) with the yellow stickers of the valve box.
(Therefore the cable terminals VALVES 1 – 6 of the Irrigation Control can
be clearly assigned to the valves).
10
1 2 3 4 5 6 C C C C
V1
(ART. 1278)
V2
(ART. 1278)
V3
