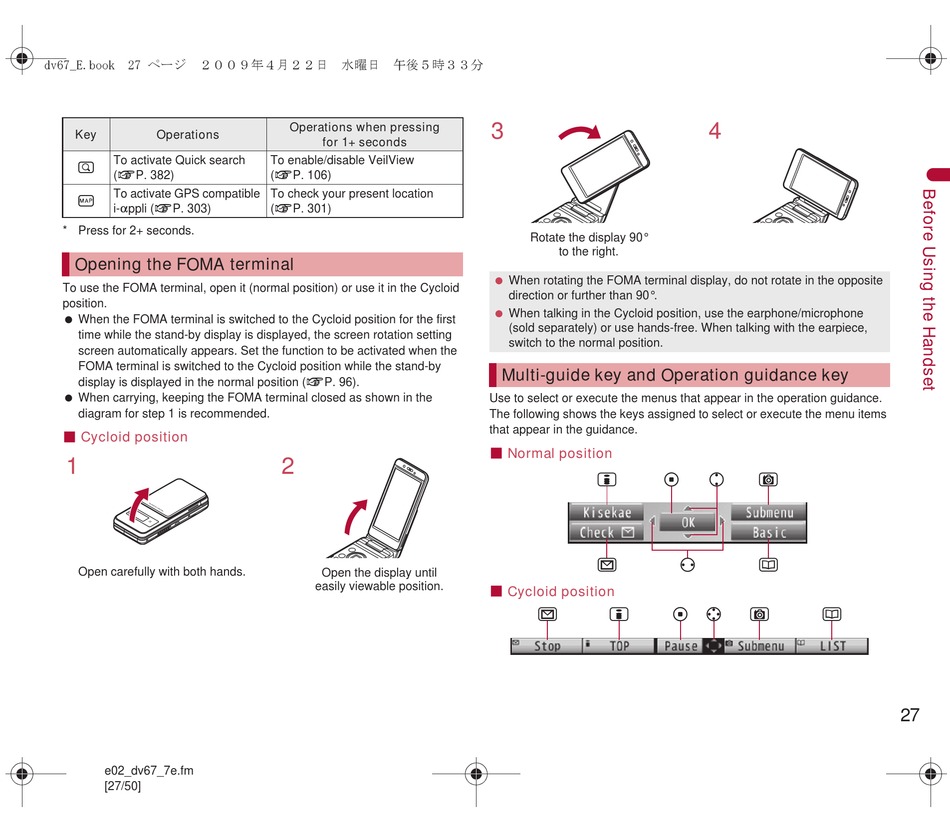

Docomo SH-07A Instruction Manual page 19

Key Operations
To activate Quick search
$
(nP. 382)
To activate GPS compatible
y
i-appli (nP. 303)
* Press for 2+ seconds.
Opening the FOMA terminal
To use the FOMA terminal, open it (normal position) or use it in the Cycloid
position.
When the FOMA terminal is switched to the Cycloid position for the first
time while the stand-by display is displayed, the screen rotation setting
screen automatically appears. Set the function to be activated when the
FOMA terminal is switched to the Cycloid position while the stand-by
display is displayed in the normal position (nP. 96).
When carrying, keeping the FOMA terminal closed as shown in the
diagram for step 1 is recommended.
■ Cycloid position
1
Open carefully with both hands.
Operations when pressing
for 1+ seconds
To enable/disable VeilView
(nP. 106)
To check your present location
(nP. 301)
2
Open the display until
easily viewable position.
3
Rotate the display 90°
to the right.
When rotating the FOMA terminal display, do not rotate in the opposite
direction or further than 90°.
When talking in the Cycloid position, use the earphone/microphone
(sold separately) or use hands-free. When talking with the earpiece,
switch to the normal position.
Multi-guide key and Operation guidance key
Use to select or execute the menus that appear in the operation guidance.
The following shows the keys assigned to select or execute the menu items
that appear in the guidance.
Normal position
■
i t
m
■ Cycloid position
m i
4
u C
v a
t w C a
27
