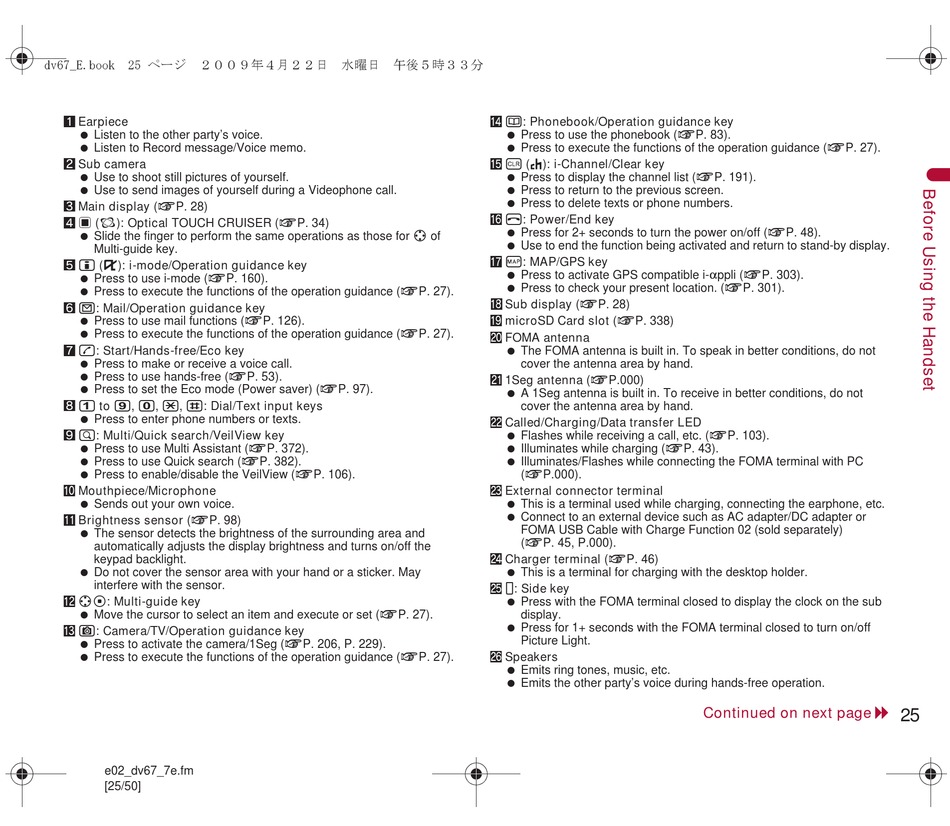

1 Earpiece
Listen to the other party's voice.
Listen to Record message/Voice memo.
2 Sub camera
Use to shoot still pictures of yourself.
Use to send images of yourself during a Videophone call.
3 Main display (nP. 28)
4 , (;): Optical TOUCH CRUISER (nP. 34)
Slide the finger to perform the same operations as those for w of
Multi-guide key.
5 i (,): i-mode/Operation guidance key
Press to use i-mode (nP. 160).
Press to execute the functions of the operation guidance (nP. 27).
6 m: Mail/Operation guidance key
Press to use mail functions (nP. 126).
Press to execute the functions of the operation guidance (nP. 27).
7 s: Start/Hands-free/Eco key
Press to make or receive a voice call.
Press to use hands-free (nP. 53).
Press to set the Eco mode (Power saver) (nP. 97).
8 1 to 9, 0, *, #: Dial/Text input keys
Press to enter phone numbers or texts.
9 $: Multi/Quick search/VeilView key
Press to use Multi Assistant (nP. 372).
Press to use Quick search (nP. 382).
Press to enable/disable the VeilView (nP. 106).
a Mouthpiece/Microphone
Sends out your own voice.
b Brightness sensor (nP. 98)
The sensor detects the brightness of the surrounding area and
automatically adjusts the display brightness and turns on/off the
keypad backlight.
Do not cover the sensor area with your hand or a sticker. May
interfere with the sensor.
c wt: Multi-guide key
Move the cursor to select an item and execute or set (nP. 27).
d C: Camera/TV/Operation guidance key
Press to activate the camera/1Seg (nP. 206, P. 229).
Press to execute the functions of the operation guidance (nP. 27).
e a: Phonebook/Operation guidance key
Press to use the phonebook (nP. 83).
Press to execute the functions of the operation guidance (nP. 27).
f c (J): i-Channel/Clear key
Press to display the channel list (nP. 191).
Press to return to the previous screen.
Press to delete texts or phone numbers.
g H: Power/End key
Press for 2+ seconds to turn the power on/off (nP. 48).
Use to end the function being activated and return to stand-by display.
h y: MAP/GPS key
Press to activate GPS compatible i-appli (nP. 303).
Press to check your present location. (nP. 301).
i Sub display (nP. 28)
j microSD Card slot (nP. 338)
k FOMA antenna
The FOMA antenna is built in. To speak in better conditions, do not
cover the antenna area by hand.
l 1Seg antenna (nP.000)
A 1Seg antenna is built in. To receive in better conditions, do not
cover the antenna area by hand.
m Called/Charging/Data transfer LED
Flashes while receiving a call, etc. (nP. 103).
Illuminates while charging (nP. 43).
Illuminates/Flashes while connecting the FOMA terminal with PC
(nP.000).
n External connector terminal
This is a terminal used while charging, connecting the earphone, etc.
Connect to an external device such as AC adapter/DC adapter or
FOMA USB Cable with Charge Function 02 (sold separately)
(nP. 45, P.000).
o Charger terminal (nP. 46)
This is a terminal for charging with the desktop holder.
p &: Side key
Press with the FOMA terminal closed to display the clock on the sub
display.
Press for 1+ seconds with the FOMA terminal closed to turn on/off
Picture Light.
q Speakers
Emits ring tones, music, etc.
Emits the other party's voice during hands-free operation.
Continued on next page
