5.1.2 FUS380 and FUE380 preset output B settings

Output B, terminals 66/67:
SITRANS FUS380 and FUE380

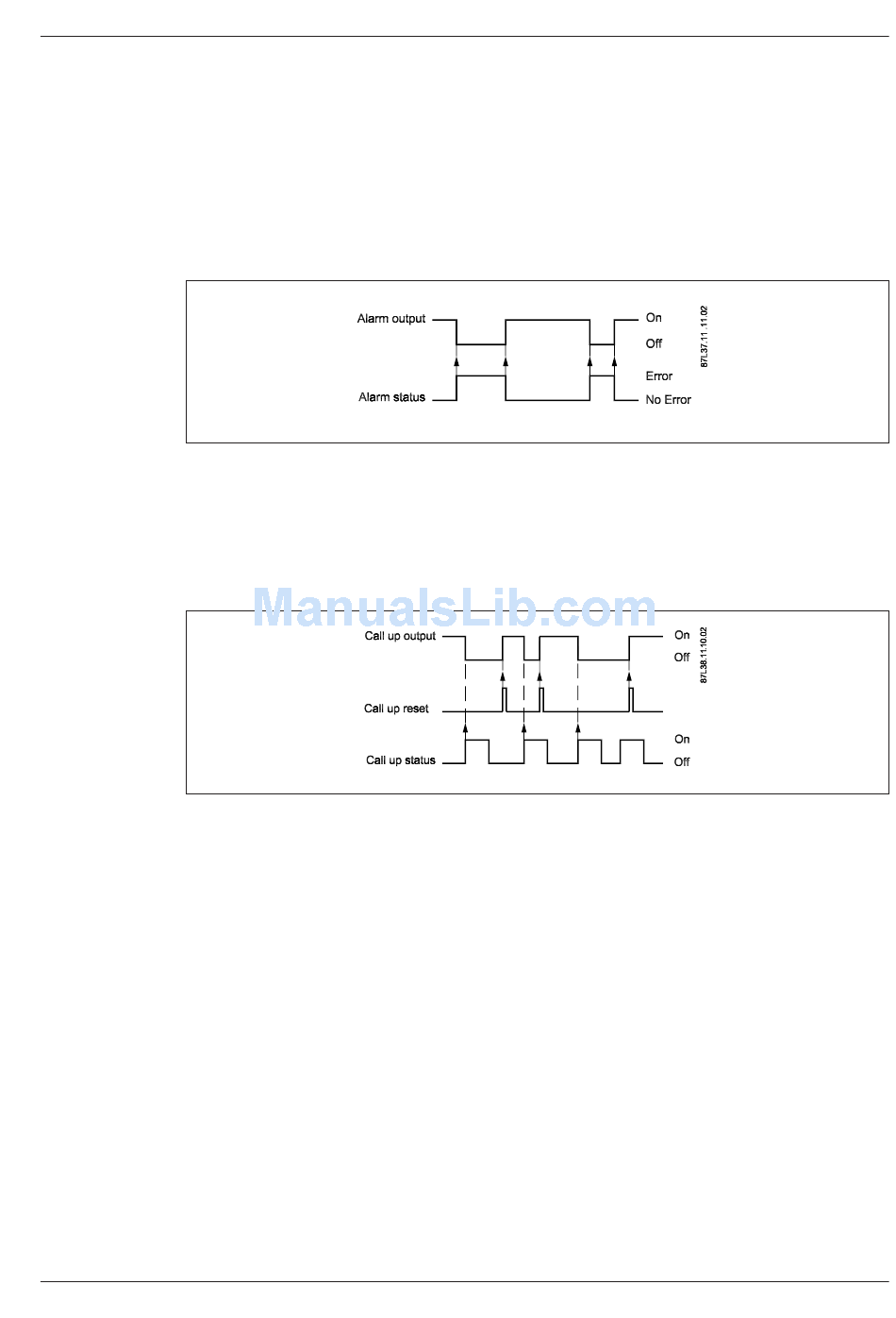

Preset to alarm indication - see Fig. 1:
Example: If track 1 is not measuring, a „triangle" alert appears on the display. The failure code
„F1" appears in display menu 4, and the relay output terminals switch to „off".
Fig. 1
Call up indication - see Fig. 2:
The call up output is active until manually reset by use of PDM* program. The call-up
function is also activated when alarm output function is activated.
* SIMATIC PDM - Process Device Manager, see accessories / spare parts in catalogue FI01.
Fig. 2
SFIDK.PS.022.Q5.02
