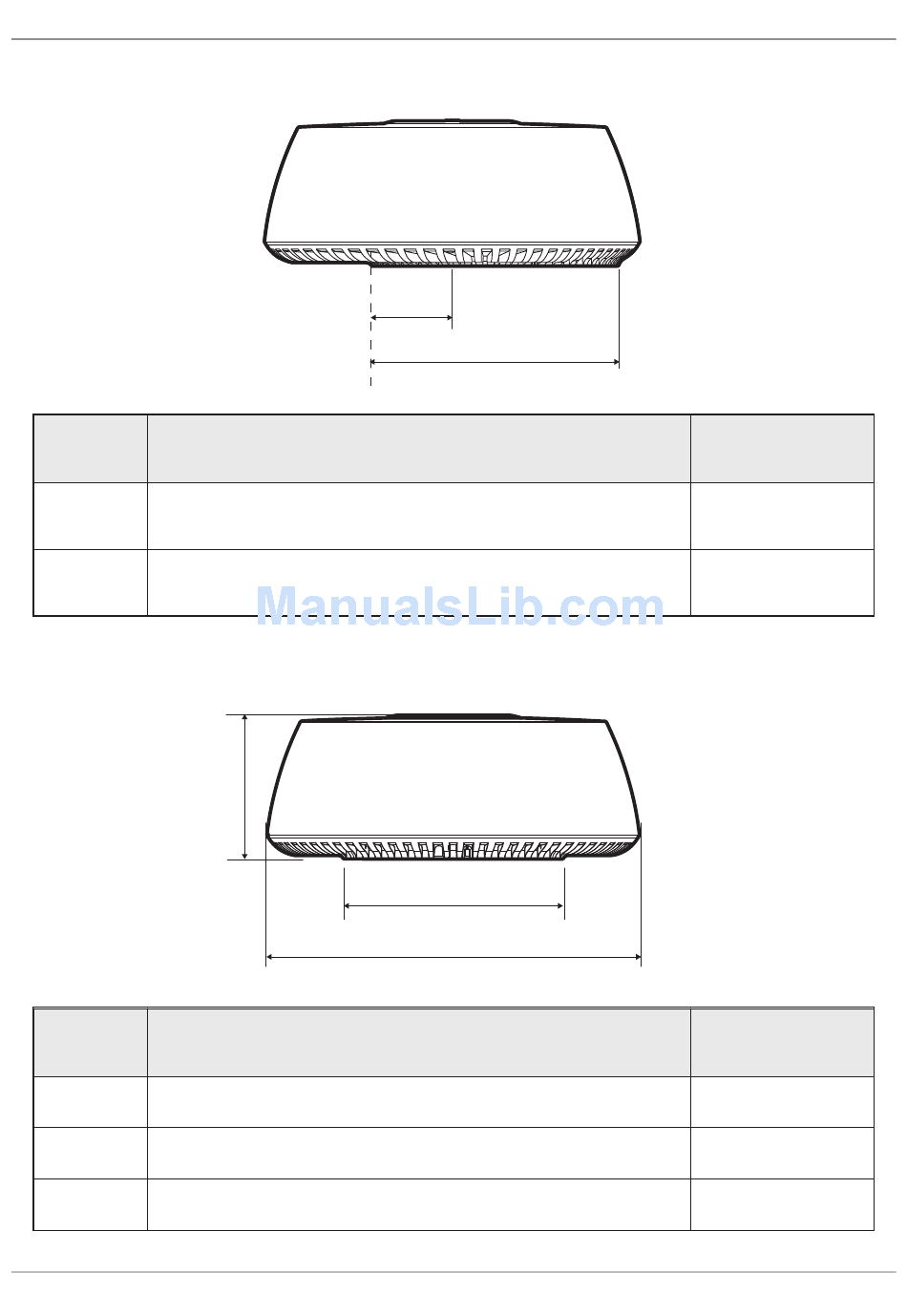

Radar Scanner Dimensions
Dimension Description
Distance from the centerline of the Radar scanner to the front
A
of the mounting base.
Distance from the rear of the mounting base to the front of the
B
mounting base.
Dimension Description
C Height of Radar scanner.
D Mounting base width (rear of unit).
E Width of Radar scanner.
Specifications
Radar Scanner Dimensions - Side View
Radar Scanner Dimensions - Rear View
C
A
B
D
E
30
Measurement
4.57 in (116 mm)
13.95 in (355 mm)
Measurement
8.25 in (209.5 mm)
12.58 in (319.5 mm)
21.30 in (541 mm)
