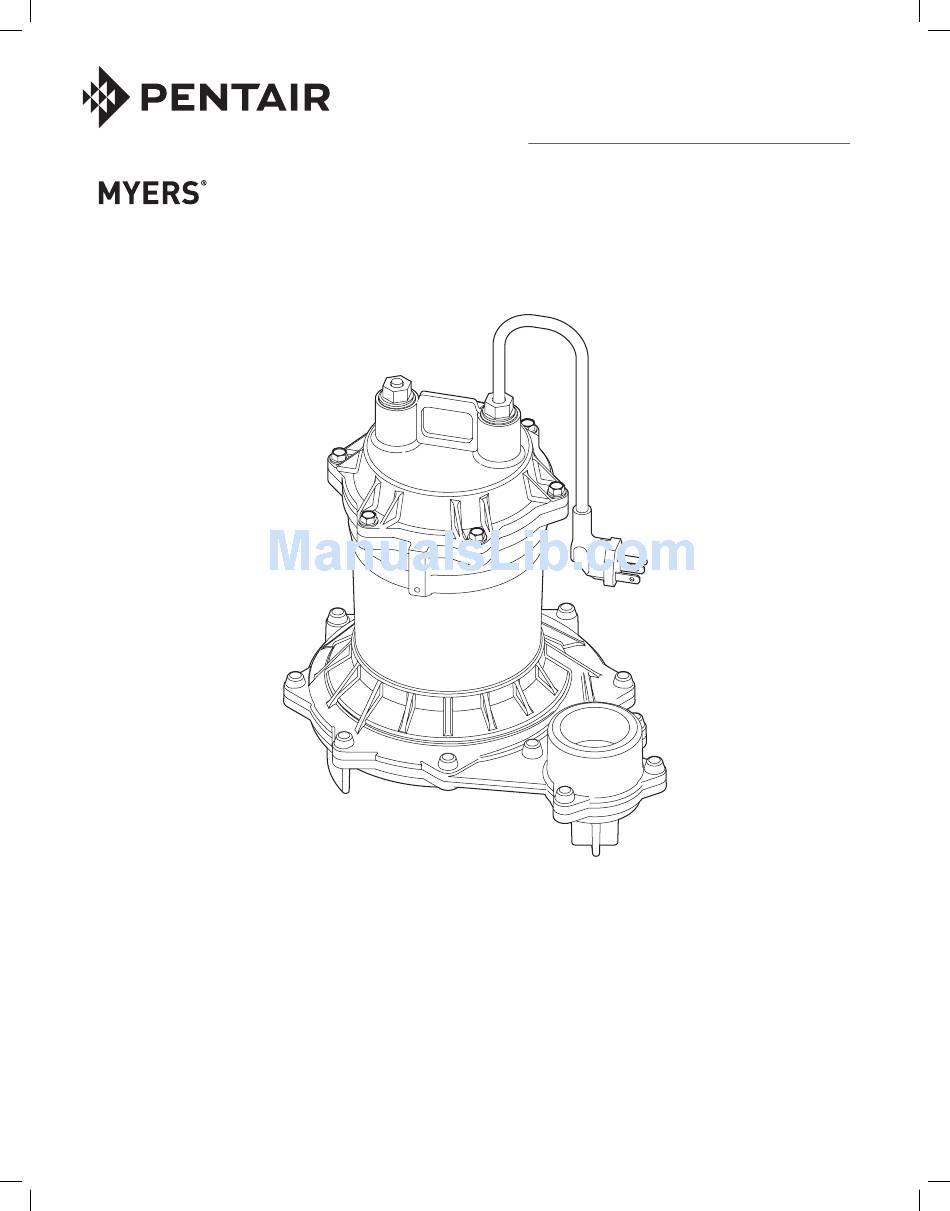

OWNER'S MANUAL
Submersible Effluent Pumps
ME40 / ME40AG Series
Installation/Operation/Repair Parts
6479 1111
For further operating, installation or
maintenance assistance:
Call 1-888-987-8677
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.FEMYERS.COM
PH: 888-987-8677
23833A245 (10/26/16)
© 2016 Pentair plc. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MYERS ME40A-11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pentair MYERS ME40A-11

  • Page 1 OWNER’S MANUAL Submersible Effluent Pumps ME40 / ME40AG Series Installation/Operation/Repair Parts 6479 1111 For further operating, installation or maintenance assistance: Call 1-888-987-8677 293 WRIGHT STREET, DELAVAN, WI 53115 WWW.FEMYERS.COM PH: 888-987-8677 23833A245 (10/26/16) © 2016 Pentair plc. All Rights Reserved.
  • Page 2: Important Safety Instructions

    Important Safety Instructions When used in effluent dosing or S.T.E.P. applications, the pump must be installed in a separate tank or SAVE THESE INSTRUCTIONS - This manual contains compartment at the discharge side of the septic tank. important instructions that should be followed during NOTICE Never install the pump in the main tank where installation, operation, and maintenance of the product.
  • Page 3: Installation

    Motor Type On all duplex units or simplex installations with additional options like high water alarm, the power cord The motors used in the ME40/ME40AG pumps are plug must be cut off and wired into a control panel or pressed into the cast iron housing and surrounded by into a sealed junction box if used in wet sump or basin.
  • Page 4 Piping Piping must not be smaller than pump discharge. The pump is designed to operate partially or completely submerged in effluent liquids and pump semi-solid fluids up to 3/4” (51mm) in diameter. When installed in an effluent system, the pipe must be capable of handling semi-solids of at least 3/4”...
  • Page 5: Operation

    Screen Winding Locked Max. Model Speed Volts Resistance Rotor ME40AG pumps have a suction screen included in Amps in Ohms Amps the packaging. To secure the screen in place use two ME40 12.0 16.0 screws (provided). Screen installation, maintenance, and 1550 cleaning is the responsibility of the pump owner.
  • Page 6: Maintenance General

    Maintenance 5. Remove the rotating portion (carbon) of the seal with pliers. Pry out the stationary portion (ceramic) with General a pair of slotted screwdrivers to remove from volute Risk of electric shock. Can shock, burn casing. Discard the old seal assembly parts. or kill.
  • Page 7: Troubleshooting Chart

    5. Lay pump on its side. Place a flat screwdriver in the 12. Check that the impeller turns freely. slot in the bottom of the shaft and turn the impeller 13. Guide the four motor wires up through a common counterclockwise to remove it from the shaft.
  • Page 8 Typical Section Drawing For ME40 Series Shaded Pole Motor 6483 1111...
  • Page 9 Typical Section Drawing For ME40AG Series PSC Motor 6484 1111...
  • Page 10: Repair Parts

    Repair Parts Ref. Description Qty. Part Number Ref. Description Qty. Part Number Plug, nut (manual only) 24448A000 Seal, shaft 21607A015 Washer (manual only) 05030A213 Screw, machine, flat head 07597A030 Plug, connector (manual only) 24449A000 Case, volute, upper half 25306D000 Cord, electric See Chart Screws, self tap #10 x 3/4 05910A012...
  • Page 11: Limited Warranty

    Warranty Limited Warranty Myers warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free ® from defects in material and workmanship for the Warranty Period shown below. Warranty Period Product whichever occurs first: Jet pumps, small centrifugal pumps, submersible pumps and 12 months from date of original installation, related accessories...
