GE Multilin 345 Instruction Manual page 72

SOFTWARE SETUP
3–18

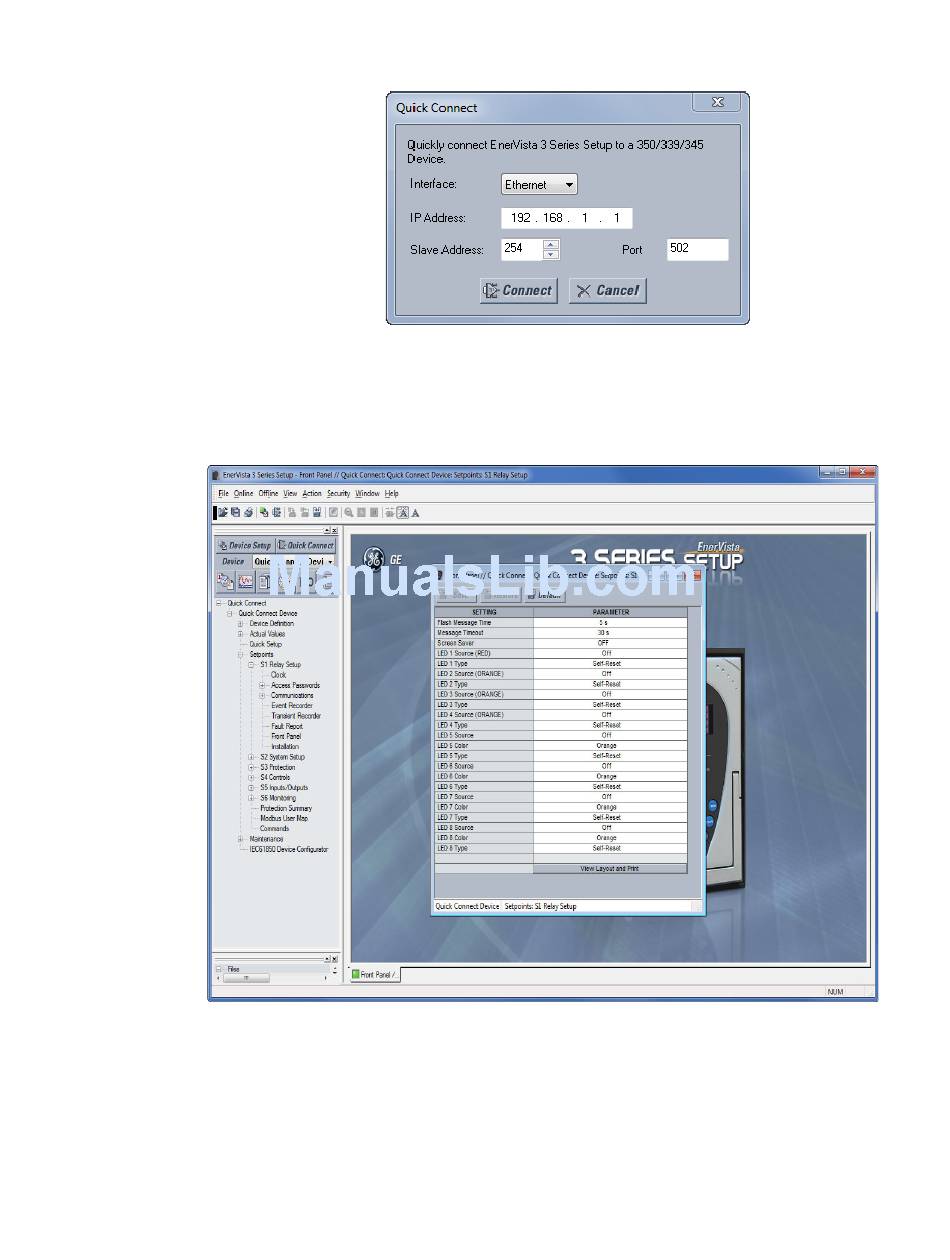

As indicated by the window, the "Quick Connect" feature can quickly connect the EnerVista
3 Series Setup software to a 345 front port if the USB is selected in the interface drop-down
list. Select "SR3 Relay" and press the Connect button. Ethernet can also be used as the
interface for Quick Connect as shown above.
When connected, a new Site called "Quick Connect" will appear in the Site List window.
The 345 Site Device has now been configured via the Quick Connect feature for either USB
or Ethernet communications. Proceed to Connecting to the Relay below, to begin
communications.
345 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL
CHAPTER 3: INTERFACES
