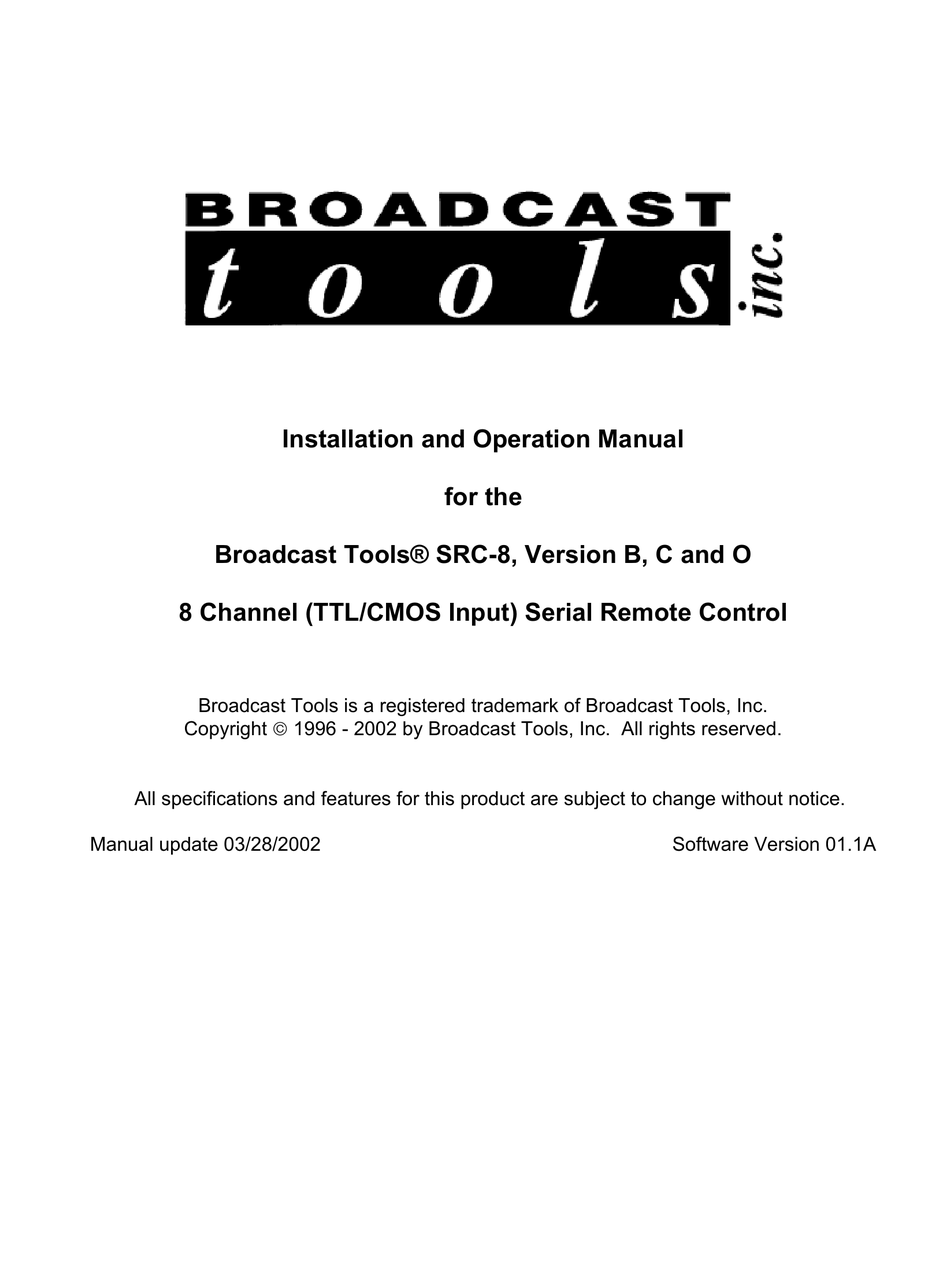

Installation and Operation Manual
for the
Broadcast Tools® SRC-8, Version B, C and O
8 Channel (TTL/CMOS Input) Serial Remote Control
Broadcast Tools is a registered trademark of Broadcast Tools, Inc.
Copyright 1996 - 2002 by Broadcast Tools, Inc. All rights reserved.
All specifications and features for this product are subject to change without notice.
Manual update 03/28/2002
Software Version 01.1A
Advertisement
Table of Contents
Related Manuals for Broadcast Tools SRC-8 B
Summary of Contents for Broadcast Tools SRC-8 B
- Page 1 8 Channel (TTL/CMOS Input) Serial Remote Control Broadcast Tools is a registered trademark of Broadcast Tools, Inc. Copyright 1996 - 2002 by Broadcast Tools, Inc. All rights reserved. All specifications and features for this product are subject to change without notice.
- Page 2 Broadcast Tools® SRC-8, 8 Channel Serial Remote Control TABLE OF CONTENTS Introduction Safety Information Who to Contact for Help Installation Jumper Set-up Table Modem Configuration 6 – 7 Specification Warranty Schematic Component Layout Modular Adapter table Broadcast Tools® SRC-8, Serial Remote Control...
- Page 3 Only qualified personnel should install Broadcast Tools® products. Incorrect or inappropriate use and/or installation could result in a hazardous condition. Broadcast Tools® products, as with any electronic device, can fail without warning. Do not use this product in applications where a life threatening condition could result due to failure.
- Page 4 Broadcast Tools® SRC-8, 8 Channel Serial Remote Control The Broadcast Tools® SRC-8 A/B/C/O, Serial Remote Control provides the following features. Version “A” has Relays on one end and inputs on the other, while version “B” is equipped with inputs and outputs on each end.
- Page 5 Broadcast Tools® SRC-8, 8 Channel Serial Remote Control Jumper Set-up J1 through J3 Installed J4 removed J5 through J8 Installed J9 Installed, on one end ONLY. J10, J11, J12 Removed. J13 through J16 follow the chart below (Baud Rate) Baud Rate Selection in any MODE (J13 - J16)
- Page 6 Broadcast Tools® SRC-8, 8 Channel Serial Remote Control Courier Modems in Leased Line Async Model It is always best to bench test a leased line configuration. It is much easier to make configuration changes when the modems are connected to each other in the same room rather than when they two miles apart.
- Page 7 Broadcast Tools® SRC-8, 8 Channel Serial Remote Control SPECIFICATIONS Serial: High integrity data format, baud rates adjustable from 600 to 115K, 8-N-1. RS- 232C. This spec is for both units. (Optional RS-485). Logic: Flash Microprocessor. Relays: Sealed relays with LED indicators on unit, spst contacts.
- Page 8 EXCLUSIVE REMEDIES If Broadcast Tools is notified of in writing of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned in to Broadcast Tools in accordance with Broadcast Tools’...
