SECTION 2 GETTING TO KNOW YOUR ARMOR X7 PAGE 44
De s k Do c k
The X7 desk dock is designed to fit on your desktop without taking up a lot of space. It is made
of light-weight but rugged plastic and houses connectors for 3 USB ports, 2 GPIO ports, an
Ethernet port, an RS-232 serial port and 5 VDC external power. The X7 slips easily into the
cradle and locks into place with the spring-loaded top clamp. Just lift up on the clamp slightly to
release the tablet.

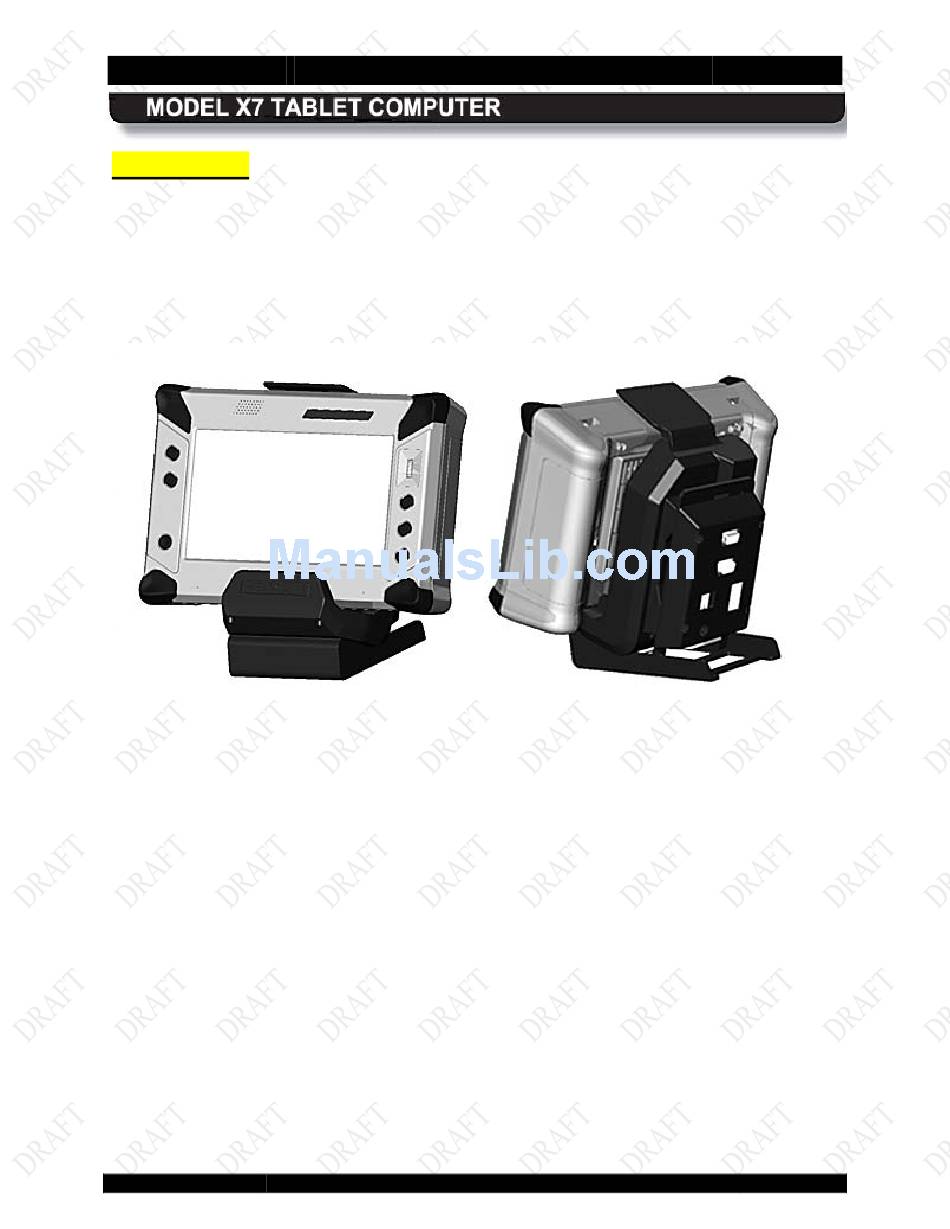

Figure 14. X7 Desk Dock

9711-26400-0001 EXPORT CONTROLLED – SEE PAGE 3 Rev -
