MXX-23FRHC
Upright Chiller & Freezer
Service, Installation and Care Manual
Please read this manual completely before attempting to install or operate this equipment.
Notify carrier of damage! Inspect all components immediately.
IMPORTANT INFORMATION
READ BEFORE USE
PLEASE SAVE THESE INSTRUCTIONS!
121323
Advertisement
Related Manuals for Maxx Cold MXX-23FRHC
Summary of Contents for Maxx Cold MXX-23FRHC

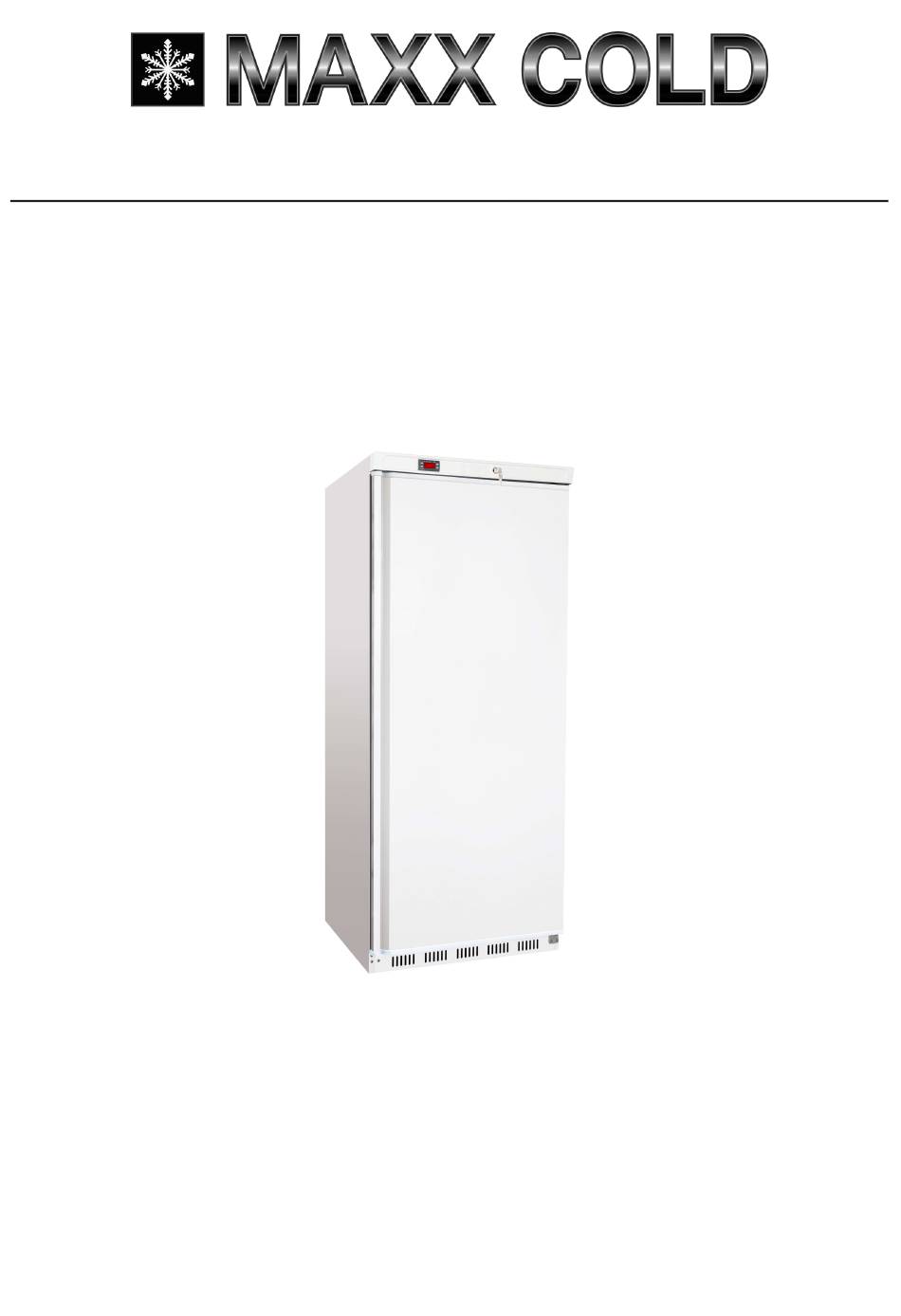

- Page 1 MXX-23FRHC Upright Chiller & Freezer Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
- Page 2 Service and Installation Manual COMMECIAL REFRIGERATOR SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. Our product instructions will be uploaded on our company official website. This is the Safety Alert Symbol.
- Page 3 Service and Installation Manual with the regulations of local authorities. The key for appliance electric box should be safe kept by qualified persons in order to avoid a hazard WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
-
Page 4: Table Of Contents
Service and Installation Manual CONTENTS RECEIVING & INSPECTING EQUIPMENT ....SPECIFICATIONS .... INSTALLATION ....4 OPERATION ..MAINTENANCE ..WIRING DIAGRAM ..All rights reserved. Reproduction without written permission is prohibited. SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand side near the top on the wall. -
Page 5: Specifications
Service and Installation Manual SPECIFICATION STORAGE SHIP CAPACITY CHARGE WEIGHT NEMA MODEL# V/Hz/Ph AMPS BTU/H Cu-ft PLUG MXX-23FRHC 4.23 115/60/1 1966 5-15P... -
Page 6: Installation
Service and Installation Manual INSTALLATION Location Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds. -
Page 7: Operation
Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. CAUTION Refrigerated cycle Refrigerators: During the refrigeration cycle, the evaporator fans wilt run continuously even when one or more doors are open. - Page 8 Service and Installation Manual 1.1 Function of LEDS 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
-
Page 9: Maintenance
Service and Installation Manual MAINTENANCE The unit must be turned OFF and disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. DANGER Refrigerators and Freezers The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. - Page 10 Service and Installation Manual MAINTENANCE Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner containing chlorides will damage the protective film of the stainless steel. Chlorides are also commonly found in hard water, salts, and household and industrial cleaners. If cleaners containing chlorides are used, be sure to rinse and dry thoroughly.
-
Page 11: Wiring Diagram
Service and Installation Manual WIRING DIAGRAM MODEL: MXX-23FRHC... - Page 12 Service and Installation Manual WIRING DIAGRAM MODEL: MXX-23FRHC...
