SERVICE, INSTALLATION AND
INSTRUCTION
MANUAL
For AUTHORIZED PARTS or TECHNICAL SERVICE, please contact:
1-877-368-2797 or
Service@MaxxHelp.com
3355 Enterprise Avenue, Suite 160, Fort Lauderdale, FL 33331 USA
Phone: (954) 202-7419 • Website: MaxximumFoodService.com
MXSH9.6S
MXSH19.4S
MXSH12.7S MXSH23.6S
MXSH15.9S MXSH30.0S

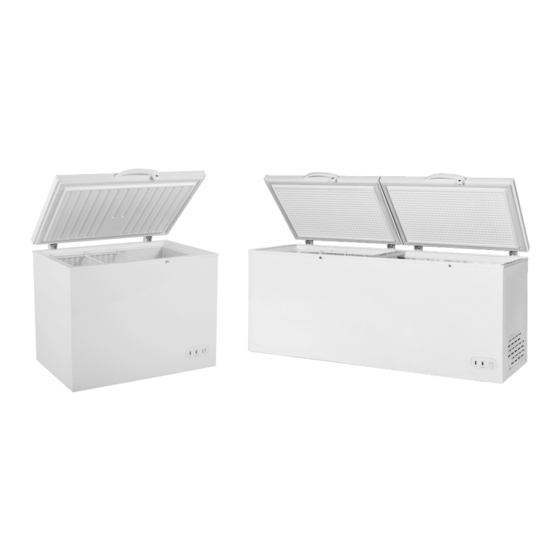

SELECT SERIES CHEST FREEZERS
PLEASE READ CAREFULLY
10/06/2017
Advertisement
Table of Contents
Related Manuals for Maxx Cold Select Series
Summary of Contents for Maxx Cold Select Series
- Page 1 For AUTHORIZED PARTS or TECHNICAL SERVICE, please contact: 1-877-368-2797 or Service@MaxxHelp.com 3355 Enterprise Avenue, Suite 160, Fort Lauderdale, FL 33331 USA Phone: (954) 202-7419 • Website: MaxximumFoodService.com MXSH9.6S MXSH19.4S MXSH12.7S MXSH23.6S MXSH15.9S MXSH30.0S SELECT SERIES CHEST FREEZERS PLEASE READ CAREFULLY 10/06/2017...
-
Page 2: Table Of Contents
Table of Contents SERIAL NUMBER INFORMATION ............................3 APPLIANCE SAFETY ................................4 IMPORTANT SAFEGUARDS ..............................4 DIMENSIONS ..................................6 TECHNICAL INFORMATION ..............................6 RECEIVING AND INSPECTING THE EQUIPMENT .........................8 INTRODUCTION ..................................8 COMPONENT INFORMATION ..............................8 APPLIANCE INSTALLATION ..............................9 Before Using Your Appliance ..............................9 Remove Packaging Materials ............................... 10 Location Requirements ................................ -
Page 3: Serial Number Information
VISIT OUR WEBSITE for the MOST UP-TO-DATE VERSION of this MANUAL. http://www.maxximumfoodservice.com/ Fill out and return the enclosed warranty postcard or visit our website/warranty registration. Keep the dated proof of purchase invoice which establishes the appliance's warranty period. SERIAL #:______________________________________________________________________________________________ #:_________________________________________ MODEL DATE OF PURCHASE:_________________________... -
Page 4: Appliance Safety
APPLIANCE SAFETY Your safety and the safety of others are very important. Always read and obey all safety messages in this manual. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. - Page 5 Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. Never clean appliance parts with flammable fluids. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 6: Dimensions
DIMENSIONS TECHNICAL INFORMATION Model MXSH9.6S MXSH12.7S MXSH15.9S In: Overall Dimension W*D*H 40.6 x 29.7 x 33.625 50 x 29.7 x 33.625 60.2 x 29.7 x 33.625 mm: Overall Dimension W*D*H 1030 x 755 x 854 1270 x 755 x 854 1530 x 755 x 854 Nominal Capacity 9.6 Cu Ft / 272 L... - Page 7 DIMENSIONS TECHNICAL INFORMATION Model MXSH19.4S MXSH23.6S MXSH30.0S In: Overall Dimension W*D*H 71.3 x 29.7 x 33.625 78.75 x 29.7 x 33.625 76 x 35.25 x 35.83 mm: Overall Dimension W*D*H 1810 x 755 x 854 2000 x 755 x 854 1930 x 895 x 910 Nominal Capacity 19.4 Cu Ft / 549 L...
-
Page 8: Receiving And Inspecting The Equipment
Appliance. It is recommended that this manual be kept in an accessible place. Every Maxx Cold machine is designed and manufactured according to the highest standards of safety and performance. It meets or exceeds the safety standard of UL 471 and sanitation standard NSF 7. -
Page 9: Appliance Installation
COMPONENT INFORMATION (cont.) MXSH9.6S / MXSH12.7S MXSH15.9S / MXSH19.4S HANDLE THERMOSTAT WITH LOCK COMPRESSOR COMPRESSOR CONTROL ON LIGHT ON LIGHT (TEMPERATURE THERMOSTAT CONTROL POWER (TEMPERATURE LIGHT POWER LIGHT CASTERS CASTERS MXSH23.6S/ MXSH30.0S HANDLES WITH LOCK THERMOSTAT COMPRESSOR CONTROL ON LIGHT (TEMPERATURE POWER LIGHT... -
Page 10: Remove Packaging Materials
APPLIANCE INSTALLATION (cont.) • Avoid locating the unit in damp, very humid or moist areas. • Before connecting the unit to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. •... -
Page 11: Leveling
APPLIANCE INSTALLATION (cont.) Leveling Ensure the floor where the unit is to be located is level, or shim the unit to level. Stabilizing All models are supplied with casters for your convenience. It is very important, however, that the cabinet be installed in a stable condition with the front wheels locked while in use. -
Page 12: Defrosting Your Freezer
OPERATION (cont.) Defrosting Your Freezer: • A proper defrost operation may require 3 to 6 hours. • When? For the most efficient operation and minimum energy consumption, defrost the freezer when the frost on the freezer walls is excessive or becomes ¼ inch thick as that ice or frost build up will negatively impact your appliance’s performance. •... -
Page 13: Cleaning And Maintenance
OPERATION (cont.) • It is most important that the food is frozen as quickly as possible. • If the loading amount is too large, the quality of freezing is reduced which affects the quality of frozen foods. • Do not attempt if there is ¼” of ice or frost build up on the compartment walls until after the appliance has been thoroughly defrosted and returned to its proper holding temperature. -
Page 14: Troubleshooting Guide
TROUBLESHOOTING GUIDE BEFORE CALLING FOR SERVICE If the unit appears to be malfunctioning, read through the OPERATION section of this manual first. If the problem persists, see Troubleshooting below. The problem may be something very simple that can be solved without a service call. TROUBLESHOOTING Fault Possible Cause... - Page 15 Fault Possible Cause Action Turn control to a warmer setting and allow several hours for Food temperature is too cold. Temperature control is set too cold. freezer temperature to stabilize. Freezer needs cleaning. Clean the freezer. See “Cleaning Your Freezer”. Freezer has an odor.
-
Page 16: Wiring Diagrams
WIRING DIAGRAMS MODEL：ALL MODELS THERMOSTAT MOTOR COMPRESSOR PROTECTOR ON LIGHT PLUG PTC STARTER POWER LIGHT CAPACITOR COMPRESSOR PARTS MXSH9.6S MXSH15.9S MXSH19.4S MXSH23.6S MXSH30.0S MXSH12.7S Item # Part Number Descriptions Qty / Unit DOOR GASKET-1 Gasket DOOR GASKET-2 Gasket DOOR GASKET-3 Gasket DOOR GASKET-4 Gasket...
