Operating Instructions
Please leave these instructions with the pump for future reference

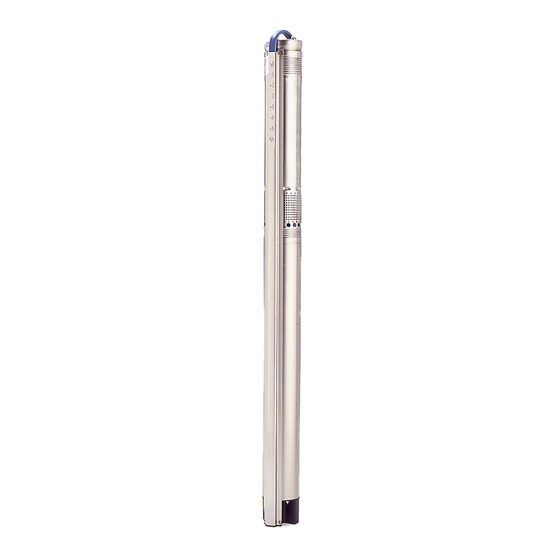

Environmental Pumps
Installation and
•
Efficient Permanent Magnet
Motor
•
High Starting Torque
•
Soft Start
(2 seconds to reach maximum
rpm, and maximum pressure)
•
Built-in "Smart" Motor
Protection with automatic
restart
•
Communication Through the
Redi-Flo3 Status Box
•
Integrated Protection Against
Adverse Conditions
•
Environmental Materials of
Construction
SQE-NE
Advertisement
Table of Contents
Related Manuals for Grundfos Redi-Flo3
Summary of Contents for Grundfos Redi-Flo3
-
Page 1: Operating Instructions
• Built-in "Smart" Motor Protection with automatic restart • Communication Through the Redi-Flo3 Status Box • Integrated Protection Against Adverse Conditions • Environmental Materials of Construction Please leave these instructions with the pump for future reference... -
Page 2: Limited Warranty
LIMITED WARRANTY Products manufactured by GRUNDFOS are warranted to the original user only to be free of defects in material and workmanship for a period of 18 months from date of installation, but not more than 24 months from date of manufacture. GRUNDFOS' liability under this warranty shall be limited to repairing or replacing at GRUNDFOS' option, without charge, F.O.B. -
Page 3: Pre-Installation Checklist
If the pump is to be installed in a new well then the well should be fully developed and bailed or blown free of cuttings and sand. The construction of the GRUNDFOS Redi-Flo3 submersibles makes it resistant to abrasion; however, no pump made of any material can forever withstand the destructive wear that occurs when constantly pumping sandy water. -
Page 4: Motor Preparation
GRUNDFOS MSE3-NE submersible motors have water-lubricated slide bearings. No additional lubrication is required. The submersible motors are factory-filled with a special GRUNDFOS motor liquid (type SML 2), which will protect the motor fluid down to -4°F(20°C) and to prevent the growth of bacteria. The level of motor fluid is important for the operating life of the bearings and consequently the life of the motor. - Page 5 Pre-Installation Checklist To refill the motor, proceed as follows: 1. Remove the cable guard and separate Filling plug the pump end from the motor. 2. Place the motor in vertical position with an inclination of approx. 10°. 3. Remove the filling plug using a screwdriver or a similar tool.
-
Page 6: Installation Procedures
RMS instrument. If other instruments are used, the value measured will differ from the actual value. The Redi-Flo3 pumps can be connected to a Redi-Flo3 status box. Note: The pump must never be connected to a capacitor or to another type of control box other than a Redi-Flo3 status box. -
Page 7: Wiring Diagram
Single-Phase 2-wire Wiring Diagram for GRUNDFOS Motors 10 2- Wire Pump Quick Disconnect with Ground Pressure Switch Black Black Green Pump & Motor A capacitor or control box should NEVER be connected to a Redi-Flo3 submersible pump. Fig. 5 Page 5... -
Page 8: Cable Sizing
4280 5240 11. Motor Cable Redi-Flo3 pumps are specifically designed to be used with Grundfos SQE- NE Tefzel motor leads. Standard SQE-NE Tefzel motor leads are available between 25 and 300 foot lengths in 5 foot increments. Custom lengths longer than 300 feet are available in 10 foot increments up to 600 feet from the factory. - Page 9 Installation Procedures General Note: Do not lower or lift the pump by means of the motor cable. The loose data plate supplied with the pump should be placed close to the installation site. 12. Installing the cable plug to the motor To install the cable plug, proceed as follows: 1.Check that the cable is of the correct type, cross-section and length.
-
Page 10: Installing The Pump
Installation Procedures 14. Piping • The pump should only be gripped by the two flats at the top of the pump, as shown in fig. 9. • The pump can be installed vertically or horizontally. During operation, the pump must always be completely submerged in water. -
Page 11: Generator Operation
17. Generator Operation • It is OK to operate the Redi-Flo3 with a generator. The generator must be sized 10% above the pumps P1 (Input Power) values. -
Page 12: Operating The Pump
Operating the Pump 18. Starting the Pump for the First Time When the pump has been connected correctly, the pump should be started with the discharge valve closed approximately one-third. Due to the soft start feature, the pump takes approximately 2 seconds to develop full pressure. - Page 13 - overtemperature. MSE 3NE Motors: Note: To set Dry-Run limit in the MSE-NE pumps, you need to connect the pump to a Redi-Flo3 status box. Refer to Redi-Flo3 status box I&O for proper connections. To set Dry-Run protection, follow these steps: 1.
-
Page 14: Assembly Of Pump And Motor
Assembly/Disassembly 19. Assembly of Pump and Motor To assemble pump end and motor, proceed as follows: 1. Place the motor horizontally in a vice and tighten it, see fig. 12. 2. Grease the motor shaft end with a vegetable based grease. 3. -
Page 15: Troubleshooting
Troubleshooting Fault Cause 1. The pump does not run a. The fuses are blown b. The GFI circuit breaker has tripped. c. No electricity supply. d. The motor protection has cut off the electricity supply due to overload. e. The drop cable is defective. f. - Page 16 Troubleshooting Remedy Replace the blown fuses. If the new fuses blow too, check the electrical installation and the drop cable. Reset the circuit breaker. Contact the Electricity provider. Check for motor/pump blockage. Repair/replace the pump/cable. Check the electricity supply Open the valve See item 3a.
- Page 17 1. Use the local public or private waste collection service. 2. If such waste collection service does not exist or cannot handle the materials used in the product, please deliver the product or any hazardous materials from it to your nearest GRUNDFOS company or service center. Page 15...
-
Page 18: Technical Data
Available in 5 ft. increments from 25ft.- 300ft. Motor Liquid: Type SML 2 pH Values: Redi-Flo3: 5 to 9 Liquid Temperature: The temperature of the pumped liquid must not exceed 104°F. Note: if liquids with a viscosity higher than that of water are to be pumped,... - Page 19 Technical Data PUMP TYPE VOLTAGE MAX. AMPS 5SQE03A-90-NE 1/3 A 230V/115V 3.9/7.8 5SQE03A-120-NE 1/3 A 230V/115V 3.9/7.8 5SQE05A-170-NE 1/2 A 230V/115V 4.9/9.8 5SQE05B-210-NE 1/2 B 230V 5SQE05B-250-NE 1/2 B 230V 5SQE07B-290-NE 3/4 B 230V 5SQE10C-340-NE 230V 5SQE10C-380-NE 230V 5SQE10C-420-NE 230V 10SQE03A-100-NE 1/3 A 230V/115V...
- Page 20 Technical Data ACCESSORIES PRODUCT PART NUMBER CU 300 96422776 Flow Sleeve 96037505 Grease 96037562 Grundfos SPP1 Potentiometer 625468 RediFlo3 Motor Leads - available in 5ft. increments See price list 25ft 96037428 50ft 96037429 75ft 96037430 100ft 96037431 125ft 96037432 150ft...
