Before You Start
Below is a list of the items included with purchase. Carefully
unpack and inspect each item.
•
1x IP65 Voltage Adapter
•
3x Screw M3 X 12 mm
•
2x Coupler F/F 4 mm
•
2x Alligator Clips (blue)
•
1x Wire Clip Set
To prepare the Adapter for installation:
1.
Attach the cable marker clips to the test leads for the three
phases and neutral N at the plug end.
2.
Use the markers A, B, C, N or 1, 2, 3, N as appropriate for
the region. See Figure 1.
Installation
1.
Insert the Adapter into the input terminals of the Logger.
Apply force to the Adapter body only. Do not push on
the test leads.
2.
Attach the Adapter with the three screws (M3 x 12 mm).
See Figure 2.
3.
Use the mains adapter MA-C8 and the included couplers to
connect the Logger to a mains outlet. See Table 2.

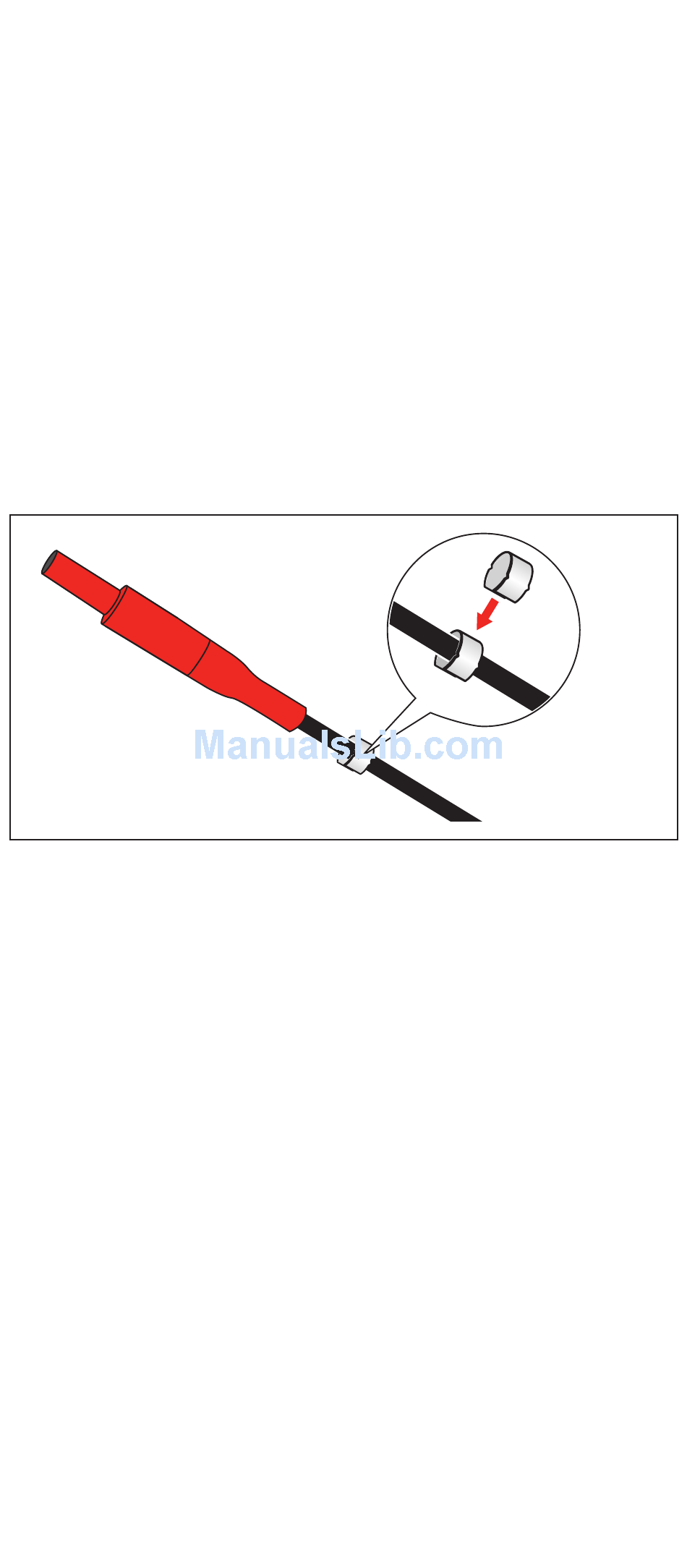

Figure 1. Cable Marker Clips
Note
