- Page 1 USB User Manual...
-
Page 2: Table Of Contents
USB Content I Certificate of conformity ..............1 1 isCAN USB ....................2 2 Installation and commissioning ............3 2.1 Installation of the driver software ..........3 2.2 Installation of the Hardware .............4 2.3 Configuration and Commissioning ........5 2.3.1 Add a device ................6 2.3.2 Empty-Slot ................7... -
Page 3: I Certificate Of Conformity
We hereby declare, that the device indicated below in its design and construction, is in conformity with the essential safety and health requirements of the EC Directive 2014/30/EU. Changes or modifications not approved by Thorsis Technologies void the validity of the declaration. Manufacturer: Thorsis Technologies GmbH Oststr. 18 39114 Magdeburg... -
Page 4: Iscan Usb

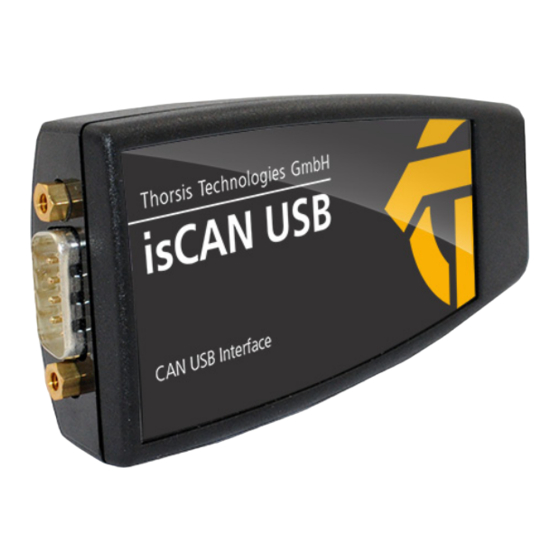

USB 1 isCAN USB The CAN dongle isCAN USB with the universal USB interface grants a fast ac- cess to any CAN/CANopen based network. The isCAN USB interface standard type supports the CAN specification 2.0A (11 bit ID) and 2.0B (29 bit ID). It is connected with a 9 pin D-Sub connector according to the CiA specification DS- 102. -
Page 5: Installation And Commissioning
USB 2 Installation and commissioning 2.1 Installation of the driver software The driver software must be installed before connecting the device. Otherwise, the operating system can not find the interface to the associated driver. The driver software package isCAN Multidriver contains a Dynamic Link Library (DLL) which allows the access to the firmware under the operating systems Windows XP, Vista and Windows 7, 8, 10. -
Page 6: Installation Of The Hardware
USB 2.2 Installation of the Hardware The Interface can be connected to the CAN/CANopen network with its D-Sub 9 pin connector directly. With the integrated USB cable the interface can be connected with the PC/notebook. Two LEDs indicate the actual operation mode. The green LED indicates that the CAN controller is powered up and running. -
Page 7: Configuration And Commissioning
USB 2.3 Configuration and Commissioning To ease the task of hardware configuration the confi- guration software isCAN Driver Configurator is provi- ded. It is installed in the Start Menu. This simple dialog based program allows the easy addition and removal of the CAN interfaces. -
Page 8: Add A Device
Press OK, then make your settings. Every isCAN USB adapter is identified by a serial num- ber. This number ensures that the software is commu- nicating with the correct hardware in case that there are more adapters attached to the PC simultaneously. -
Page 9: Empty-Slot
USB 2.3.2 Empty-Slot The empty device does not contain any resources. It serves as a substitute for device numbers not assig- ned. Using this devices enables a free enumeration of devices by inserting empty devices between the real ones. -
Page 10: Removal Of A Device
Test. It is installed in the Thorsis folder of the Start Menu. The following functions are provided by the application: Choice of configured interfaces (isCAN USB, isCAN PCI) Baudrate settings Transmisson of messages... - Page 11 USB © Last changed 2017-09-06 Thorsis Technologies GmbH +49.391.544.563-1000 Oststr. 18 +49.391.544.563-9099 39114 Magdeburg info@thorsis.com Germany www.thorsis.com...
