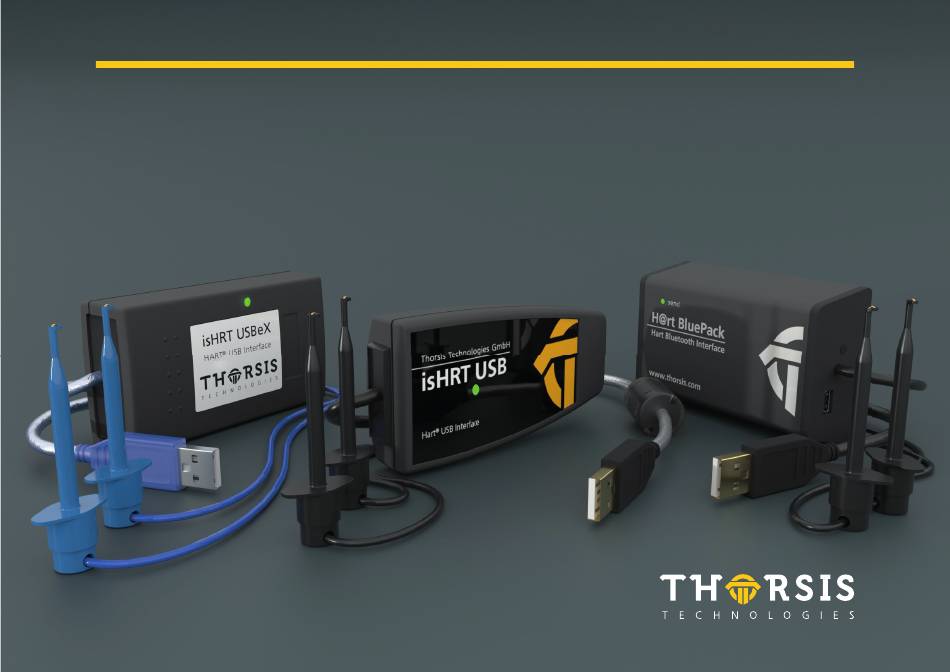

- Page 1 USB M A N UA L isHRT USBeX the H@rt BluePack...
- Page 2 EC-Directive 2014/34/EU. and health requirements of the EC-Directive 2014/30/EU. Changes or modifications not approved by Thorsis Technologies void the validity A TÜV CERT Certification Body has certified, that the device meets of the declaration.
-
Page 3: Table Of Contents
Table of Content ISHRT USB AND ISHRT USBEX – HART ON USB ... . 4 FDT COMMUNICATION-DTM ISHRT COMMDTM ..20 Technical details ........5 OFFLINE CONFIGURATION ISHRT COMMDTM . -
Page 4: Ishrt Usb And Ishrt Usbex - Hart On Usb

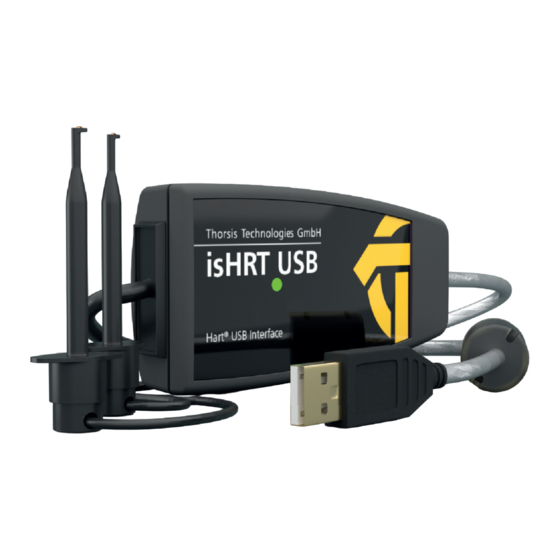

USB and isHRT USBeX – HART on USB The interface isHRT USB is designed to provide a communication link For the use in hazardous areas we deliver an intrinsic safe, ATEX between a desktop computer or PC notebook and the HART fi eld certifi ed version: isHRT USBeX. -
Page 5: Technical Details
Windows XP, Vista, Windows 7,8 & 10 Simatic PDM© Siemens, HCF-Server Emerson AMS Device Manager Compatible with PACTware Endress+Hauser FieldCare ABB Asset Vision Basic Delivery content USB-HART-Modem “isHRT USB” or ”isHRT USBeX”, HART-Driver, isHRT CommDTM, PACTware and documentation in German and English on CD. -
Page 6: The H@Rt Bluepack - Hart On Bluetooth / Usb
the H@rt BluePack – HART on Bluetooth / USB “the H@rt BluePack” is a versatile interface which supports wireless the interface in multi-master environments or in connection with (Bluetooth) and wired (USB) access to a HART network. It can be em- burst-mode slaves. -
Page 7: Technical Details
Technical details Interface the H@rt BluePack Bluetooth Modem WT11 (Bluegiga) HART Modem Chip DS 8500 Connector 2-pole current terminal / Mini-USB Transmission rate USB: 12Mbit/s; HART: 1200 Bit/s; Bluetooth: up to 2,1 Mbit/s Power supply 3 x AAA Batteries or USB-cable Size (WxDxH) in mm 84 x 54 x 26 Weight... -
Page 8: Operation Of The Unit
Operation of the unit Button Mini USB-Connector 2.3.1 Battery operation 2.3.1.1 Switch on the device • There is a button at the front of the device, which can be used to Switch off the device switch the device on. Switching on is signaled by the LED blinking 2.3.1.2 three times. -
Page 9: Installation Of The Driver Software
The actual operating system is detected automatically by the driver DLL. The configuration of the interface can be done with the configuration software isHRT Driver Configurator which is installed into the Thorsis Technologies directory of the Start Menu. Installation process: •... -
Page 10: Installation Of The Ishrt Commdtm
Installation of the isHRT CommDTM The operation of the software isHRT FDT requires the correct installation of the HART interface isHRT USB and isHRT USBeX respectively. The driver software delivered with our interface permits the access to the HART Firmware. -
Page 11: Installation Of The Hardware - Ishrt Usb
Installation of the hardware – isHRT USB The interface can be connected to the HART network with the pin 1. Instructions for Installation with a PLC Engineering test clips directly. With the integrated USB cable the interface can be station connected with the PC / notebook. -
Page 12: Installation Of The Hardware - Ishrt Usbex
Installation of the hardware – isHRT USBeX The interface can be connected to the HART network with the pin 2. Instructions for Installation with a 24 V power source test clips directly. With the integrated USB cable the interface can be connected with the PC / notebook. -
Page 13: Installation Of The Hardware - The H@Rt Bluepack
Installation of the hardware – the H@rt BluePack Bluetooth 1. Instructions for Installation with a PLC 1. Instructions for Installation with a PLC Engineering Engineering station station Slave Slave 2. Instructions for Installation with a 24 V power source 2. Instructions for Installation with a 24 V power source Engineering Engineering station... -
Page 14: Coupling The H@Rt Bluepack Via Bluetooth
Coupling the H@rt BluePack via Bluetooth To be able to use the H@rt BluePack, it must fi rst be coupled to the Click on “Add a Device” host computer. This step is necessary only once. First, insert the 3 (“Add a Bluetooth Device” in Windows 10) AAA batteries. - Page 15 Select the H@rt BluePack from the list. In the appropriate dialog box, enter the four-digit “key” of the device, located on the sticker at the front of the device. The device is ready for use as soon as you can read “Paired“ under the H@rt BluePack.
-
Page 16: Configuration And Commissioning
Confi guration and commissioning The confi guration software isHRT Driver Confi gurator is provided in order to adapt the DLL access to your hardware. It is installed in the Start Menu. This dialog based application allows the easy addition and removal of HART interfaces. It also checks the avail- able resources of the system. -
Page 17: Add A Usb Device
Add a USB device Please press the button “Add”, choose the device type you would like to add. Press “OK”, then make your settings. The device has a unique serial number for clear identifi cation. The number is located on the bottom of the case. The confi gura- tion software offers the possibility to search automatically for all attached devices and to detect their serial numbers. -
Page 18: Add A Bluetooth Device
Add a Bluetooth device When you add a Bluetooth device, you can choose between USB and Bluetooth connection. If you select a USB connection, you must enter the serial number or can let the program automatically search for a connected the H@rt-BluePack. -
Page 19: Add An Empty-Slot
Add an empty slot The empty device does not contain any resources. It serves as a substitute for device numbers not yet assigned. Using empty slots enables a free enumeration of devices by inserting empty devices between existing ones. Removal of a device Mark the device you wish to remove and press the button “Remove”. -
Page 20: Ishrt Test
The program searches for connected HART slaves. FDT Communication-DTM isHRT CommDTM The isHRT CommDTM is a CommDTM for the interfaces isHRT USB The software isHRT CommDTM can be integrated into any stand- and isHRT USBeX. The DTM offers communication access via the isH- alone frame application (e.g. -
Page 21: Offline Configuration Ishrt Commdtm
Offl ine confi guration isHRT CommDTM 11.1 Driver confi guration This dialog is used to select one of the connected HART communication interfaces of Thorsis. List of connected isHRT devices The table shows the properties of the found isHRT devices (HART communication interfaces). -
Page 22: Channel Configuration
11.2 Channel Confi guration The dialog is used to confi gure the channel. The following options are available. Primary Master The parameter Primary Master specifi es whether the HART master operates as the primary master or as a secondary master on the bus. -
Page 23: Connecting Devicedtms
11.3 Connecting DeviceDTMs When a DeviceDTM is connected to the isHRT CommDTM then an ActiveX is opened, that allows to set the tag and the slave address of the DeviceDTM. DTM ID This is the unique ID of the DeviceDTM from the frame application. -
Page 24: Online Configuration Of The Ishrt Commdtm
Online Confi guration of the isHRT CommDTM 12.1 Device List The list of connected devices displays the essential information about the devices on the HART bus. This information has the following meaning: Address The poll address of the device. State The State fi eld is used to display an icon, that refl... - Page 25 In Use The “Update List” button starts a new scan for devices on the HART The DTM/device is used in a communication connection. bus. The list will be dynamically updated during the scan whenever a device is found. During the scan, which usually takes some time to Hart Tag complete, the button “Stop Scan”...
-
Page 26: Changing Polling Address
12.2 Changing Polling Address This ActiveX can be used to change the poll address of a HART interface. This Menu is only available for Slaves without Device DTM. Slaves without Device DTM. Source address This is the current address of the device on the HART bus. The content of this fi eld is set automatically when the ActiveX is opened. -
Page 27: Changing Polling Address, Devicedtm Address And Tag
12.3 Changing Polling Address, DeviceDTM Address and Tag With the help of this ActiveX it is possible to change the address of a HART slave device together with the address of a connected DeviceDTM. This ActiveX is opened by the “Set Address” button in the device list ActiveX for list entries that represent devices with assigned DTMs. -
Page 28: Document History
Document History Version Date Description 04.12.18 initial version 22.11.19 new texts & images © last change on 22. November 2019 Thorsis Technologies GmbH +49 391 544 563-1000 Oststr. 18 +49 391 544 563-9099 39114 Magdeburg info@thorsis.com Germany www.thorsis.com...
