Thorsis Technologies isPro USBx12 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

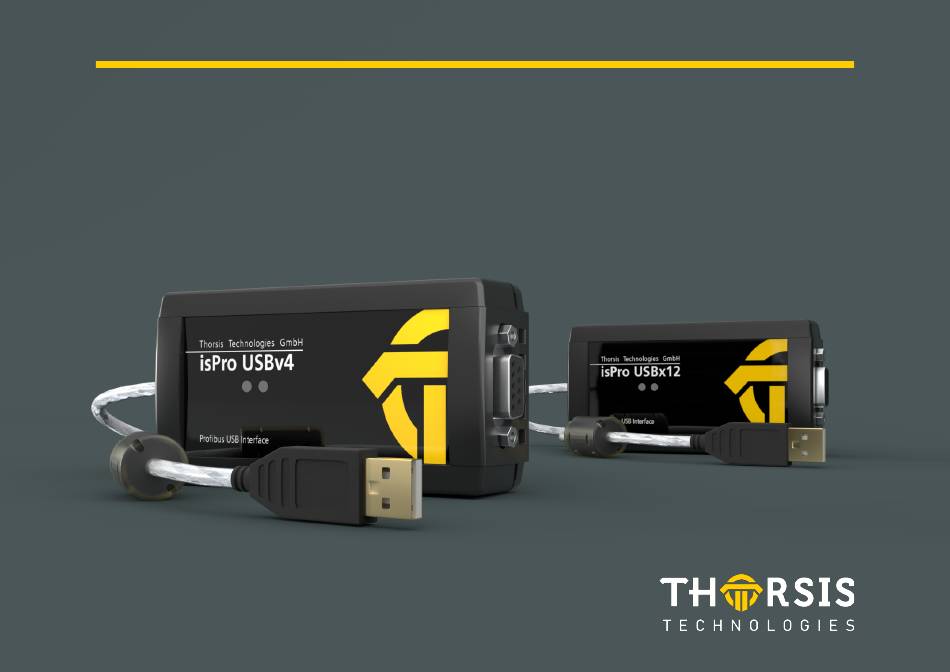

isPro USBx12
M A N UA L
isPro USBv4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the isPro USBx12 and is the answer not in the manual?

Questions and answers

Related Manuals for Thorsis Technologies isPro USBx12

Summary of Contents for Thorsis Technologies isPro USBx12

  • Page 1 USBx12 M A N UA L isPro USBv4...
  • Page 2 CHANGES OR MODIFICATIONS NOT APPROVED BY We hereby declare, that the devices indicated below in there design and construction, are in conformity with the essential safety THORSIS TECHNOLOGIES VOID THE VALIDITY OF THE and health requirements of the EC Directive 2014/30/EU. DECLARATION.

  • Page 3: Table Of Contents

    ISPRO USBX12 ........

  • Page 4: Ispro Usbx12

    USBx12 Desktop PCs as well as notebook devices without PROFIBUS inter- The interface supports the Master functionality of the PROFIBUS Stan- faces can be connected to PROFIBUS stations within seconds. Oper- dard DP (class 1 and 2), DP/V1 (class 2) with a high transmission rate of ational areas are mobile set up and configuration of field devices.

  • Page 5: Technical Details

    Windows XP, Vista, Windows 7, 8 and 10 Available software isPro CommDTM (FDT), isPro MultiServer (OPC) Delivery content PROFIBUS-USB-interface „isPro USBx12“, driver-, configuration- and test-software as well as documentation in German and English on CD. Extra: A wall mount for the USB adapter is available on request.

  • Page 6: Ispro Usbv4

    USBv4 The isPro USBv4 is the successor of isPro USBx12. It is compatible with the isPro USBx12. The isPro USBv4 is optionally available with an isFF/PA MAU media access converter, with which it can be connected to a PROFIBUS PA network.

  • Page 7: Technical Details

    Technical details Interface isPro USBv4 Controller Motorola Coldfire Flash 256 kByte 256 kByte Connector 1 RS-485 Fieldbus protocols PROFIBUS DP-(Kl. 1+ 2) und DP-V1- Master (Kl. 2), DP-Slave, FMS-Master, PROFIBUS PA (optionally) Transmission rate 9,6 kbit/s ... 12 Mbit/s (DP), 31,25 kbit/s (PA) Fieldbus supply 22 ...

  • Page 8: Installation And Commissioning

    Installation and commissioning Installation of the driver software The driver software must be installed before connecting the device. Otherwise, the operating system can not find the interface to the associated driver. The driver software delivered with our PROFIBUS interfaces permits the access to the PROFIBUS-Firmware under the operating systems Windows XP, Vista and Windows 7, 8 and 10 (32- und 64-Bit).

  • Page 9: Installation Of The Hardware

    Installation of the hardware The Interface can be connected to the PROFIBUS network with its While initializing or resetting the left LED flashes in red colour. D-Sub connector directly. With the USB cable the interface can be After the end of the initialization/reset process it should darken connected with the PC/notebook.

  • Page 10: Connection To Profibus Dp

    3.2.1 Connection to PROFIBUS DP Connection to PROFIBUS DP with isPro USBx12 or isPro USBv4.

  • Page 11: Connection To Profibus Pa

    3.2.2 Connection to PROFIBUS PA Connection to PROFIBUS PA with optional media converter only supported by isPro USBv4.
  • Page 12 Connection to an existing PA bus The adapter enables you to connect to an existing PA-Network via the signal lines PA+ and PA–. Connection of a single field device If you want to connect a single PROFIBUS PA Field device to the isPro USBv4 interface, the adapter for the bus offers another pin to supply the field device.

  • Page 13: Configuration And Commissioning

    Configuration and Commissioning To ease the task of hardware configuration the configuration software isPro Configurator is provided. It is installed in the Start Menu. This simple dialog based program allows the easy addition and removal of the isPro interfaces. It also checks the available resources of the system.

  • Page 14: Add A Device

    3.3.1 Add a device Please press the button “Add”, choose the device type you would like to add. Press OK, then make your settings. The USB interface possesses a serial number for clear identifica- tion. The number is located on the bottom of the case and stored internally.

  • Page 15: Add An Empty-Slot

    3.3.2 Add an Empty Slot The empty device does not contain any resources. It serves as a substitute for device numbers not assigned. Using this devices enables a free enumeration of devices by inserting empty devices between the real ones.

  • Page 16: Removal Of A Device

    3.3.3 Removal of a device Mark the device you wish to remove and press the button “Remove”. You can then remove the device from the USB port. isPro Init Test The driver software contains the program isPro Init Test to check the correct operation and installation of the driver software of the isPro interface.

  • Page 17: Isplorer

    isPlorer The included demo program isPlorer enables the client to take first measures with the software. The program checks the opera- tion of the PROFIBUS interface and the correct installation of the driver software. Before starting the program, the device has to be added to the configuration program isPro Configurator (see chapter „3.3 Con- figuration and Commissioning“...

  • Page 18: Document History

    Document History Version Date Description Feb. 28th, 2020 initial version Feb. 9th, 2022 content update © last change on 9. February 2022 Thorsis Technologies GmbH +49 391 544 563-1000 Oststr. 18 +49 391 544 563-9099 39114 Magdeburg info@thorsis.com Germany www.thorsis.com...

This manual is also suitable for:

Ispro usbv410300-040110300-0402
