Summary of Contents for Thorsis Technologies isDNet USB

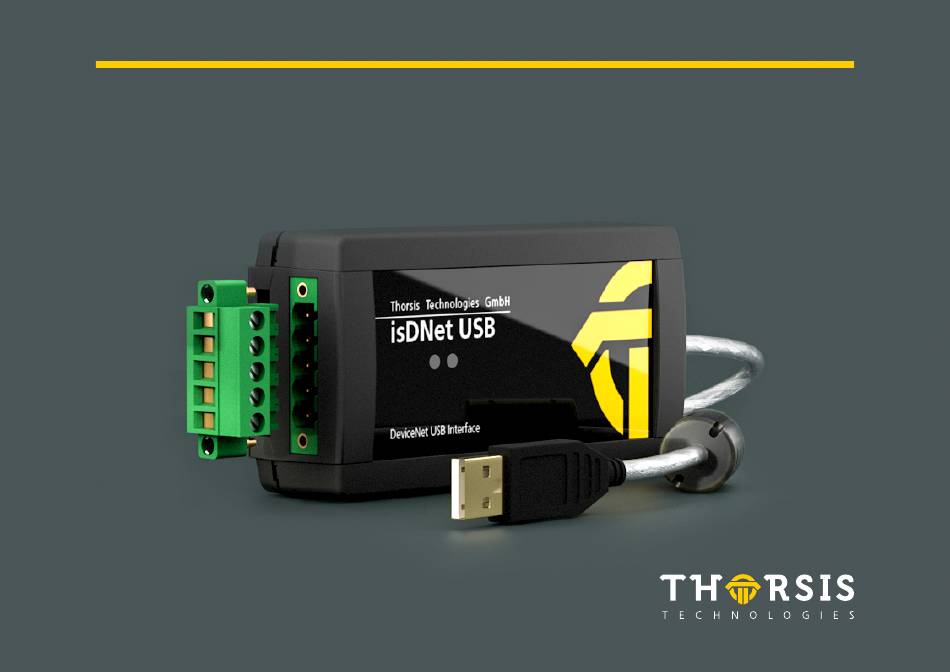

  • Page 1 USB M A N UA L...
  • Page 2 CHANGES OR MODIFICATIONS NOT APPROVED BY We hereby declare, that the device indicated below in its design and construction, is in conformity with the essential safety and health THORSIS TECHNOLOGIES VOID THE VALIDITY OF THE requirements of the EC Directive 2014/30/EU. DECLARATION.
  • Page 3: Table Of Contents

    ISDNET USB ........
  • Page 4: Isdnet Usb

    USB The Interface isDNet USB provides a communication link between a The interface supports the DeviceNet Standard Version 2.0. desktop computer or PC notebook and a Device Network. The PC can Its connector cable comes with a 5-pin connector. The DeviceNet Stack be connected with the Device Network using the USB plug &...
  • Page 5: Technical Details

    Full Speed: 12 Mbit/s, High Speed: 480 Mbit/s Driver software Windows 7,8 & 10 Available software DNet CommDTM (FDT) Delivery content DeviceNet-USB-Interface „isDNet USB“, Driver, configuration and test software as well as documentation in German and English on a memory stick.
  • Page 6: Installation And Commissioning

    The setup starts with an autoroutine; proceed according to the instructions displayed on the screen. Should Autorun be disabled on your machine, run the setup.exe on the Memory-Stick. • The installation is done in the standard program directory of the target machine under C:\Program Files\Thorsis Technologies\isDNet Driver...
  • Page 7: Installation Of The Hardware

    Installation of the hardware The Interface can be connected to the DeviceNet network with its COMBICON connector directly. Use a USB cable to connect the interface to a PC / notebook. 2.2.1 Pin assignment The contacts of the 5-pin COMBICON connector are assigned as follows: Pin 1: V-(OV), black PIN 2: CAN_LOW, blue Pin 3: drain...
  • Page 8: Led Display

    2.2.2 LED display Two LEDs (see figure) enable reading of operating states directly on The Module Status LED (MS) displays the status of the device: the device. meaning device is not in use green normal operating status red/green flashing self test is being completed error, device can be out of order The network status (NS) LED gives information about the status of the communication:...
  • Page 9: Configuration And Commissioning

    Configuration and Commissioning The isDNet Driver Configurator is available to simplify the config- uration of the DeviceNet interface isDNet USB. The program is installed in the start menu. Using this program, the DeviceNet interface and its serial number can easily be added to an existing configuration. The configu- ration program can also detect the serial numbers of connected interfaces.
  • Page 10: Add A Device

    Please press the button “Add“ and select the device type. Then enter all necessary settings. The isDNet USB device has a serial number for a unique identifi- cation. The number is printed on a label located at the bottom of the Interface and is also stored in the device.
  • Page 11: Add An Empty-Slot

    2.3.2 Add an Empty Slot The empty device does not contain any resources. It serves as a substitute for device numbers not yet assigned. Using this devices enables a free enumeration of devices by inserting empty devices between existing ones. For example, if you want to assign the number 3 to a device and there is no device with the number 2, simply add an empty slot behind the device 1.
  • Page 12: Removal Of A Device

    2.3.3 Removal of a device Mark the device you wish to remove and press the button Remove. You can then remove the device from the USB port. Test Software: isDNet Demo The correct operation of the isDNet interface can be checked with the isDNet Demo test application that is included in the driver installation package.
  • Page 13: Document History

    Document History version date description 01.06.2012 initial version 05.09.2017 new images 14.05.2020 new graphics, images and texts © last change 14. Mai 2020 Thorsis Technologies GmbH +49 391 544 563-1000 Oststr. 18 +49 391 544 563-9099 39114 Magdeburg info@thorsis.com Deutschland www.thorsis.com...
