- Page 1 USB M A N UA L...
- Page 2 THORSIS TECHNOLOGIES VOID THE VALIDITY OF THE requirements of the EC Directive 2014/30/EU. Changes or modifica- DECLARATION. tions not approved by Thorsis Technologies void the validity of the declaration. Device type Order number...
-
Page 3: Table Of Contents
ISCAN USB ........ -
Page 4: Iscan Usb

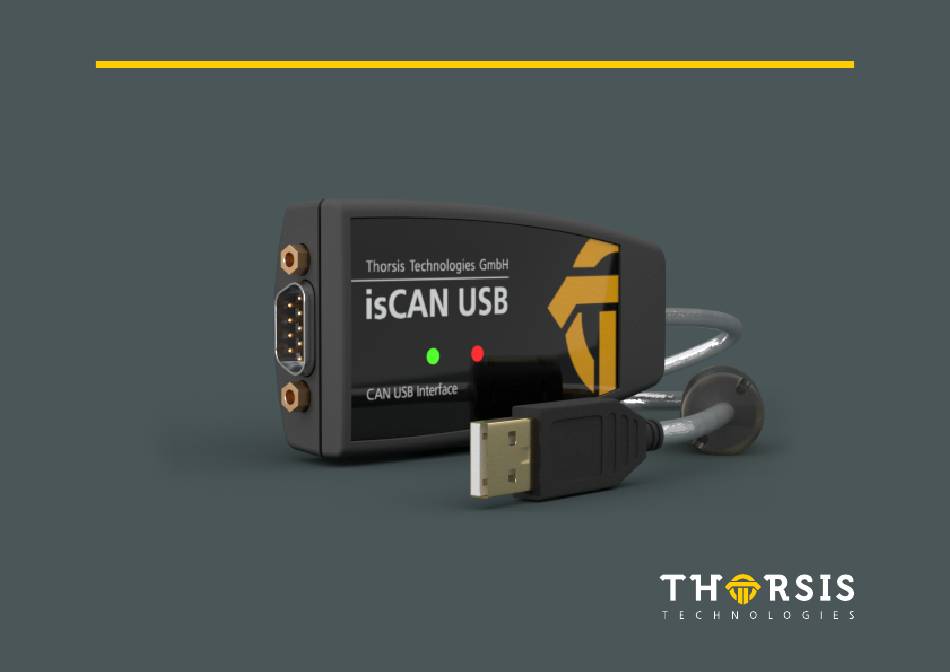

USB The CAN dongle isCAN USB with the universal USB interface grants a It is connected with a 9 pin D-Sub connector according to the CiA fast access to any CAN/CANopen based network. The isCAN USB inter- specification DS-102. LED‘s indicate the actual working condition. The face standard type supports the CAN specification 2.0A (11 bit ID) and... -
Page 5: Technical Details
RP1210 Interface-Dll with J1939-support and ISO15765-2 support SAE J2534-1 Driver Dll (Passthru API) API interface Dll with examples in C/C++ and C# source code Delivery content CAN-USB-Interface „isCAN USB“, Driver-, Configuration- and Testsoftware; Documentation in german and english on CD. -
Page 6: Installation And Commissioning
Installation and commissioning Installation of the driver software The driver software must be installed before connecting the device. Otherwise, the operating system can not find the interface to the associated driver. The driver software package isCAN Multidriver contains a Dynamic Link Library (DLL) which allows the access to the firmware under the operating systems Windows XP, Vista and Windows 7, 8, 10. -
Page 7: Installation Of The Hardware
Installation of the hardware The Interface can be connected to the CAN/CANopen network with its D-Sub 9 pin connector directly. With the integrated USB cable the interface can be connected with the PC/notebook. Two LEDs indicate the actual operation mode. The green LED indi- cates that the CAN controller is powered up and running. -
Page 8: Configuration And Commissioning
Configuration and Commissioning To ease the task of hardware configuration the configuration software isCAN Driver Configurator is provided. It is installed in the Start Menu. This simple dialog based program allows the easy addition and removal of the CAN interfaces. It also checks the available resources of the system. -
Page 9: Add A Device
, choose the device type you would like to add. Press OK, then make your settings. Every isCAN USB adapter is identified by a serial number. This number ensures that the software is communicating with the correct hardware in case that there are more adapters attached to the PC simultaneously. -
Page 10: Add An Empty-Slot
2.3.2 Add an Empty Slot The empty device does not contain any resources. It serves as a substitute for device numbers not assigned. Using this devices enables a free enumeration of devices by insert- ing empty devices between the real ones. -
Page 11: Removal Of A Device
Test. It is installed in the Thorsis folder of the Start Menu. The following functions are provided by the application: • Choice of configured interfaces (isCAN USB, isCAN PCI) • Baudrate settings •... -
Page 12: Document History
Document History version date description 05.09.2017 initial version 24.02.2020 new graphics & images © last change 24. Februar 2020 Thorsis Technologies GmbH +49 391 544 563-1000 Oststr. 18 +49 391 544 563-9099 39114 Magdeburg info@thorsis.com Germany www.thorsis.com...
