Uponor SetPoint 521 Instruction Sheet

Programmable thermostat with floor sensor

Hide thumbs Also See for SetPoint 521:

See also: User Manual , Operation & Installation Manual

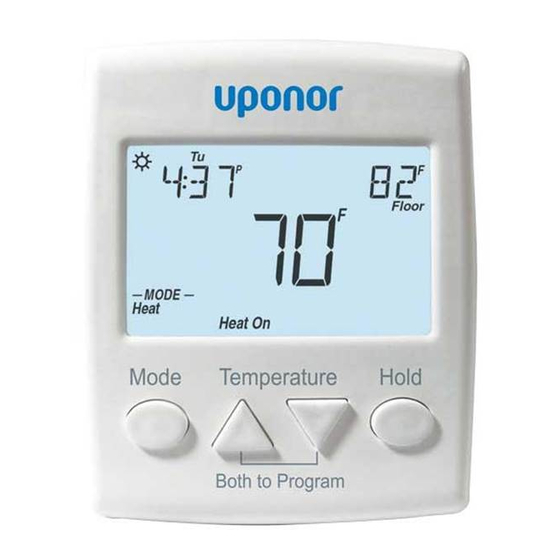

SetPoint 521 Programmable

Thermostat with Floor Sensor

Refer to the following instructions to properly install and set up the Uponor

SetPoint 521 Programmable Thermostat with Floor Sensor (A3040521).

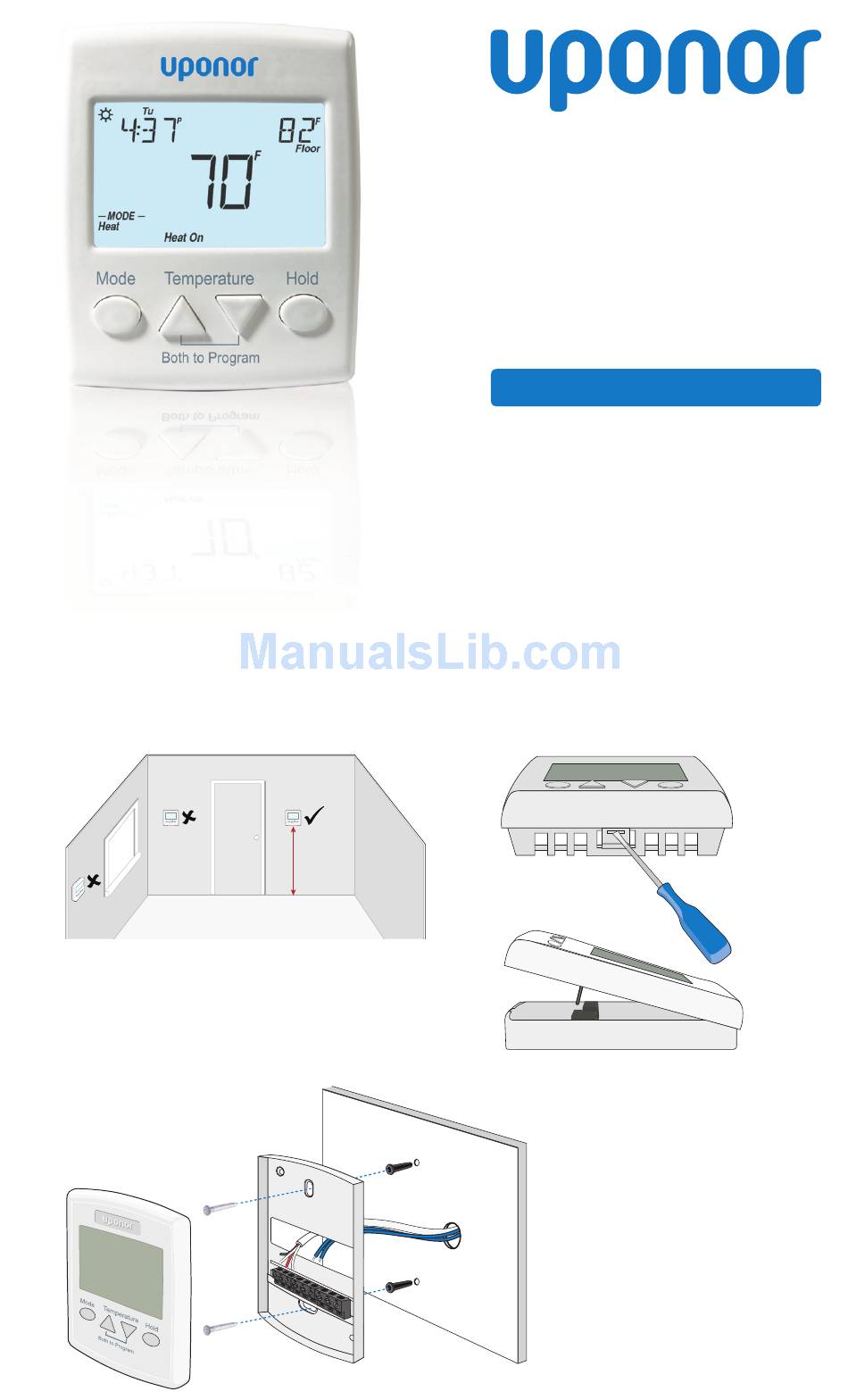

Choose the Proper Location

Behind

Door

Exterior

Wall

Thermostat

Front

Interior

Wall

5 feet

1.5 m

Base

R A D I A N T H E AT I N G

S Y S T E M S

P R O G R A M M A B L E

T H E R M O S TAT

INSTRUCTION SHEET

Remove the Mounting Base

Wall

Table of Contents

Do you have a question about the SetPoint 521 and is the answer not in the manual?

Page 1 T H E R M O S TAT INSTRUCTION SHEET SetPoint 521 Programmable Thermostat with Floor Sensor Refer to the following instructions to properly install and set up the Uponor SetPoint 521 Programmable Thermostat with Floor Sensor (A3040521). Choose the Proper Location Remove the Mounting Base...
Page 2 Install to a Gang Box Adapter Plate Stud (A3040012) Thermostat Thermostat Base Front " (83 mm) Gang Wiring Install field jumper wire R to Rh R Y G Slab No Power Sensor Rh W1 Y/W2 Rc S1 S2 A3040079 Conditioner Zone Control Module A3031003/A3031004 User Interface...
Page 3 Switch Settings Switch Position Action Lock Access Level Thermostat is locked and the access level cannot be changed. Set to Lock when installation has been completed. Unlock Access Level Thermostat is unlocked and the access level may be changed. Go to the Setup menu to change the access level. Set to Unlock during the installation process.
Page 4 Fan Mode Select how the fan should operate together with the W1, W2 or Y relays. Uponor, Inc. Uponor Ltd. 5925 148th Street West 2000 Argentia Rd., Plaza 1, Ste. 200 Apple Valley, MN 55124 USA Mississauga, ON L5N 1W1 CANADA Tel: 800.321.4739...
