Page 6

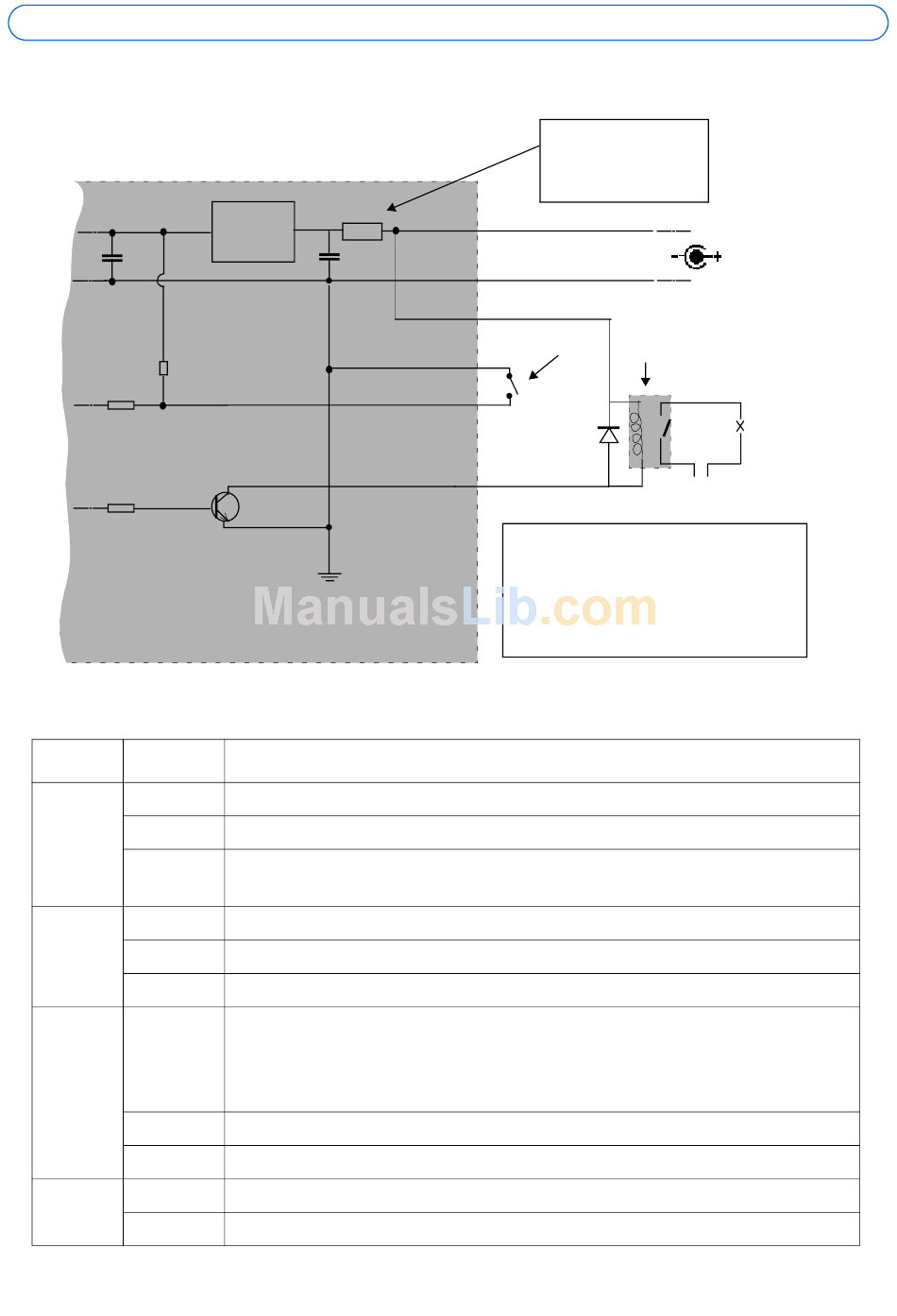

Connection diagram

3.3V
Camera

LED indicators

LED Color
Wireless Unlit
Green
Red
Network Green
Amber
Unlit
Status Green
Amber
Red
Power Green
Amber
Fuse
Linear
Power
Supply
GND
Indication
Wired mode.
Steady for connection to a wireless network. Flashes for network activity.
Steady for no wireless network connection. Flashes when scanning for wireless
networks.
Steady for connection to a 100 Mbit/s network. Flashes for network activity.
Steady for connection to 10 Mbit/s network. Flashes for network activity.
No wired network connection, or AXIS 207MW/AXIS 207W in wireless mode.
Steady green for normal operation.
Note: The Status LED can be configured to be unlit during normal operation, or to
flash only when the camera is accessed. To configure, go to Setup > System
Options > LED settings. See the online help files for more information.
Steady during startup, during reset to factory default or when restoring settings.
Slow flash for failed upgrade.
Normal operation.
Flashes green/amber during firmware upgrade.
AXIS 207/207W/207MW Installation Guide
Fuse:
AXIS 207: 500mA
AXIS 207W/MW: 1A
+
2
o
Power - see table above.
1
o
2
o
e.g. pushbutton
Relay
o
1
o
3
4
o
IMPORTANT!
This diagram applies to the AXIS
207W and AXIS 207MW. The AXIS
207 has a different pinout and
power - see the table above.
o
o
o
Device
o o
