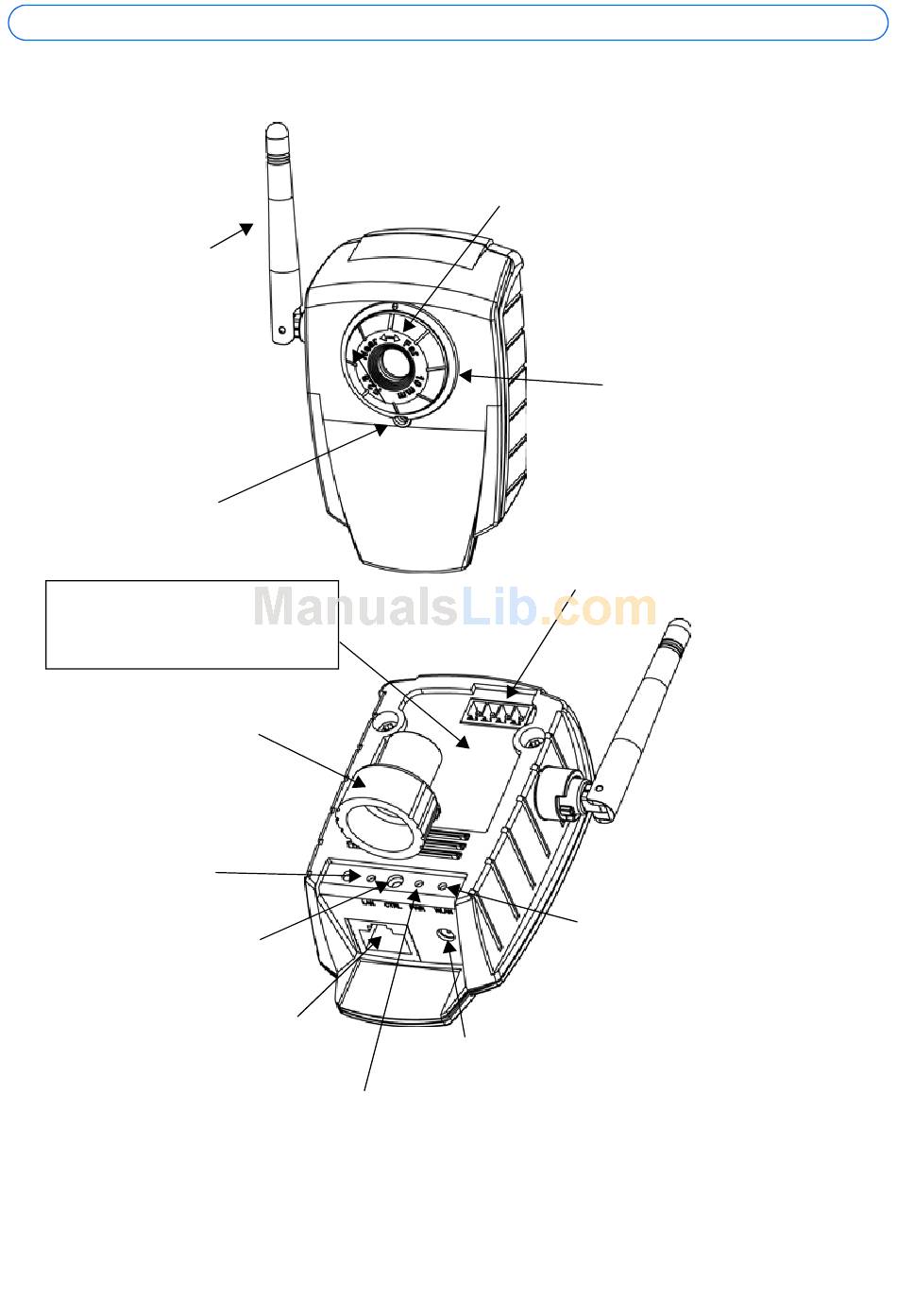

2. Hardware overview

Antenna
(wireless models)
Microphone
Product ID & Serial number (S/N).
The serial number may be
required during the installation.
Lock ring
Network indicator
LED
Control button
Network connector
(see page 5)
Dimensions
AXIS 207: HxWxD = 85 x 55 x 34mm (3.3" x 2.2" x 1.3")
Weight = 177g (0.39 lb) (stand included, power supply excluded)
AXIS 207W/MW: HxWxD = 85 x 55 x 40mm (3.3" x 2.2" x 1.6") (antenna excluded)
Weight: 190g (0.42 lb) (stand included, power supply excluded)
Power indicator LED
AXIS 207/207W/207MW Installation Guide
Focus ring
I/O terminal connector
(see page 5)
Wireless indicator LED
(wireless models)
Power connector
(see page 5)
Status indicator LED
(outer ring)
