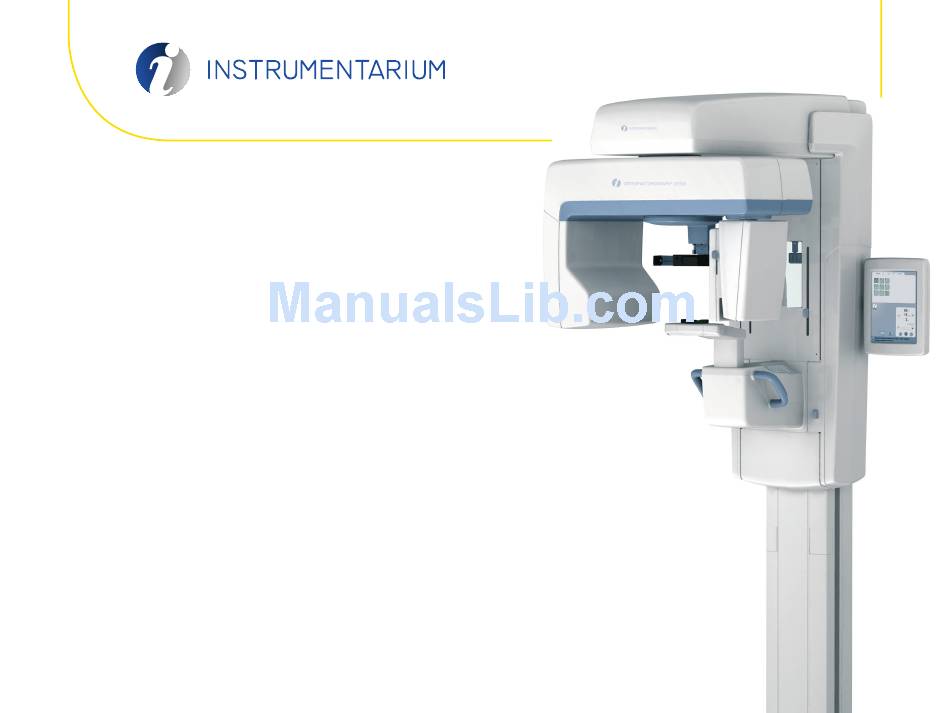

- Page 1 Orthopantomograph ® OP300 QUICK GUIDE Image capturing & patient positioning PANORAMIC IMAGING...
- Page 2 ® Orthopantomograph OP300 Panoramic imaging overview Pre tasks Choose imaging Press patient Choose exposure program. positioning button. values: Switch the unit on. Start Cliniview ™ software. Create or open patient in CliniView ™ and activate image or use preprogrammed capturing by pressing...
- Page 3 Patient positioning quick guide • • • • • Align patient straight Align patient straight Check canine light position and adjust Ask patient to Press exposure according to mid - according to Frankfort layer if needed. swallow and button. sagittal light. horizontal light.
- Page 4 For more detailed information about our products please visit www.instrumentariumdental.com. Instrumentarium Dental reserves the right to make changes to specifi ca- tions and features shown herein, or to discontinue the product described at any time without notice or obligation. Contact your Instrumentarium Dental representative for the most current information.
