3 Sensing Labs SenlabA 4MA-LAB-xxNS – User guide – Version 2 – REV D

On-site installation

➢ POSITIONING: You have first to find the best position to your Senlab:
✓ Prefer vertical position (antenna part upwards as on following pictures)
✓ Avoid positioning the cable pulled vertically under the device (prefer coiled
positioning or use the rear gutters for outdoor version)
For best radio performance:
- Positioned the upper part of the device upwardly in a free space area
- avoid positioning the Senlab against a metallic element
Device type
All versions Stick the product to the wall or cabinet with a double-sided adhesive tape
Indoor version Screw the rear side of the product to the wall with countersunk screws
make sure the screw heads don't exceed from the plastic side once installed
Outdoor version Use plastic cable ties with screw mount

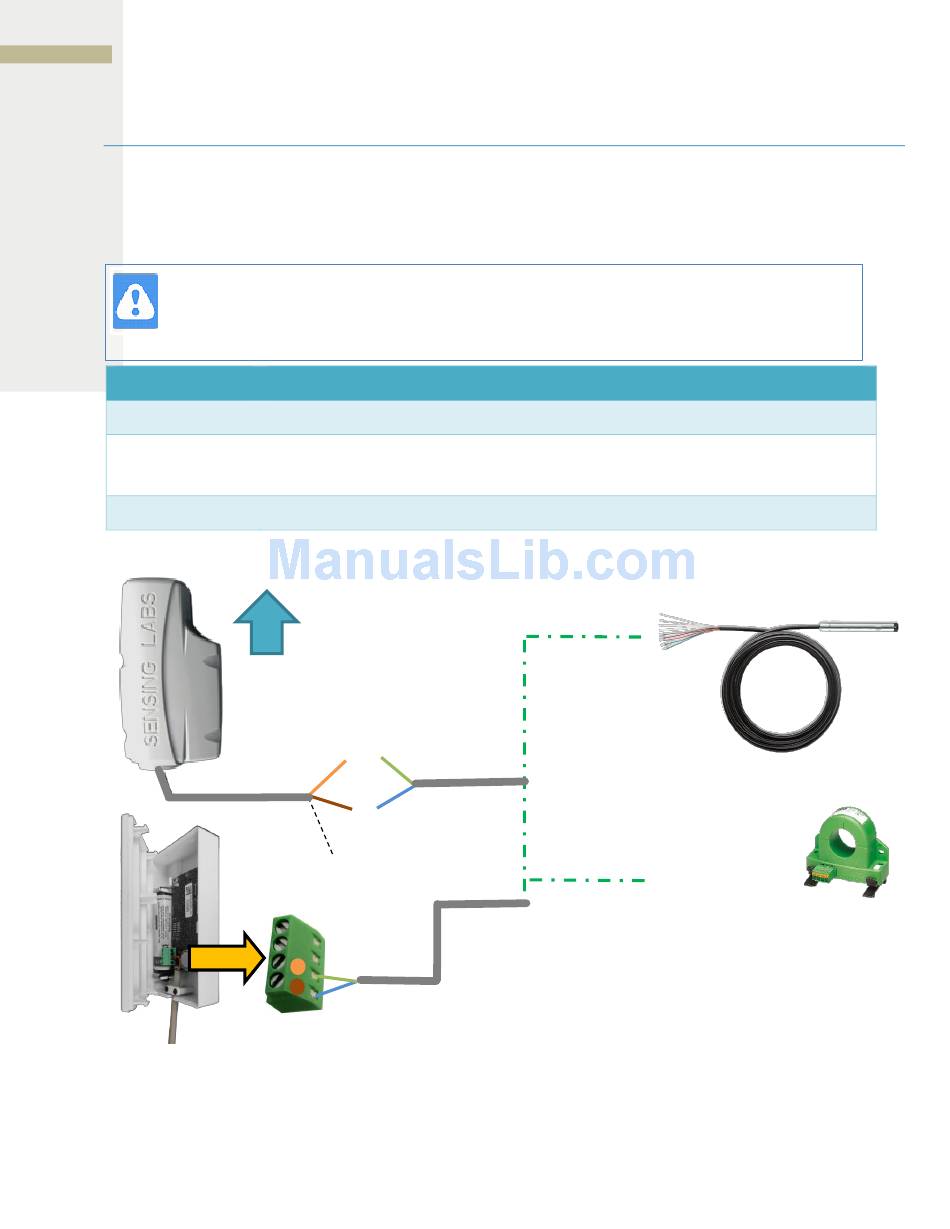

➢ WIRING DIAGRAM: The Senlab must be plugged to 4mA sensor as follow
up
Outdoor
OR
Indoor
Now the device is well physically installed and plugged, you need to activate it in order
to start current measurement as well as radio connection.
+
ORANGE = (positive)
-
BROWN = (negative)
OTHERS = UNCONNECTED
v2
+
(positive)
-
(negative)
Device mounting
OR
Any other
4-20mA sensor ...
