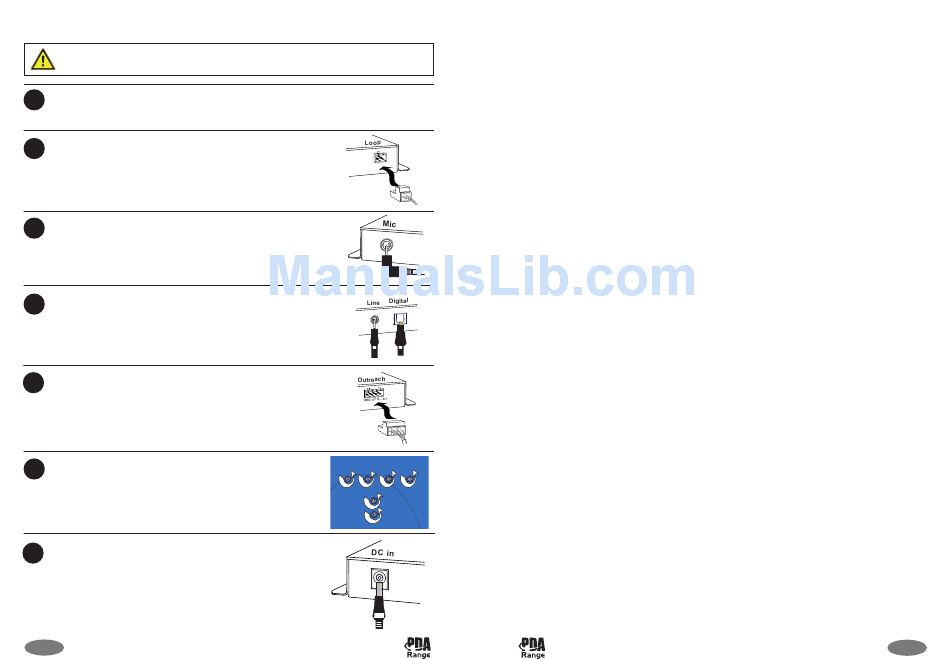

SYSTEM SET-UP AND TESTING
IMPORTANT: DO NOT power up the system before completing Step 7 below.
The amplifier MUST NOT be operated without a loop connected to it.
1
Install the loop cable.
BEFORE connecting the loop to the amplifier, use a multimeter to check the loop is not
shorted to ground at any point. It WILL damage the amplifier if it is.
2
Connect the loop cable (supplied) to the amplifier.
Remove approx. 6mm of the outer insulation from each end
of the loop cable, then secure both ends to the screw
terminals of the 2-way loop cable connector (supplied). Next,
plug the 2-way connector to the amplifier's Loop connector.
3
If relevant, plug the AMT microphone, or an alternative
electret microphone, into the amplifier's Mic connector.
4
If relevant, plug the audio line level into the amplifier's Line
input, or TOS-link connector cable (not supplied) into the
amplifier's Digital connector.
5
If relevant, connect the outreach system to the amplifier.
Remove approx. 6mm of the outer insulation from all cable
ends, then secure the ends to the screw terminals of the 4-
way outreach connector (supplied). Next, plug the 4-way
connector into the amplifier's Outreach connector.
6
Ensure the amplifier's Outreach, Digital, Line, Mic, Metal
Compensation and Level pot controls are set to minimum by
turning them fully anti-clockwise.
7
Connect the plug-top power supply (supplied) to the AC
mains socket and then to the amplifier's DC in connector.
Ensure the amplifier's green Power On indicator lights.
10 of 12
PDA103 Installation Instructions
-
+
Outreach
Digital
Line
Mic
Metal
Compensation
Level
Approved Document No. DAU0000103 Rev 4
PDA103 KIT CONTENTS
The PDA103 hearing loop amplifier is available in the following kits.
2
PDA103C - 1.2m
Counter Hearing Loop Kit:
1 x PDA103 hearing loop amplifier
1 x 230Va.c. PL1/PSU1 plug-top power supply
1 x TX2 pre-formed counter loop cable and fixings
1 x AMT tie/desk microphone c/w 1.5m lead and attachments
1 x Accessory pack containing the installation instructions (this document), four cable ties,
four self-adhesive cable tie bases, one 4-way 'outreach' connector, one 2-way loop cable
connector, one 'hearing loop fitted' sticker.
2
PDA103R - 50m
Small Room Hearing Loop Kit (plated mic version):
1 x PDA103 hearing loop amplifier
1 x 230Va.c.
PL1/PSU1
plug-top power supply
1 x APM 'outreach' plated microphone c/w 6m Belden cable
2
1 x 40m of 0.5mm
loop cable
1 x Accessory pack (as per the PDA103C kit).
2
PDA103L - 50m
Small Room Hearing Loop Kit (tie/desk mic version):
1 x PDA103 hearing loop amplifier
1 x 230Va.c. PL1/PSU1 plug-top power supply
1 x AMT tie/desk microphone c/w 1.5m lead and attachments
2
1 x 40m of 0.5mm
loop cable
1 x Accessory pack (as per the PDA103C kit).
2
PDA103S - 50m
Domestic TV Lounge Hearing Loop Kit:
1 x PDA103 hearing loop amplifier (with TOS-link digital connector)
1 x 230Va.c. PL1/PSU1 plug-top power supply
1 x APL dual phono line level 'outreach' plate c/w 6m Belden cable
1 x APS SCART to dual phono connection lead
1 x 40m of 0.5mm
2
loop cable
1 x Accessory pack (as per the PDA103C kit).
PDA103 Installation Instructions
Approved Document No. DAU0000103 Rev 4
3 of 12
