PDA Range PDA200E Installation Manual

PD Range Selected Parts Listing
2
PDA200E 200m Induction Loop Amplifier & Kits

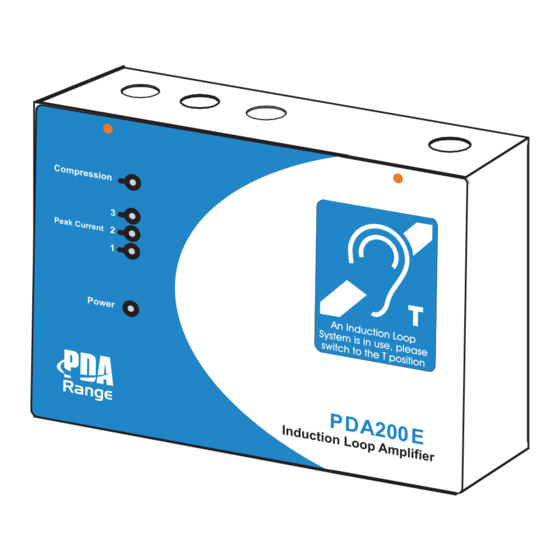

PDA200E 200m 2 wall-mounting induction loop amplifier
AKM1 PDA200E 200m 2 Meeting/seminar room loop kit
c/w PDA200E amplifier, APM omni-directional mic plate/cable
AKL1 PDA200E 200m 2 Lecture room loop kit
c/w PDA200E amplifier, AMT tie/desk mic, AML lectern mic, 2 x APJ plate/cable
2
AKT1 PDA200E 200m TV / music lounge loop kit
c/w PDA200E amplifier, AMH handheld mic, APS scart lead, APJ plate/cable, APL plate/cable
AKR1 PDA200E 200m 2 Waiting room loop kit c/w PDA200E amplifier, APL plate/cable
AKU1 PDA200E 200m 2 Retail unit loop kit
c/w PDA200E amplifier, AML lectern mic, APJ plate/cable
AKW1 PDA200E 200m 2 Place of worship loop kit 1
c/w PDA200E amplifier, AML lectern mic, APJ plate/cable, APL plate/cable
AKW2/L PDA200E 200m 2 Place of worship loop kit 2 (lavalier mic. version)
c/w PDA200E amplifier, AMR/LA lavalier radio mic, APQM plate/cable, 2 x APXM plate/cable
2
AKW2/H PDA200E 200m Place of worship loop kit 2 (handheld mic. version)
c/w PDA200E amplifier, AMR/HA handheld radio mic, APQM plate/cable, 2 x APXM plate/cable
AKH1/L PDA200E 200m 2 Health and fitness club loop kit (lavalier mic. version)
c/w PDA200E amplifier, AMR/LA lavalier radio mic, APQM plate/cable, APL plate/cable
AKH1/H PDA200E 200m 2 Health and fitness club loop kit (handheld mic. version)
c/w PDA200E amplifier, AMR/HA handheld radio mic, APQM plate/cable, APL plate/cable
PDA Pro-Range Amplifiers and Mounting Kits
2
PDA200/2 200m free-standing professional induction loop amplifier
2
PDA500/2 500m free-standing professional induction loop amplifier
2
PDA1000/2 900m free-standing professional induction loop amplifier
PDA/WM Wall mounting kit for PDA200/2, 500/2 or 1000/2 amplifier
PDA/RM 19" Rack mounting kit for PDA200/2, 500/2 or 1000/2 amplifier
Outreach Plates
APM Omni-directional plated microphone, for wall/ceiling/desk mounting
APL Dual phono line level outreach plate
APJ 3.5mm jack mic. level outreach plate
APQM 6.35mm (¼") jack mic. level outreach plate
APQL 6.35mm (¼") jack line level outreach plate
APXM XLR 3 pin mic. level outreach plate
APXL XLR 3 pin line level outreach plate
APXO XLR 3 pin balanced line output outreach plate
API AFILS active indicator light
BELDEN/10 10m Belden 8723 four core screened cable for use with outreach plates
BELDEN/25 25m Belden 8723 four core screened cable for use with outreach plates
Induction Loop Testing Equipment
FPROK Fosmeter Pro Induction Loop Test Kit
(includes Fosmeter Pro loop tester, Audio signal generator & headphones.)
Requires either AL3 lead for PDA102 / MLK1K / PDA200E or AL14 lead for Pro-Range amplifiers.
AL1 3.5mm jack to 3.5mm jack lead
AL2 3.5mm jack to double phono lead
AL3 3.5mm jack to bare ended lead
AL4 6.35mm (¼") jack to XLRM lead
AL12 3.5mm jack to 6.35mm (¼") jack socket adapter
Induction Loop Ancillaries
APT Loop connector plate (for the termination of induction loop cable)
LEST 100V line (i.e. PA system output) to 0db (775mV line level) convertor
APPS Overspill reduction phase shifter
TEAR10 Pack of 10 self-adhesive 'induction loop in use' stickers
12 of 12 Approved Document No. DCP0002129 Rev 7

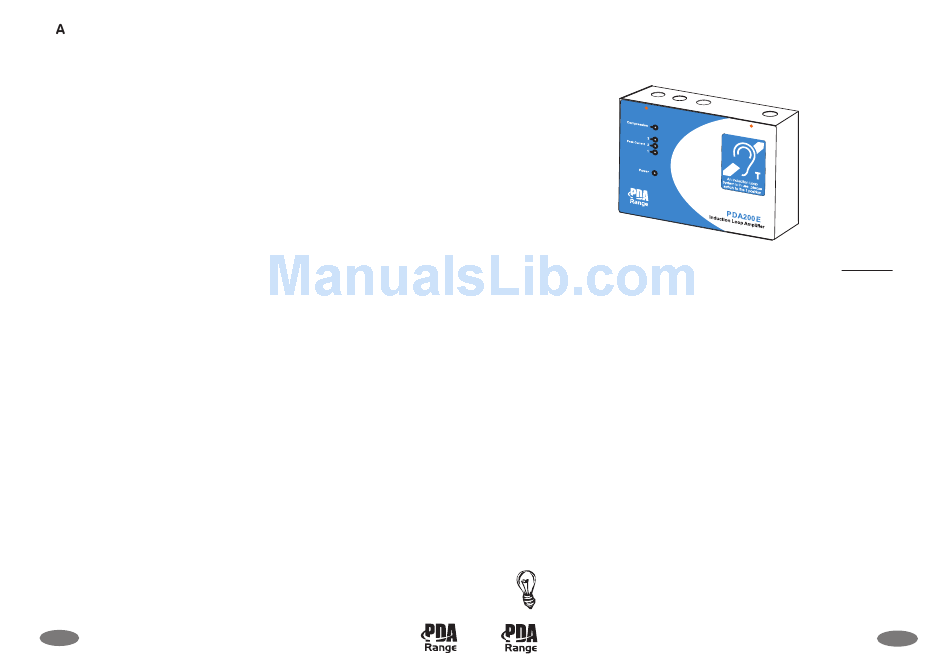

PDA200E Induction Loop System

Installation Guide

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE
INSTALLING AND / OR MAINTAINING THIS EQUIPMENT.
Key Features
The PDA200E is a cost-effective induction loop amplifier that is designed to drive a perimeter
loop of up to 200 square metres. It provides the following key features:
• Fully compliant as a perimeter loop system as described in BS 7594, clause 10 A3 and BS EN
60118-4 when correctly installed
• Up to 200 square metres (metal free) coverage - ideal for most 'free space' applications
• Two balanced / unbalanced line level inputs
• One microphone input with phantom power for electret microphones (12 V)
• Full compatibility with the Outreach plate audio input extension system
• Metal compensation control to improve intelligibility in rooms with high metal content
• Fully automatic compressor-limiter which maintains the loop signal for improved intelligibility
• Each input has a separate internal tamper-resistant control that can be manually adjusted
• Compression, output (Peak Current 3, 2, 1) and power on (Power) front panel indicators
• Short circuit protection
• Internal temperature safety cut-out to stop over heating
• Wall-mounted metal enclosure for a permanent robust installation
• Complete with installation kit, instructions and 'loop fitted' sticker
• Contractor kits available - suitable for use in meeting rooms, TV lounges, places of worship, etc.
Hint!
Additional information about loop design can be found in the PDA Guide to
Audio-Frequency Induction Loop Systems (AFILS), Document Number DLM0503700.
Approved Document No. DCP0002129 Rev 7
