Spares and accessories
PDA PRO-RANGE AMPLIFIERS AND MOUNTING KITS
PDA200/2
200m
2
free-standing professional induction loop amplifier
PDA500/2
500m
free-standing professional induction loop amplifier
2
PDA1000/2 900m
free-standing professional induction loop amplifier
2
PDA/WM
Wall mounting kit for PDA200/2, 500/2 or 1000/2 amplifier
PDA/RM
19"Rack mounting kit for PDA200/2, 500/2 or 1000/2 amplifier
INDUCTION LOOP CABLE - see page 6 for further information
LOOP1/B
100m reel 0.5mm
2
single core black loop cable
LOOP1/W
100m reel 0.5mm
single core white loop cable
2
LOOP2/B
100m reel 1.0mm
single core black loop cable
2
LOOP2/W
100m reel 1.0mm
single core white loop cable
2
LOOP3/B
100m reel 1.5mm
2
single core black loop cable
LOOP3/W
100m reel 1.5mm
2
single core white loop cable
LOOP4/B
100m reel 2.5mm
2
single core black loop cable
LOOP4/W
100m reel 2.5mm
single core white loop cable
2
FLAT1005
100m x 0.5mm
2
insulated copper tape (flat loop cable for under carpets)
FLAT2005
100m x 1.0 mm
2
insulated copper tape (flat loop cable for under carpets)
FLAT3005
100m x 1.5mm
2
insulated copper tape (flat loop cable for under carpets)
TAPE
50m white synthetic fibre tape (used to protect flat loop cable)
OUTREACH PLATES - see page 7 for further information
APM
Omni-directional plated microphone, for wall/ceiling/desk mounting
APL
Double phono line level outreach plate
APJ
3.5mm mono jack mic. level outreach plate
APQM
6.35mm jack mic. level outreach plate
APQL
6.35mm jack line level outreach plate
APXM
XLR 3 pin mic level outreach plate
APXL
XLR 3 pin line level outreach plate
API
AFILS active indicator light
BELDEN/10 10m Belden 8723 four core screened cable for use with outreach plates
BELDEN/25 25m Belden 8723 four core screened cable for use with outreach plates
INDUCTION LOOP TESTING EQUIPMENT - see page 13 for further information
SWGN
Sine wave generator
(requires PP3 battery and AL3 connection lead)
AHHM
FoSmeter magnetic field strength meter
(requires PP3 battery)
AMSW
FoSmeter Plus combined sine wave generator & magnetic field strength meter
(requires PP3 battery and AL3 connection lead)
AHHM/H
FoSmeter H combined magnetic field strength meter & loop listener
(requires HEAD1 32 Ohm headphones)
HEAD1
32 Ohm headphones for use with AHHM/H
AL3
3.5mm jack to bare ended lead
(connects PNGN or AMPN to a pro-range amplifier's outreach socket)
INDUCTION LOOP ANCILLARIES
APT
Loop connector plate (for the termination of induction loop cable)
LEST
100V line (i.e PA system output) to 0db (775mV line level) convertor
TEAR10
Pack of 10 self-adhesive 'induction loop in use' stickers
© Errors and omissions excepted. The manufacturer of this equipment operates a policy of continuous improvement and
reserves the right to alter product specifications at its discretion and without prior notice.
PDA Pro-Range Instructions • Approved Doc. No. DCP0003168 Rev 3 • Page 16

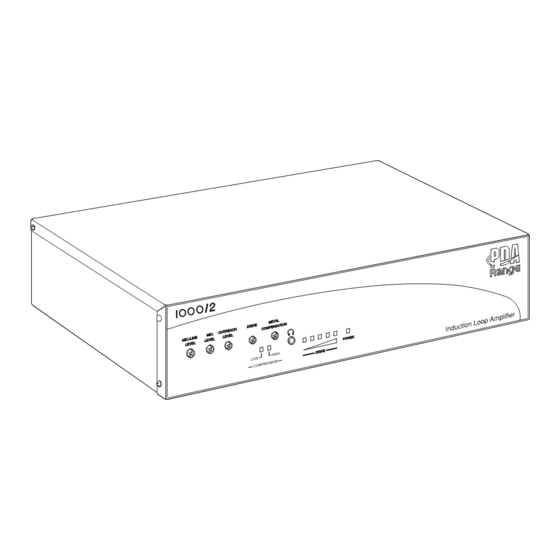

PDA200/2, PDA500/2, PDA1000/2
PROFESSIONAL AUDIO-FREQUENCY
INDUCTION LOOP AMPLIFIERS
INSTALLATION INSTRUCTIONS
This equipment must be installed by a suitably skilled and technically
competent person. Please read these instructions carefully before installation.
Important notes .......................................................................................... 2
What is an audio frequency induction loop system? .............................. 3
Familiarisation with your PDA Pro-Range induction loop amplifier ..... 4
Planning the system .................................................................................. 6
Overview of the 'Outreach plate' audio input extension system .......... 7
A typical PDA Pro-Range induction loop system .................................... 8
Installation ................................................................................................... 11
Safety precautions ..................................................................................... 11
Mounting the amplifier .............................................................................. 11
Connecting and testing the system ......................................................... 12
Technical specification .............................................................................. 14
Spares and accessories .............................................................................. 16
PDA Pro-Range Instructions • Approved Doc. No. DCP0003168 Rev 3 • Page 1
Advertisement
Table of Contents
Related Manuals for PDA Range PDA200/2
Summary of Contents for PDA Range PDA200/2
-
Page 1: Installation Instructions
INDUCTION LOOP AMPLIFIERS PDA1000/2 900m free-standing professional induction loop amplifier PDA/WM Wall mounting kit for PDA200/2, 500/2 or 1000/2 amplifier PDA/RM 19"Rack mounting kit for PDA200/2, 500/2 or 1000/2 amplifier INDUCTION LOOP CABLE - see page 6 for further information LOOP1/B 100m reel 0.5mm... -
Page 2: Important Notes
The PDA200/2 model does not require a cooling fan, as it does not generate as much heat as the larger models. In all cases the amplifiers should be operated in a cool environment, away from sources of heat and should never be covered with any object that could impede the flow of cooling air. -
Page 3: What Is An Audio Frequency Induction Loop System
Recommended loop impedance: 0.5 – 1 Ohm @ 1KHz. Will drive higher impedance loops with reduced area of coverage. Signal cable Loop drive current @ 1 Ohm: PDA200/2 – 6A; PDA500/2 – 9A; PDA1000/2 – 12A. Signal cable Peak loop drive current (measured over 5mS integration time):... - Page 4 POWER LEAD microphone or line CONNECTOR INPUT MODE SELECT SWITCH The following items of cost-effective PDA RANGE test equipment can be used to verify level inputs via a range of specially designed Allows the MIC./LINE input to be configured for both the audio quality and the magnetic field strength of any AFILS system.
- Page 5 LOW compression indicator is lit most of the time and Turn clockwise to increase sensitivity or try adjusting the layout of the loop and/or consider purchasing a more powerful PDA range HIGH compressor indicator illuminates only with peaks in anti-clockwise to decrease sensitivity.
-
Page 6: Planning The System
Install the loop - see Planning the System, pages 6 to 9, for example layouts and Maximum square room coverage provided by PDA Pro-Range amplifers is as follows:- positioning advice. PDA200/2 = 200m (14m x 14m) ; PDA500/2 = 500m (22m x 22m) ;... -
Page 7: Mounting The Amplifier
Installation The ‘Outreach’ plate audio input extension system In addition to the amplifier’s two XLR inputs (MIC. and MIC./LINE), up to 10 additional Safety precautions microphone or line level inputs (any mix) can be daisychained to the amplifier’s ‘OUTREACH’ connector via a range of specially designed wall, ceiling or desk mountable single gang plates. Please refer to the safety precautions below before attempting Several different Outreach plates are available covering the most common variants of audio to make any connections or operating your PDA Pro-Range... - Page 8 A typical Pro-Range multiple input induction loop system The illustration below shows a typical induction loop system for a place of worship requiring multiple audio inputs. It is designed to show all of the amplifier’s inputs being used with a microphone connected to its MIC.
