Description
eter Description

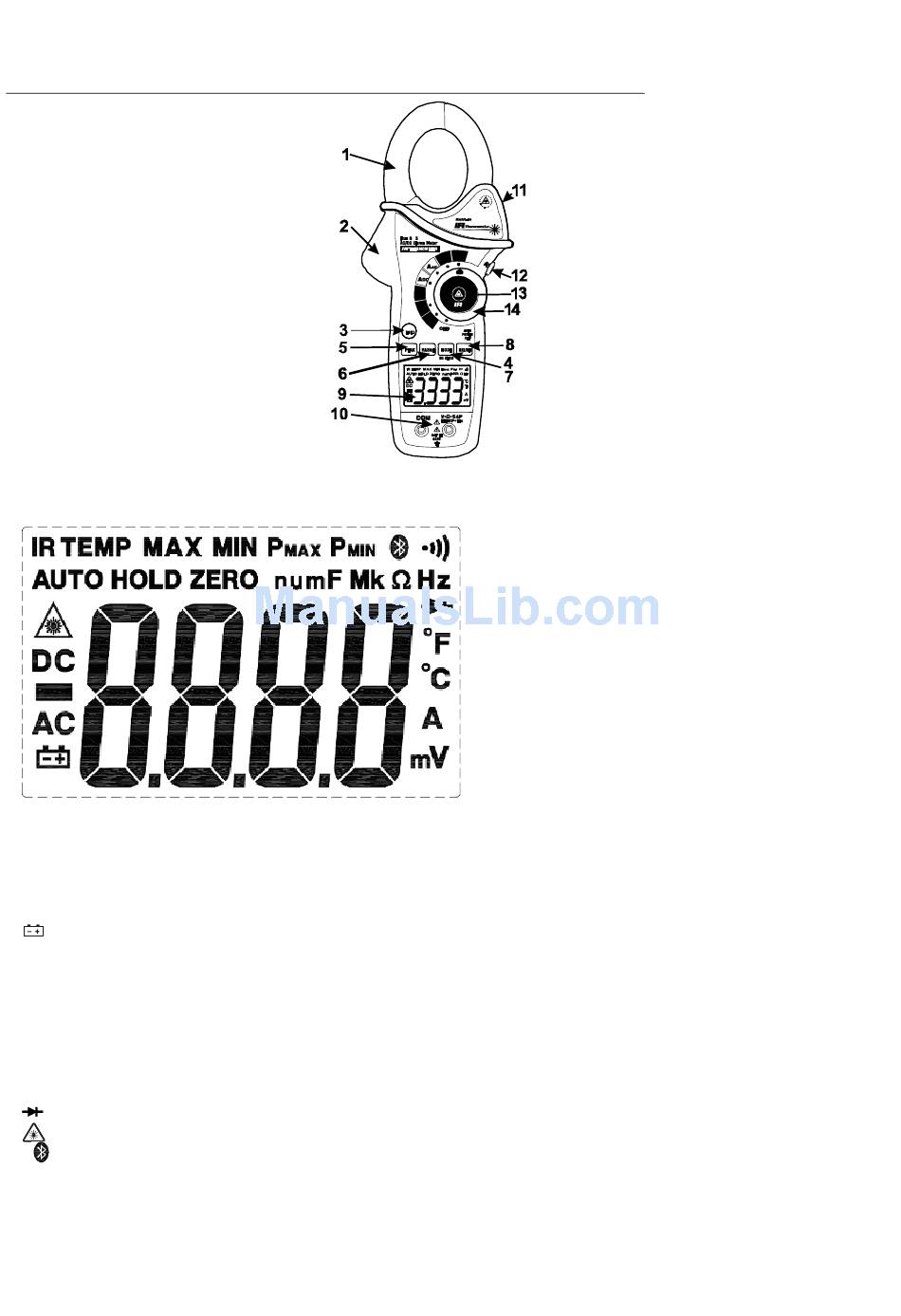

1. Current clamp
2. Clamp opening trigger
3. Data Hold Button
4. Mode
5. Peak
6. Range
7. DCA Zero
8. MIN/MAX
9. Backlit LCD Display
10. Test lead input jacks
11. IR thermometer and laser pointer (rear)
12. Backlight /BT active / Store trigger button
13. Laser pointer button
14. Function switch
Display icons Description
HOLD Data Hold
Minus sign Negative reading display
0 to 3999 Measurement display digits
ZERO DCA Zero
P Peak value
AUTO Auto Range mode
DC/AC Direct Current / Alternating Current
MAX Max reading
MIN Min reading
Low battery
mV or V Milli-volts or Volts (Voltage)
Ω
Ohms (Resistance)
A Amperes (Current)
F Farad (Capacitance)
Hz Hertz (Frequency)
o o
F and C Fahrenheit and Celsius units (Temperature)
n, m, μ, M, k
Unit of measure prefixes: nano, milli, micro, mega, and kilo
•
) Continuity test
)
)
Diode test
Laser pointer
BT active
