Installation Guidelines (Read before Installing)

Opening the uSwitch enclosure or tampering will void the warranty.
1. Not weatherproof (do not install outdoors without proper environmental enclosure).
2. Must be installed by qualified personnel.
3. Not designed to run in a radioactive environment
4. Must not be used for medical, lifesaving purposes, or for any purpose where its failure could cause serious injury,
loss of life, or create significant financial losses.
5. Must be correctly wired. Incorrect wiring could result in damage to uSwitch or the device to which it is partnered.

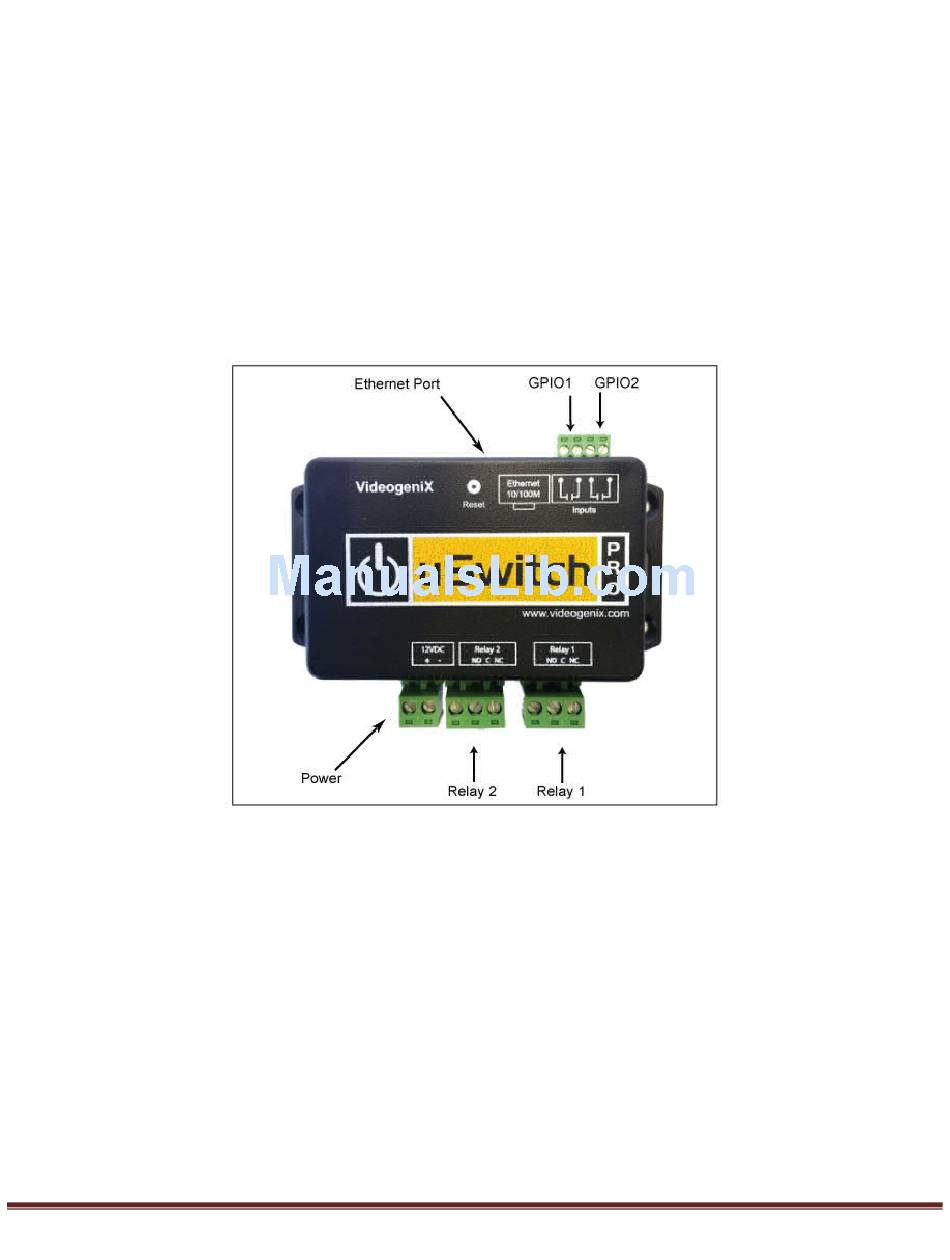

1. uSwitch can be connected to a DC power source in the range of 12-16Vdc. Connect an appropriate DC power
supply to the + and - Terminals in Figure 1 (regulated power supply is recommended). The power supply should
be rated to meet the operating current of the
C). As shown in the photo, the positive terminal is the terminal closest to the outside unit edge; the negative
terminal is the terminal closest to relay connectors.
2. Connect an Ethernet cable between the uSwitch Ethernet port and an Ethernet port on the network switch/router.
Connect a computer to the network switch/router. (See diagram below). Alternatively, you can connect the
uSwitch directly to the etherent port of your computer (computer must be on a 192.168.1.xxx subnet and both
should share the same gateway address and subnet mask).
uSwitch and uSwitchPro Installation and Operating Manual

uSwitch and uSwitchPro Quick Start Guide

uSwitch™ (see specifications for power requirements in appendix
Page 6
