Menu Navigation

Navigating between the uSwitch menus is done by clicking on the blue menu buttons on the left side of every page (each
configuration page has the identical menu choices available). The menu options for the uSwitch are, uSwitch Control
Center, Relay Configuration, Watchdog Configuration, GPIO Configuration, Virtual Relay Configuration, Network
Configuration, Authorization Configuration and Operations Manual (the Operations Manual is only available if a web
connection is available)
uSwitch Control Center Operating Modes

Control Center (Relay 1- Momentary Mode)

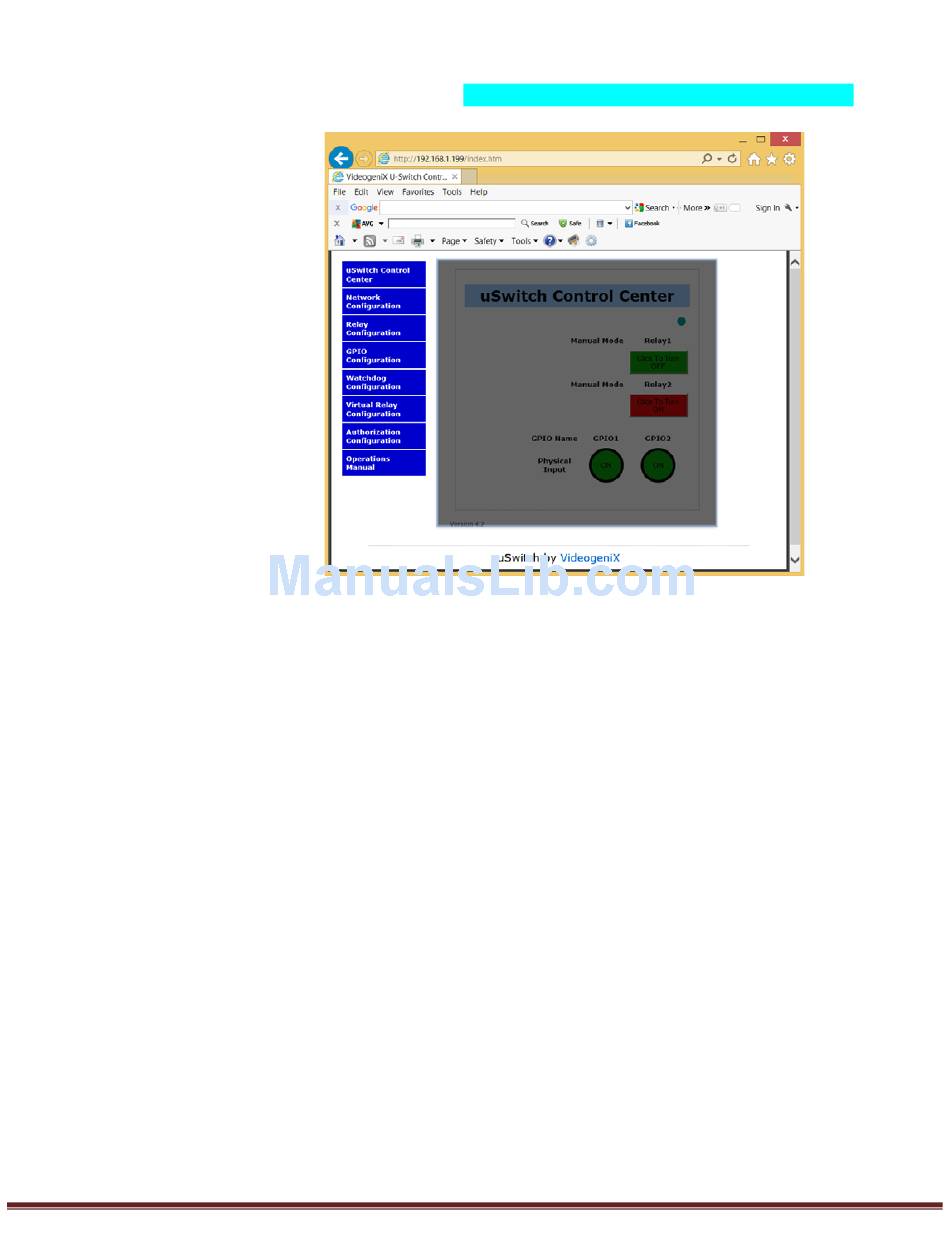

The image below shows the Control Center with relay one configured as a twenty (20)second momentary (or pulsed) relay
(a relay is configured into momentary mode from the Relay Configuration page). In this case each time relay1 button is
clicked, the relay changes its state, counts down to zero (currently 5) and then changes back to its starting state. To
change the relays initial state, temporarily disable momentary mode by setting the momentary time to zero (0) (from Relay
Configuration page), Then manually change the state of the relay (on the Control Center page) to the desired iinitial state.
Finally put the relay back into momentary mode by putting in a non-zero momentary time (from the Relay Configuration
page). Note: Once a momentary countdown has started the push button relay controls are disabled until countdown
completes (during countdown mode the colors of the relay flash between its current state and yellow).
