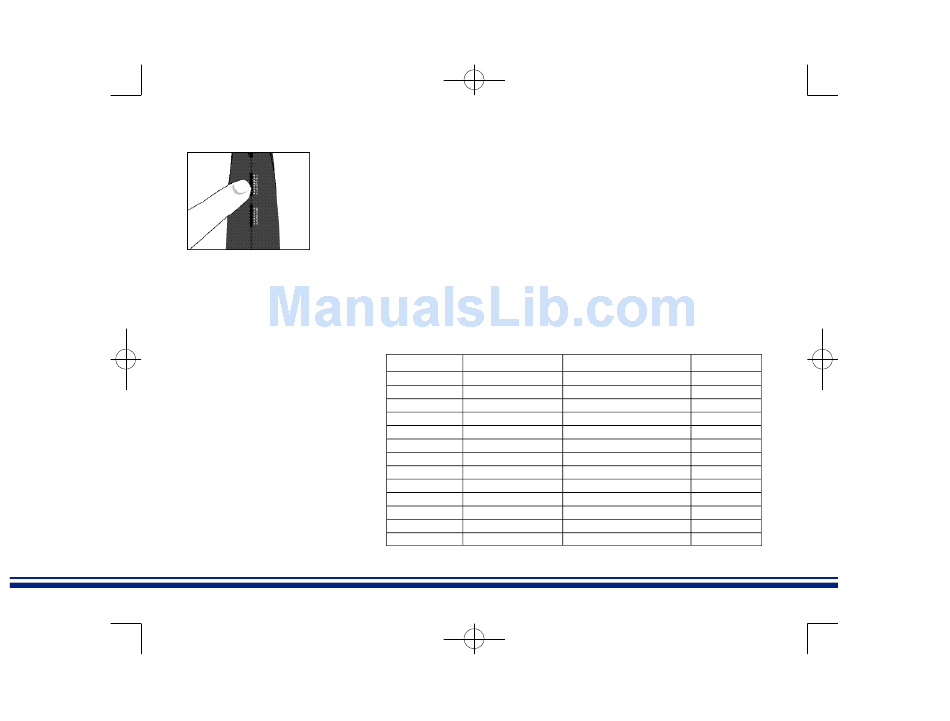

Figure 8
9:55 AM Page 5
Step 2: Adjusting the transmit sound leve l
To adjust transmit (microphone) sound level, you must make a call.
1 ) Change from headset to handset position by pressing the headset/handset switch
marked with icon 3 0on top of base unit once. Call someone using your handset
and ask for help evaluating the sound level of your voice. Adjust the switch marked
1-8 on the rear of the base unit as follows:
Adjust position from 1 to 8 (1 softest, 8 loudest) by first talking in the handset
and then in the headset for each position. When the person hears no
d i ff e rence when you talk into the handset or headset, you have the corre c t
setting. If the best setting is 7 or 8, move the A-G switch to position G (see
F i g u re 8).
T elephone compatibility guide
For optimal perf o rmance the Ellipse must be adjusted to the telephone it is connected to.
The table shows the setup with the adjustment of the 2 diff e rent setup functions.
Manufacturer System
AT&T (Lucent) Definity
Merlin
ISDN
1A2
Merlin Legend
Consumer Products
Comdial Executech, Impact
Mitel SX Series
NEC Electra
Executone Encore
ITT/Alcatel 501, 601
Toshiba Strata SE & DK
Siemens Rolm
5
Phone Set Phone Type
7100, 7300, 7400, Series Electret
BTN, BIS, & 7000 Series Electret
6500, 7500 Series Electret
2500 Series Carbon
MLX Series Electret
Traditional & Feature Electret
All Sets Electret
All Supersets Electret
D-Term Series 2, 3, E Electret
All Sets Carbon
2500 & 2800 Series Carbon
EKT 2101-3102, 6010-6025 Carbon
ETS Series Carbon
