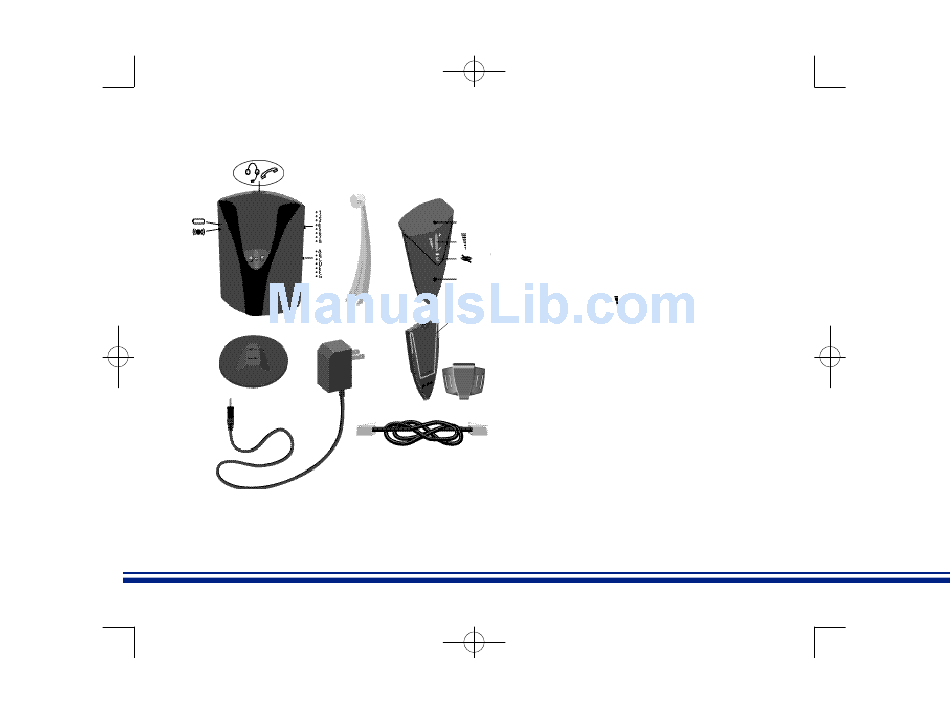

C o m p o n e n t s
A .
D.
9:55 AM Page 2
B C.
III.
I.
II.
I V.
V.
E .
F.
G.
A . Base Unit
3 0Headset/Handset Selector
I . Transmit A d j u s t m e n t
I I . Telephone Compatibility A d j u s t m e n t
4 On-line Indicator
5 B a t t e ry Recharging Indicator
B . Headset Stand
C . Remote Unit
I I I . On-line Indicator
Volume Control Button
6 Mute Button
I V. Hook Switch Activation Button
D.
Base stand
E.
AC Power Adapter
F.
Remote Unit Battery and Belt Clip
V. S h i rt Clip
H.
Modular Connector Cord
