7 I/O CONFIGURATION
It is very useful to be able to configure each source and also 3Play's many outputs independently. Source
configuration options ensure that you can match camera inputs to each other, that their signals fall within
legal ranges, and mix and match different types of camera. And display Proc Amp settings allow you to
make adjustments as appropriate to your specific needs.
Let's begin with a consideration of Output Configuration tools.
7.1

OUTPUT CONFIGURATION

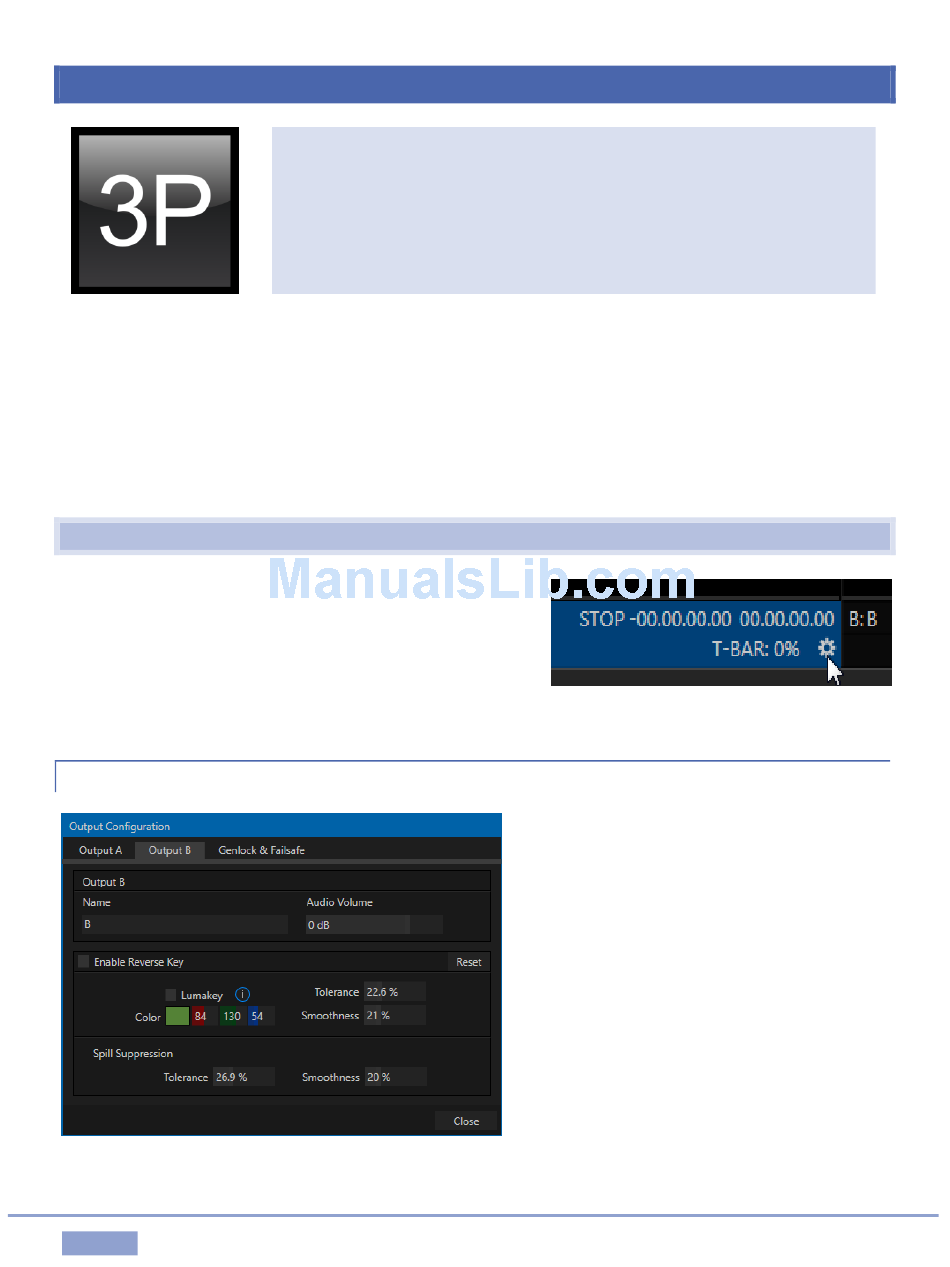

To open the Output Configuration panel, double-click either
output monitor. Alternatively, roll the mouse pointer over
the Configure button that appears beneath the lower-right
corner of either monitor and click it – see Figure 65.

7.1.1 CHANNEL A AND B

Figure 66
Page | 65
NewTek 3Play® provides extensive control over your video signal at both
input and output stages. In addition to basic format connection options for
both audio and video inputs, each video source has its own realtime Proc
Amp.
Other important options include support for supplemental Multiview
monitors, external timecode support, and genlock configuration.
Figure 65
