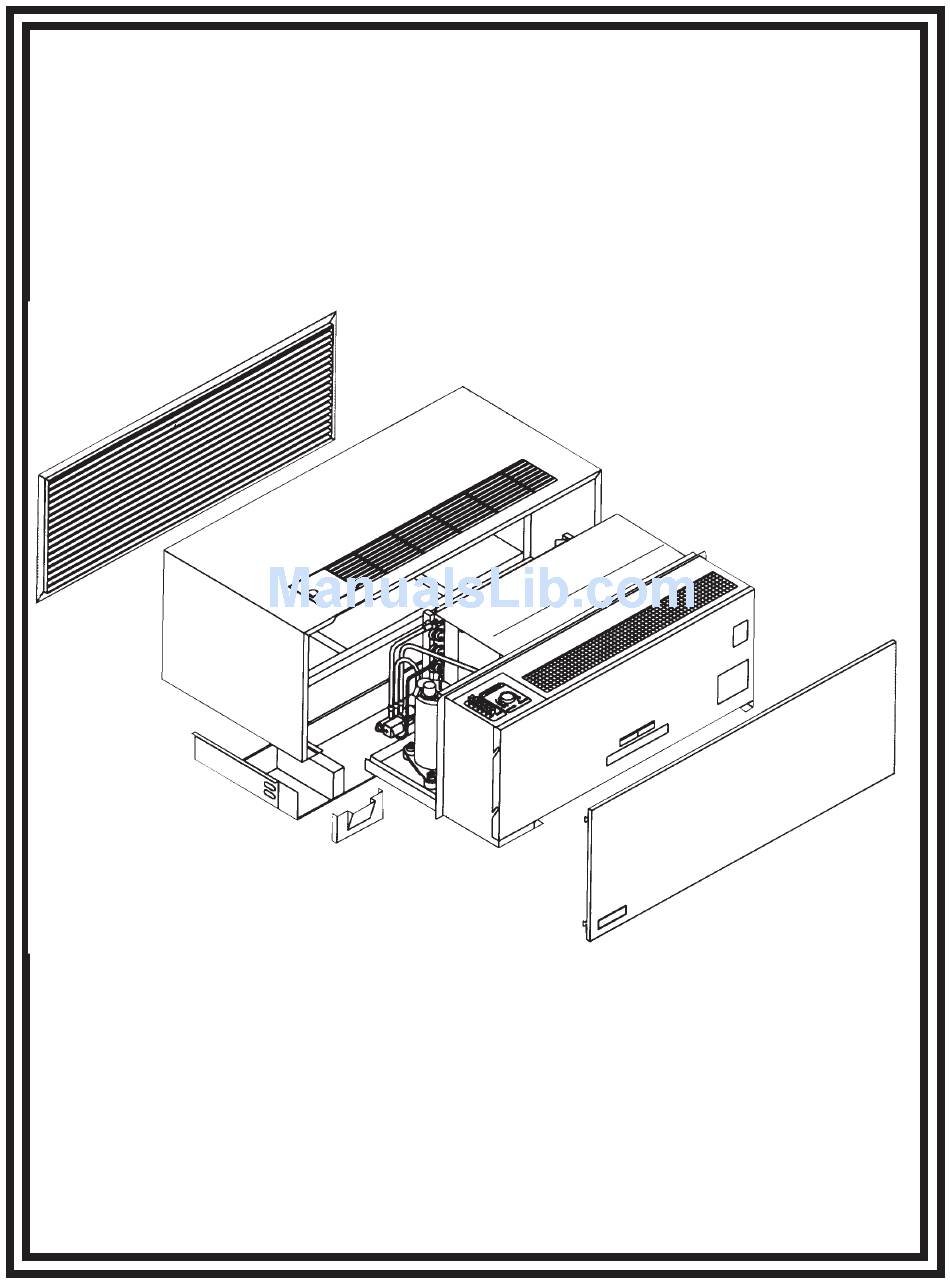

- Page 1 INSTALLATION OPERATION S-SERIES ELECTRIC COOLING/HEATING AND HEAT PUMP PACKAGED TERMINAL AIR CONDITIONERS 1090653 REV. 03 REF ECN06028...
-
Page 2: General Information
General Information DO NOT INSTALL CHASSIS INTO SLEEVE WITHOUT FIRST READING CHASSIS INSTALLATION PROCEDURE. RECOMMENDATIONS FOR EFFICIENT OPERATION · · Keep air intake filter clean. Units are provided with a When unit has been turned OFF, wait three minutes washable filter that can be cleaned with soap and water before re-energizing unit. -
Page 3: Push-Button Operation
PUSH-BUTTON OPERATION Depress these buttons for the following effect: HIGH Entirely stops system as well as closes vent (if open). If Activates indoor and outdoor motors on high speed you wish to resume cooling or heating, wait at least 3 independently of “heat”... - Page 4 GOOD AIR CONDITIONING PRACTICES FILTERS DIRTY COILS/BENT FINS A dirty, clogged filter reduces the efficiency of the Periodically inspect the indoor and outdoor coils for system. It can also cause erratic performance of build-up of lint, dust, leaves, foreign debris, etc., and controls and can result in damage to the motor, heating bent fins.
-
Page 5: Fuse/Circuit Breaker
FIG. 3 FIG. 4 RECEPTACLE Receptacle must match plug on unit service cord. DO NOT: · Change length of service cord. · Bend /alter or change service cord plug configuration. · Use extension cords. WARNING To avoid property damage, bodily injury or death, the unit must be used on a grounded power supply only. -
Page 6: Chassis Installation
CHASSIS INSTALLATION CHASSIS FLANGE INSTALLATION (Standard Position) This position will be used in the majority of sleeves Unit is shipped from the manufacturer with the top and currently installed to date. right chassis flange in place. The flange is located 8 inches from the front of the Install the left side chassis flange using the following chassis. - Page 7 CHASSIS FLANGE INSTALLATION Unit is shipped from the manufacturer with the top and right chassis flange in place. (Optional Position “A”) Install the left side chassis flange using the following This position will be used in a small number of sleeves steps: currently installed to date.
- Page 8 CHASSIS FLANGE INSTALLATION (Optional Position “B”) This position will be used in a small number of sleeves currently installed to date. The flange is located 9 inches from the front of the chassis. Unit is shipped from the manufacturer with the top and right chassis flange in place.
-
Page 9: Temperature Control Knob
TEMPERATURE CONTROL KNOB The temperature control knob must be removed before Carefully push chassis into sleeve until chassis flange, installing chassis into sleeve to gain clearance between (with seal) contacts the flange in the sleeve. (See Fig. 9). sleeve and chassis (See Fig. 8). All 3 chassis flanges must be installed in their proper orientation. -
Page 10: Front Panel
FILTER FIG. 12 A permanent type filter is supplied with unit. Remove sleeve front panel and install filter horizontally on rails provided. Replace sleeve front panel (See Fig. 11). FRONT PANEL Install front panel making sure locking brackets are inserted into all four slots in sleeve. FIG. -
Page 11: Start-Up Checklist
START-UP CHECKLIST Note: These units should be installed and checked for proper function by qualified service personnel only. 1. Circuit breakers, wire size, all connections tight and correct 2. Condensate drain adequate (size-pitch-trapped) 3. Filter clean and in place 4. Condenser air inlet and outlet free of obstructions and short circuiting 5.
