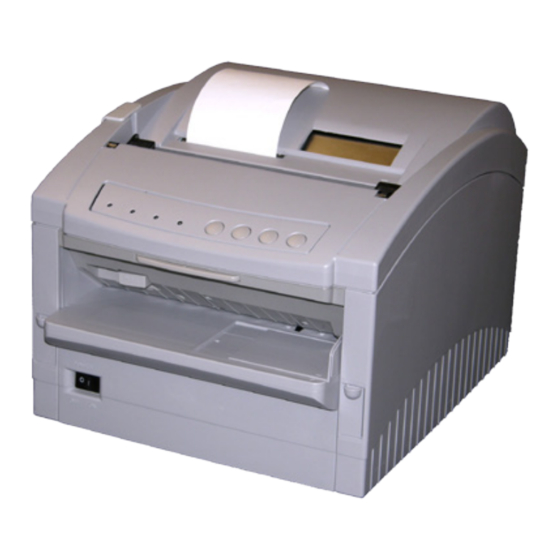

OKIPOS 426S
45470001EE Rev.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OKIPOS 426S and is the answer not in the manual?

Questions and answers

Related Manuals for Oki OKIPOS 426S

Summary of Contents for Oki OKIPOS 426S

  • Page 1 OKIPOS 426S 45470001EE Rev.1...
  • Page 2 Oki Data assumes no responsibility for the results of errors or omissions beyond its control. Oki Data also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this document will not affect the applicability of the information in it.

  • Page 3: Table Of Contents

    Contents 1. Setting Up the Printer ..................6 1.1 Select a Location ......................6 1.2 Where to install your printer ..................6 1.3 Unpacking ........................7 1.4 Installing the Printer ..................... 8 1.4.1 Remove the Shipping Restraints................. 9 1.4.2 Connecting the Computer ..................10 1.4.3 Connecting the Cash Drawer ..................10 1.4.4 Connecting the Power ....................10 1.4.5 Installing the Ribbon Cartridge .................11...
  • Page 4 6.2.1 Code table ......................84 6.2.1.1 USA ........................84 6.2.1.2 Canada-French ....................85 6.2.1.3 Multilingual ......................86 6.2.1.4 Portugal ......................87 6.2.1.5 Norway ......................88 6.2.1.6 BRASCII ......................89 6.2.1.7 Abicomp ......................90 6.2.1.8 Multilingual 858 ....................91 6.2.1.9 ISO 8859/15 .....................92 6.2.1.10 International character set table .................93 OKIPOS 426S...
  • Page 5 7.1.2.2 Using Paper Size that is 187.96 mm (7.4") or more and less than 215.9 mm (8.5") in width ..............103 7.2 About the Validation Printing Area ................104 7.3 Setting Tractor Paper in the Tractor Unit ...............107 7.4 Orientation .......................107 8. Oki contact details ..................108 User’s Guide: English...

  • Page 6: Setting Up The Printer

    Install your printer on as flat and stable a desk as possible. Also, make sure that the following installation space is reserved for services such as operation, daily check and replacement of supplies to maintain the performance of your printer. Approximately 100mm 50mm or less 750mm 600mm or more OKIPOS 426S...

  • Page 7: Unpacking

    1. Unpacking Getting Started Check the contents: Printer Ribbon Cartridge If anything is missing or damaged, contact your dealer immediately. User’s Guide: English...

  • Page 8: Installing The Printer

    1.4 Installing the Printer Getting to Know the OKIPOS 46S Printer Cover Control Panel Paper Guide Cover Open Bar ON/OFF Switch OKIPOS 426S...

  • Page 9: Remove The Shipping Restraints

    1.4.1 Remove the Shipping Restraints Important! Save the shipping restraints and packing materials in case you ever need to ship the printer. 1. Remove the five pieces of shipping tape. 2. Press the Cover open bar and open the printer cover. 3.

  • Page 10: Connecting The Computer

    2. Insert the cable connector from the Cash Drawer to the area indicated by DM above until you hear a clicking sound. 1.4.4 Connecting the Power 1. Attach the power cord to the back of the printer. 2. Plug the opposite end into a suitable grounded outlet. OKIPOS 426S...

  • Page 11: Installing The Ribbon Cartridge

    1.4. Installing the Ribbon Cartridge 1. Make sure the printer is turned OFF. 2. Press the Cover open bar and open the printer cover. 3. Center the printhead. User’s Guide: English...
  • Page 12 Ribbon Shield Take-up Knob Grip Points 5. Install the new ribbon cartridge. 1) Hold the ribbon cartridge as shown below. 2) Fit the grooves in the flat end of the cartridge over the posts on the ribbon plate. OKIPOS 426S...
  • Page 13 3) Lower the front of the cartridge over the printhead until it snaps into place. 4) Turn the knob (1) in the direction of the arrow on the cartridge to take up the ribbon slack. User’s Guide: English...

  • Page 14: Installing The Paper

    Note 2: The standard paper weight is 57g/m (15lb) for the first sheet and 45 g/m (12lb) for the second sheet of multipart paper. Note 3: Multiple part paper should be fastened by spot-pasting or crimpling on both sides and should be free of wrinkles. OKIPOS 426S...

  • Page 15: Roll Paper

    1..1 Roll paper 1..1.1 Adjusting the Roll Paper Guide 1. Adjust paper guide A (1) to the paper width. Paper width: 2.75 inches (69.5 mm) or 3.00 inches (76.2 mm) 1) When the printer is shipped, the paper width is set for wide roll paper (3 inch or 76.2 mm width).
  • Page 16 2) Keeping the paper in position, turn the adjusting screw counter-clockwise to release the paper guide B (2) and adjust it to fit the roll paper edge. After paper width adjustment, turn the screw (3) clockwise to fasten the paper guide B. OKIPOS 426S...

  • Page 17: Loading The Roll Paper

    1..1. Loading the Roll Paper Use roll paper that matches the specifications. Note: The printer must be turned on before installing the roll paper. 1. Fold the paper so it is exactly straight and even (1), and will not tear off jaggedly (2). 2.

  • Page 18: Adjusting The Roll Paper Near End Sensing Position

    5. Set the detector scale to the position you determined from the table by moving the detector screw up or down. The numbers #1, #2, #3... are not marked on the detector scale. 6. Secure the detector screw; then close the printer cover. OKIPOS 426S...

  • Page 19: Cut-Sheet Paper (Slip)

    1.. Cut-Sheet Paper (Slip) 1...1 Loading the Cut-Sheet Paper (Slip) Use the paper that matches the specifications. Note: The printer must be turned on before loading the paper. 1. Turn on the printer. 2. Insert the paper as shown below, while butting the right edge of the paper against the paper guide.

  • Page 20: Cut-Sheet Paper (Validation/Stub)

    2. With the right edge of the paper positioned at the “ ” mark on the Cover Top, insert the paper. Note: To feed paper along the long edge, remove the Piece (1) on the left side of the printer cover and set the paper. OKIPOS 426S...
  • Page 21 How to remove the Piece 1. Press the Cover Open Bar and open the Printer Cover. CAUTION: Printhead may be very hot. 2. Unlock the latch (1) of the Piece Cover B (2) and remove the Piece Cover B. 3. Remove Piece Cover A. User’s Guide: English...
  • Page 22 4. Close Printer Cover. * Paper has been set for long-edge printing. * Store the removed Piece in a safe place so that you will not lose it. OKIPOS 426S...

  • Page 23: Sprocket Paper (Tractor)

    1..4 Sprocket Paper (Tractor) 1..4.1 Loading the Sprocket Paper (Tractor) Use the paper that matches the specifications. Note: The printer must be turned off before inserting the tractor. 1. Turn off the printer. Move the Paper Guide all the way to the right. Pull the hooks (1) on the tractor cover (2) in the arrow direction and remove the tractor cover.
  • Page 24 5. Pull up on the lock levers (1) and open the tractor covers (2), then move the right tractor over to fit the width of the paper. Center the support (3) between the tractors. 6. Place the first two holes in the paper over the tractor pins (4) on either side and close the tractor covers. OKIPOS 426S...
  • Page 25 7. Move the left tractor to align the edge of the paper with the appropriate reference mark ( ), and push back the right lock lever (2). 8. Fine-tune the position of the right tractor to center the holes in the paper on the pins, and push back the left lock lever (1).
  • Page 26 The deviation to right and left should be 5cm or less. 3) The ejected paper should be folded squarely on the floor to enable smooth paper conveyance. Inappropriate paper setting may deteriorate print quality. 50mm or less 750mm 600mm or more OKIPOS 426S...

  • Page 27: Using The Printer

    . Using the Printer .1 Operation Panel Functions Note: OEM Fiscal Type: The operation panel is under the control of the fiscal control PCB. Consequently, the fiscal control PCB should be removed before self tests. Alternatively, disconnecting the cable from the main control PCB is acceptable. Operation Panel Specification POWER LED Green LED1...

  • Page 28: Switching Functions

    500ms continuous push. * Printing will not be started Feeds a line of Receipt paper (Receipt LF) * Enabled regardless of media mode and media state. * The above switch operations in principle correspond to special commands for switch control. OKIPOS 426S...

  • Page 29: Led Function

    .1. LED Function Blinking POWER Green Powered On Powered off LED 1 Recoverable Alarms Normal state *Unrecoverable Alarms (ERROR) *Slip Feed/Eject Alarm (blinking pattern indicates *Auto Loading Alarm alarm type) *Auto Parking Alarm *See the table in section 4.1 *Media Mismatch Alarm (1) *SP Thermal alarm *Media Mismatch Alarm (2) (LED2 blinks concurrently)

  • Page 30: Local Functions

    ..1 Types Local Functions Local test All letters & rolling ASCII continuous printing test (Receipt) All letters & rolling ASCII continuous printing test (Slip/Sprocket) Sample data continuous printing test (Validation) Menu function (Receipt) Hexadecimal dump (Receipt) Platen maintenance mode OKIPOS 426S...

  • Page 31: Starting

    .. Starting Local Functions All letters & rolling ASCII continuous printing test (Receipt) All letters & rolling ASCII continuous printing test (Slip/Sprocket) Sample data continuous printing test (Validation) Menu function (Receipt) Hexadecimal dump (Receipt) Platen maintenance mode Notes: 1. To make the above modes are active, turn on the printer while pressing the switches marked with a circle and releasing those with a cross.

  • Page 32: Menu Function (Receipt)

    139.7mm 215.9mm 279.4mm 304.8mm Paper End Signal Selects the paper sensor that enables Paper O Yes (RNE or RE) End Signal. Yes (RE) • RNE: Receipt/Journal Near End Sensor • RE: Receipt/Journal End Sensor O = default value OKIPOS 426S...
  • Page 33 Item Function Sets MICR Read Control Selects the retry action for MICR read. O Confidence • Confidence : MICR read retry is enabled. Normal • Normal : MICR read retry is disabled. Re-load Function Selects the special feature for auto cut. Valid Invalid Top Margin...

  • Page 34: How To Operate

    “Menu End” and returns to the same initialized state as at power on. Advances the Menu Items, one at a time. From the last Menu Item, returns to the first Menu Item. Feeds the receipt, by one line OKIPOS 426S...

  • Page 35: Hex Dump Function (Receipt)

    .4 Hex Dump Function (Receipt) This function converts received data, as it is, to character codes, and prints it in the Receipt mode. The printed contents are as follows: Upon receiving one byte, the printer divides it into three characters, High-nibble, Low-nibble and a space. Regarding these as 1 block, the printer prints 8 blocks in one line, then, prints the same data in the character format.

  • Page 36: Maintenance

    .1 Replacing the Ribbon Cartridge When printing becomes light, replace the Ribbon Cartridge, following the procedure shown below: 1. Make sure the printer is turned OFF. 2. Press the Cover open bar and open the printer cover. 3. Center the printhead. OKIPOS 426S...
  • Page 37 4. Swing the front of the cartridge up off the printhead, then lift the cartridge out and discard it. Caution! The printhead may be HOT! 5. Unpack the ribbon cartridge. Important! Do NOT remove the ribbon shield (1) from the ribbon! Ribbon Shield Take-up Knob Grip Points...
  • Page 38 3) Lower the front of the cartridge over the printhead until it snaps into place. 4) Turn the knob (1) in the direction of the arrow on the cartridge to take up the ribbon slack. OKIPOS 426S...

  • Page 39: Replacing The Roll Paper

    . Replacing the Roll Paper When the Roll is used up, load a new one, following the procedure shown below. 1. Press Form Feed switch (1) and eject all the Receipt Paper (2). 2. Press the Cover Open Bar and open the Printer Cover. * Caution! The printhead may be HOT! 3.

  • Page 40: Clearing Paper Jams

    When Roll Paper gets jammed, remove the paper, following the procedure shown below: 1. Press Cover Open Bar and open the printer cover. * Print head may be very hot. Exercise caution. 2. Cut the Roll Paper (1) at the location (2) shown below. OKIPOS 426S...
  • Page 41 3. Press the two levers (1) on either side at the same time as shown, lift the plate assembly and gently pull out the jammed paper in the direction of the arrow. Note: Be careful not to leave small pieces of paper. 4.
  • Page 42 * Print head may be hot. Exercise caution. 2. Slowly pull out the paper upward or toward you while pulling the lever (1) [marked “PULL”] toward you. Note: Be careful not to leave small pieces of paper behind. OKIPOS 426S...
  • Page 43 Sprocket Paper When sprocket paper gets jammed, remove the paper, following the procedure shown below. 1. Open the Tractor Cover (1) and cut the sprocket paper at the perforation (2). 2. Press the Cover Open Bar and open the printer cover. 3.

  • Page 44: Troubleshooting And Repair

    Note: OEM Fiscal Type: The alarm indication works only when the Fiscal Control PCB is not mounted. POWER LED Green LED1 LED2 Orange LED3 Orange LED4 Green Operation Panel OKIPOS 426S...

  • Page 45: Details Of Alarm Indications

    4.1.1 Details of Alarm Indications No. of times LED Malfunction contents What you should do 1 blinks Program ROM Alarm Contact the store where you bought the printer or the Maintenance Service Center. EEPROM Alarm Internal RAM Alarm External RAM Alarm Homing Alarm Is the media jammed? If it is, remove the jammed paper.

  • Page 46: Led Indication

    Waiting for Media to be removed. (STATUS) loading) state. Remove the media. Load the media. SP Thermal Alarm (blinks simultaneously with LED1) The print head area has become hot. As soon as the temperature goes down, the printer recovers automatically. T1=T2=500msec T1 T2 OKIPOS 426S...

  • Page 47: Specifications

    5. Specifications .1 Introduction .1.1 Scope of Application This specification applies to OKIPOS 426S, a 9-pin type serial dot impact printer. This device is a desk-top serial dot impact printer, used exclusively as the output device for POS (Point-of-sales) system.
  • Page 48 Options Front Tractor: User Option OKIPOS 426S...

  • Page 49: Configuration

    5.1.3 Configuration Standard Printer Configuration Printer Cover Control Panel Paper Guide Cover Open Bar ON/OFF Switch User’s Guide: English...

  • Page 50: General Specifications

    41 to 104 32 to 109.4 °F (5 to 40) (0 to 43) (°C) Relative Humidity 20 to 80 10 to 90 Avoid condensation at all times. .. Agency Approvals UL60950-1, 2nd CSA: CSA 22.2 NO.60950-1-07 FCC: Class A OKIPOS 426S...

  • Page 51: Communication Interface Specifications

    5.3 Communication Interface Specifications ..1 USB Interface Universal Serial Bus Specification Revision 2.0 Full speed compliance. Connector • Printer Side: “B” Receptacle (Upstream Input to the USB Device) • Cable Side: Series “B” Plug Cable • Cable Length: Max. 5m (A cable must be met USB Spec Rev 2.0 for normal operation) Note: Cable is not provided.

  • Page 52: Cash Drawer Connector

    Cash Drawer drive 1 CASHST-N From Cash Drawer Cash Drawer status signal +24V To Cash Drawer +24VDC power supply CASHDV2 To Cash Drawer Cash Drawer drive 2 Signal ground Note: Pin arrangement 1 2 3 4 5 6 OKIPOS 426S...

  • Page 53: Physical Characteristics

    .4 Physical Characteristics .4.1 Printhead Print method: Impact dot matrix Number of dot wires: 9 wires Dot wire diameter: 0.34 mm (0.013") .4. Printer Outside dimensions (without Tractor) 265 mm (10.43") (W) x 218 mm (8.58") (H) x 337 mm (13.27") (D) 265mm (10.43inch) 25.5mm (1inch) 337mm (13.27inch)

  • Page 54: Logical Characteristics

    (Tractor) Double wide size 10 CPI 8.2 CPI 13.3 CPI 10.9 CPI Roll paper 28 (25 * 22 (20 * 37 (33 * 30 (27 * Cut Sheet/ Validation Sprocket paper (tractor) ) Apply narrow size roll paper. OKIPOS 426S...

  • Page 55: Font Size/Cell Size

    ..4 Font Size/Cell Size Font type Font size (H x V) Cell size (H x V) 7 x 7 dots 9 x 9 dots Utility 9 x 7 dots 11 x 9 dots 16.4 .. Line Feed Pitches 6 LPI [4.23 mm (0.167")] A variable line feed pitch of n/144 inch (integer n: 0 <...

  • Page 56: Media Specifications

    Number of copies: Original plus 1 copy Thickness: 0.18 mm max. (0.007" max) Note: The standard paper weight is 57g/m (15 lb) for the first sheet and 45 g/m (12 lb) for the second sheet of multi-part paper. OKIPOS 426S...

  • Page 57: Sprocket Paper (Tractor)

    .7.4 Sprocket Paper (Tractor) Paper Width: 76.2 to 215.9 mm (3" to 8.5") Paper Length: 76.2 to 355.6 mm (3" to 14") Single part Weight: 52 to 81g/m (14 to 21 lb) Thickness: 0.065 to 0.1 mm (0.0026" to 0.0039") Multipart-carbon lined or pressure sensitive Weight: 34 to 40g/m...

  • Page 58: Appendix: Media Specifications

    This distance may be adjusted from 2.54 to 27.94 mm (0.1~1.1 inch) by moving the paper guide. D=2.54 mm may be set only for a sheet whose W=190.5mm (7.5 inch) or shorter. Printing area width Max 160.02mm (6.3 inch) OKIPOS 426S...
  • Page 59 Note 1 The height-width ratio must be 1: 2/3 – 2. Note 2 Use a flat sheet free of curls, bends (especially those on its edges), cambers, wrinkles, etc. If a paper is not flat, it may be contaminated with ink due to contact with the ribbon.
  • Page 60 If a sheet is not flat, it may be contaminated with ink due to ink ribbon contact. Note 3 Before printing on a stub, fold the other sheets backward to make the stub available for print as shown in the fig. below. Fold backward Stub OKIPOS 426S...
  • Page 61 Multi-part Paper The standard multi-part paper is the one whose top edge is pasted. Pasted securely (1mm) Paper inserting direction Base line Printing area First character position Against the perpendicular to the Base line Printing surface ±0.2mm or less Standard media are in A5 and B5 sizes. Symbol Designation Standard Value...
  • Page 62 Note 4 Only a multi-part slip can be used for printing. (Insert it from the front side of the printer.) Caution : Do not use labels or similar paper media. Do not use any paper media such as label that does not have a smooth surface. You may hear some abnormal noise if you use. OKIPOS 426S...
  • Page 63 5.7.5.1.2 Paper Quality The paper in the following quality may be used. Type Paper Quality Single-part paper and Stub High quality paper Multi-part paper Pressure-sensitive paper, Carbon-lined paper Paper smoothness must be 90 ~ 7 sec. for Beek and 75 ~ 300 sec. for Sheffield. If you use paper other than that specified, test it to verify that it prints without problems.
  • Page 64 Make sure that the edges of holes are even with the paper surface. If they stick up, the printhead may not move smoothly. The positions of holes should be as illustrated in the figure below. 10 or more Paper inserting direction 6 or less 10 (shaded area) Do not print. Unit: mm OKIPOS 426S...
  • Page 65 5.7.5.1.6 Perforated Lines Do not use paper with perforations. It may invalidate your warranty. If you choose to use perforated paper, be sure to test it thoroughly. Follow these guidelines: The specification of a perforated line corresponds to that of a perforated line on Sprocket Paper. Do not print within the shaded area adjoining the perforations.
  • Page 66 (b) If a sheet has a bending height of 2 mm or more within 15 mm from the bending line (B), do not use it for printing. Circular arc 2mm or less Adjusted to make the height 2mm or less 15mm or more OKIPOS 426S...

  • Page 67: Roll Paper

    .7.. Roll paper 5.7.5.2.1 Paper size and Printing area Multi-part Paper First character position Cutting position (for manual cutting) Printing area Symbol Designation Standard Value Roll paper width 69.5/76.2 mm (2.73/3 inch) ±0.5mm (0.02 inch) Roll paper outside diameter 101.6mm (4 inch) or less Core inside diameter 10mm (0.4 inch) or more Left margin...
  • Page 68 (14~21 lb) 2 copies 0.18mm or less sensitive paper (Original+1copy) Note 1 The standard paper weight is 57g/m (15lb) for single-part paper and 57g/m (15lb) for the original sheet and 45g/m (12lb) for second sheet of multi-parts paper. OKIPOS 426S...

  • Page 69: Sprocket Paper (Tractor)

    .7.. Sprocket Paper (Tractor) 5.7.5.3.1 Paper size and Printing area 6.35 6.35 Printing area Printable area First character position Paper inserting direction Unit: mm Maximum 160.02 The specification for the printable area differs from that for the printing area. User’s Guide: English...
  • Page 70 Note 5 Auto parking function of Sprocket paper can operate up to 14". Caution : Do not use labels or similar paper media. Do not use any paper media such as label that does not have a smooth surface. You may hear some abnormal noise if you use. OKIPOS 426S...
  • Page 71 5.7.5.3.2 Paper Quality Paper of the following quality may be used. Type Paper Quality Single-part paper High quality paper Multi-part paper Pressure-sensitive paper, Carbon-lined paper or Interleaved paper Note 1 Interleaved paper is a multi-part paper with carbons inserted between copies. Paper smoothness must be 90 ~ 7 sec.
  • Page 72 Paste shall be applied evenly to the fixing line, whose width shall be 1 – 2 mm. Press the pasting line to prevent lifting. Be careful not to generate distinct wrinkles. Do not let paste leak out paper edges. Pasting line D 3rd 1~2mm OKIPOS 426S...
  • Page 73 Crimping Crimp paper on both right/left sides. Apply crimping from the front surface, making no protrusion on the surface. All the sheets must be engaged securely with each other at the crimp position free of lifting. Use a double-type crimp and apply crimping in the direction to produce the crimped mark horizontal to the paper right/left edges.
  • Page 74 Deviation of the sprocket hole positions may be caused when each copy or tier is piled to produce multi-part paper. Use multi-part paper whose sprocket deviation is 0.4 mm or less. Sectional View of Sprocket Holes Sprocket hole Deviation 0.4mm or less OKIPOS 426S...
  • Page 75 5.7.5.3.7 Binding Holes Do not use a paper with punched holes. It may invalidate your warranty. If you choose to use punched paper, be sure to test it thoroughly. Follow these guidelines: Do not print within 5 mm of the hole center. Make sure that paper dust is not left on the paper.
  • Page 76 If a corner cut passes over the paper sensor, a false Paper End signal may result. The positions of corner cuts should be as given in the fig. below. 5.05 5.05 Uncut part of the perforated line Corner cut No printing within the shaded area Unit: mm OKIPOS 426S...
  • Page 77 5.7.5.3.9 Wrinkle, Pleat and Swell Use paper, which has been folded zigzag on horizontal perforated lines, free of wrinkles and pleats. Newly unpacked paper often has wrinkles or pleats on the first and last pages. Please eliminate pages having wrinkles and pleats before printing. Do not utilize paper whose folding position inflates as illustrated in the fig below, because it may cause malfunction in paper feed.

  • Page 78: Paper Feed Specifications

    With Sprocket paper (Tractor) feed, the paper end is detected when the remaining paper length is about 19.6mm (0.77 inch) from the last printed line. Upon detecting the paper end, the printer stops printing and sends a paper end signal to the interface. OKIPOS 426S...

  • Page 79: Ribbon Specifications

    5.9 Ribbon Specifications Genuine Oki Data cartridge ribbon Ink color: Black Ribbon life: Approximately 5 million characters (in Utility print quality mode) .10 Reliability MTBF (mean time between failures) 10,000 hours of power-on time at 25% duty cycle. Page density: 35% Printhead life 220 million characters (300 million dot/pin) (average) in Utility Print Quality mode.

  • Page 80: Command Description

    Example: DLE DLE EOT n is treated as command DLE EOT n. DLE sequences Command Sequence Functions Print Start 10 04 DLE EOT n Real-time status sending 10 04 08 DLE EOT BS n Real-time MICR status sending 10 05 DLE ENQ n Real-time request to Printer OKIPOS 426S...

  • Page 81: Esc Sequence

    6.1. ESC Sequence Command recognition ESC codes in combination are handled the same way that DLE codes are handled. ESC sequence list Print Command Sequence Functions Start 1B OF ESC SI Condense Designate 1B 10 44 ESC DLE D Sets up menu items Pno Pa1 Pb1…Pan Pbn 1B 10 61 ESC DLE a Pno n...
  • Page 82 Prints QR code data m n4 n5 n6 n7 * The ESC DLE sequence other than No. 2~8, 53~55 will be ignored by the sequence. The data that follows Pno will be ignored by as many bytes as set by Pno. OKIPOS 426S...

  • Page 83: Fs Sequence

    6.1. FS Sequence Command recognition FS codes in combination are handled the same way that DLE codes are handled. FS Sequence table Print Command Sequence Functions Start 1C 61 30 FS a 0 n Reads Check paper 1C 61 31 FS a 1 Loads Check paper to the print start position...

  • Page 84: Character Set

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. OKIPOS 426S...

  • Page 85: Canada-French

    6..1. Canada-French 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. User’s Guide: English...

  • Page 86: Multilingual

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. OKIPOS 426S...

  • Page 87: Portugal

    6..1.4 Portugal 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. User’s Guide: English...

  • Page 88: Norway

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. OKIPOS 426S...

  • Page 89: Brascii

    6..1.6 BRASCII 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH and 9xH are ignored.

  • Page 90: Abicomp

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH, 9xH, ExH, and FxH are ignored. (Shaded areas) OKIPOS 426S...

  • Page 91: Multilingual 858

    6..1.8 Multilingual 88 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. User’s Guide: English...

  • Page 92: Iso 8859/15

    If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH and 9xH are ignored. (Shaded areas) OKIPOS 426S...

  • Page 93: International Character Set Table

    6..1.10 International character set table ESC R n Country (00)H American & (01)H French & à º ç § é ù è ¨ (02)H German & § Ä Ö Ü ä ö ü ß (03)H British £ & (04)H Danish I &...

  • Page 94: Using The Unitool Printer Driver

    The following two types of paper are usable for Slip. - Paper sizes that are registered as an Icon in Paper Properties/Paper Tab/Paper Size. - Custom Size As each paper size is used differently, refer to the various paper setups described in 7.4 and after. OKIPOS 426S...

  • Page 95: Using Registered Paper Icons

    7.1.1 Using Registered Paper Icons Paper width is 190.5 mm (7.5") or more and up to 215.9 mm (8.5") inclusive. Printing area Left Margin 27.94mm (1.1 inch) Right Margin 27.94mm (1.1 inch) Printable Maximum Width 160.02mm (6.3 inch) Slip Tray Left Side Paper Guide Slip Tray Right Side Left Margin 2.54mm (0.1 inch)
  • Page 96 Printing area Printable Maximum Width 160.02mm (6.3 inch) Right Margin 27.94mm (1.1 inch) Slip Tray Left Side Paper Guide Slip Tray Right Side Normal operation Paper Guide shifted toward the left. OKIPOS 426S...
  • Page 97 Paper Width is less than 190.5 mm (7.5"). The printing area, when printing paper that is less than 190.5mm (7.5") in width, is illustrated below. For paper 190.5 mm (7.5") or more and less than 215.9 mm (8.5"), slide the Paper Guide toward the left as needed so that the entire printing area on the paper shifts toward the right.

  • Page 98: Using Custom Size

    The left margin that is actually set up for using 101.6 mm (4.0") paper can be calculated according to the following formula. (Width of Custom Paper Size - (Width of paper size actually used) + (Left Margin for paper used) fixed) 187.96 mm (7.4") - 101.6 mm (4.0") + 2.54 mm (0.1") or more OKIPOS 426S...
  • Page 99 Set the right margin at 27.94 mm (1.1") (Printing disabled area 25.4 mm [1.0"] + Slip paper’s minimum right margin 2.54 mm [0.1"]) or more. Image of actual printing area Target Printing Area Printing Area with margin adjusted Left margin for paper to be used 2.54mm (0.1 inch) or more Width of Paper Size actually used 101.6mm (4.0 inch) Right margin for paper to be used 25.4mm (1.1 inch) or more (including the printing disabled area)
  • Page 100 187.96 mm (7.4") - 101.6 mm (4.0") - 25.4 mm (1.0") + 2.54 mm (0.1") or more Set the right margin at 27.94 mm (1.1") (Printing disabled area 25.4 mm [1.0"] + minimum right margin 2.54 mm [0.1"]) or more. OKIPOS 426S...
  • Page 101 With the Paper Guide pushed to the left, insert 101.6 mm (4.0")-wide paper to print. An image of actual printing area Target Printing Area Printing Area with margin adjusted Left margin for paper to be used: 2.54mm (0.1 inch) or more Width of actually used Paper Size 101.6mm (4.0 inch) Right margin for paper to be used: 2.54mm (0.1 inch) Actually set right margin 25.4mm (1.1 inch) or more (including the printing disable area)
  • Page 102 With Paper Guide pushed to the left, insert 101.6 mm (4.0")-wide paper to print. Target Printing Area Printable Maximum Width 160.02mm (6.3 inch) Right Margin 27.94mm (1.1 inch) Slip Tray Left Side Paper Guide Slip Tray Right Side OKIPOS 426S...

  • Page 103: Using Paper Size That Is 187.96 Mm (7.4") Or More And Less Than 215.9 Mm (8.5") In Width

    7.1.. Using Paper Size that is 187.96 mm (7.4") or more and less than 1.9 mm (8.") in width Custom Size is variable in width in the range of 187.96 mm (7.4") - 215.9 mm (8.5"), but when the designated width is more than 187.96 mm (7.4"), you must take the following points into consideration when creating print data.

  • Page 104: About The Validation Printing Area

    Inserting Direction Symbol Designation Standard Value Paper width 70 mm (2.7") or more Print starting position 8 mm (0.7") or less Left margin 2.54 mm (0.1") or more Right margin 2.54 mm (0.1") Printing area width Max 160.02 mm(6.3") OKIPOS 426S...
  • Page 105 The following shows examples of print data created in Windows applications in each Paper source (L_Alignment/Center/R_Alignment). Data in application Print result ABCDEF ABCDEF ABCDEF ABCDEF ABCDEF ABCD ABCDEF Center Line ABCDEF (L_Alignment is used) (Center is used) (R_Alignment is used) (L_Alignment is used) (Center is used) (R_Alignment is used)
  • Page 106 [Width of Custom Paper Size fixed] - [Width of paper size actually used] + [Left margin for paper to be used] 162.56 mm (6.4") 101.6 mm (4.0") 2.54 mm (0.1") Also, set the right margin at the minimum of 2.54 mm (0.1") or more. OKIPOS 426S...

  • Page 107: Setting Tractor Paper In The Tractor Unit

    7. Setting Tractor Paper in the Tractor Unit This section describes how to set Tractor Paper in the Tractor Unit. The maximum printable width per line with Tractor paper is 160.02 mm (6.3"). Push the Tractor Paper Guide against the Right Tractor Unit’s right edge when using this print driver. (Slide the Paper Guide toward the left as needed to change the printing area on the paper.) Basically, the concept of setting the printing area in the horizontal direction and the margins for Custom paper is the same as for Slip.

  • Page 108: Oki Contact Details
