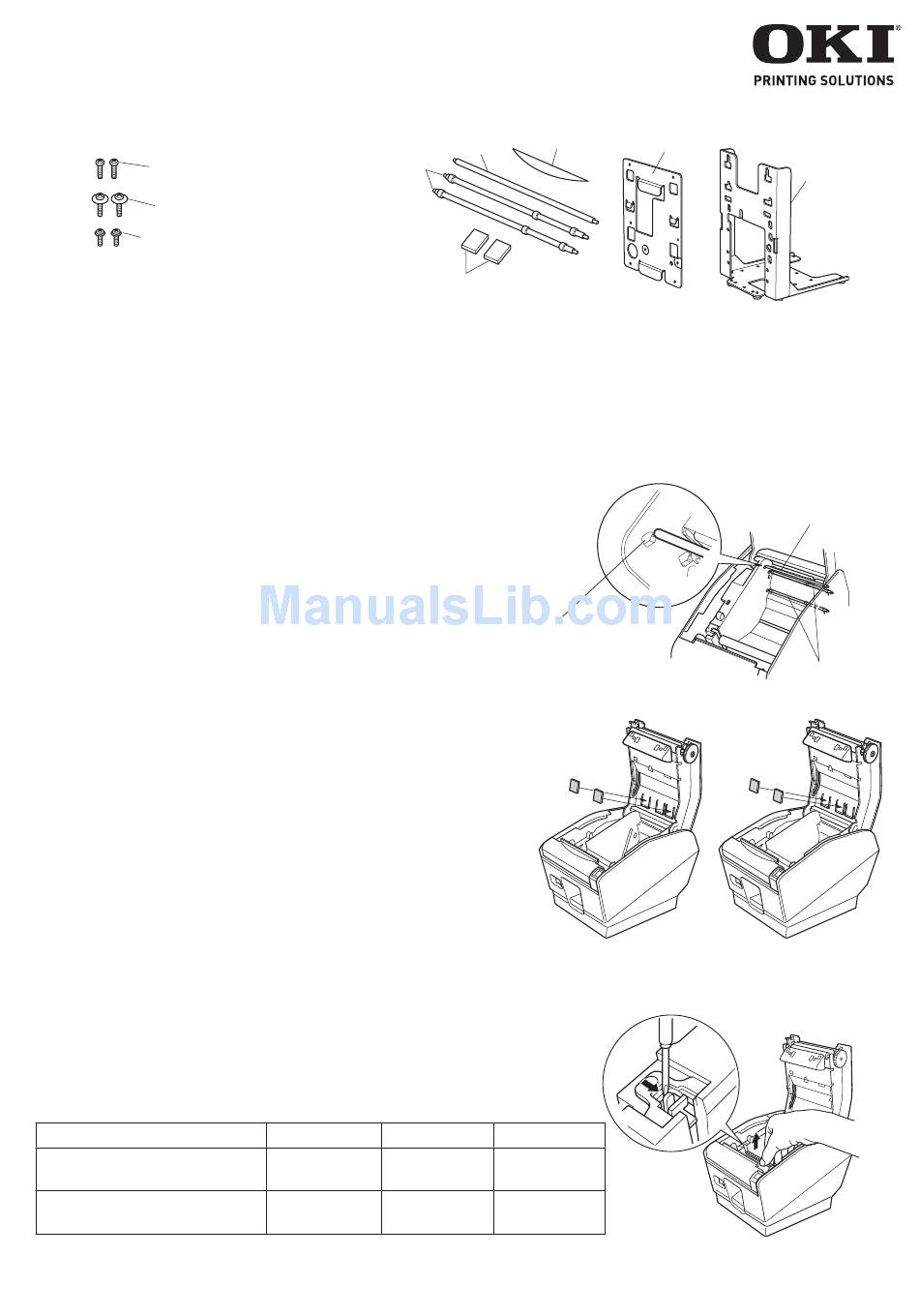

Attaching the OKIPOS 407/OKIPOS 407II vertical stand

1. Unpacking :

Confirm that all accessories are included.
M3 ×12 screws (2)
(for attaching the holder plate)
M3 ×12 screw with flat washer (2)
(for attaching the holder plate)
M4 × 8 screws (2)
(for attaching the stand)
Note: For OKIPOS 407II, two shafts (D) are already attached, so this cannot be used.
2. Attachment procedures :
Note: Ensure that power that is supplied to the printer and that all devices connected to the printer have been switched
OFF and that the cables have been unplugged before starting the modification. If the AC adapter is connected to
the printer, unplug it from the main socket.
The base for setting the stand should be within a range of ±2 ° in reference to the horizontal direction.

2-1. Attaching the shafts

1 Attach the shaft (C) for OKIPOS 407 / OKIPOS 407II.
2 Attach the two shafts (D) for OKIPOS 407.
Note: For OKIPOS 407II, two shafts (D) are already attached.

2-2. Attaching the roll stoppers

Wipe the area into which the rubber feet will be
affixed in order to remove any grime; then, affix
the roll stoppers. The positions for affixing them
will vary depending on the paper width.

2-3. Removing the tension bar unit

When using thermal paper roll, the tension bar unit may or
may not be necessary, depending on the paper thickness or
the paper width. If the tension bar unit is unnecessary, remove
it in accordance with the procedure indicated below. The
tension bar unit is unnecessary when using full-face thermal
label paper roll or thermal label paper roll (tack label paper).
Paper width (mm)
Paper thickness
between 65 μm and 100 μm
Paper thickness
between 101 μm and 150 μm
Use a regular screwdriver to remove the clips at both ends of
the bar to remove the tension bar unit.
58398903
Shaft(C)
Shafts(D)
82.5
79.5
Necessary
Necessary
Unnecessary
Unnecessary
Brand seal
Roll stoppers
Push in the left and right
ends of the shaft.
fig.1 Attaching the shafts
82.5 or 79.5 mm width
fig.2 Attaching the roll stoppers
57.5
Unnecessary
Unnecessary
Holder plate
Stand
Shaft(C)
Shafts(D)
57.5 mm width
fig.3 Removing the tension bar unit
©2009 OKI Data Americas, Inc.
