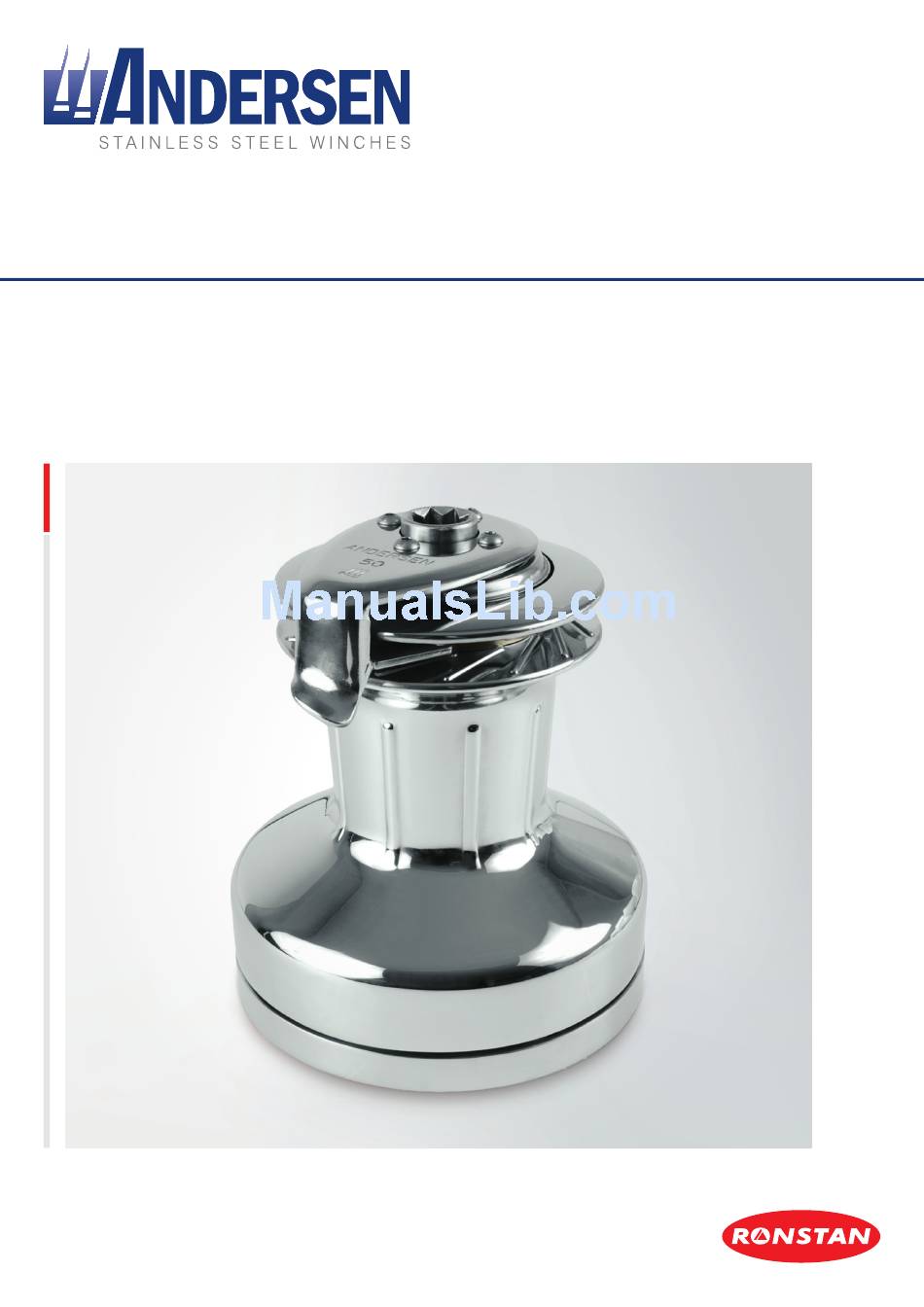

- Page 1 PRODUCT MANUAL 46ST 46ST FS (V.4.1) (V.4.1.F) 50ST 50ST FS (V.1.0) (V.1.0.F) RON-WPM-710246-46ST/46STFS/50ST/50STFS-Rev.2...
- Page 2 46ST (V.4.1) 46ST FS (V.4.1.F) 50ST (V.1.0) 50ST FS (V.1.0.F) EXPLODED VIEW ITEM No. 3 ITEM No. 3 MODEL ST - 544521 MODEL ST FS - 544530 ITEM No. 12 - 775600 / 775650 ITEM No. 13 - 775500 13.1 12.1...
- Page 3 46ST (V.4.1) 46ST FS (V.4.1.F) 50ST (V.1.0) 50ST FS (V.1.0.F) PARTS LIST ITEM NO. QTY. DESCRIPTION PART NO. Screw ISO7380-A4-M6x12 Self-tailing arm - Model 46ST 734315 Self-tailing arm - Model 48ST 734355 Self-tailing top complete - Model ST 544521 Self-tailing top complete - Model ST FS...
- Page 4 46ST (V.4.1) 46ST FS (V.4.1.F) 50ST (V.1.0) 50ST FS (V.1.0.F) MOUNTING INSTRUCTIONS Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the position numbers in the parts list. Tools required for the installation: • Allen key (4 mm)
- Page 5 10. Assemble in reverse order. During assemble, by the use of a small soft brush lightly grease all gear teeth, drive shaft, roller bearing, shafts, pawls, springs and bushings. Pawls should only be lubricated with a very thin film of ANDERSEN WINCH GREASE. It is very important that pawls can move freely.
-
Page 6: General Information
Pawl arm springs should be replaced every second year. Spare arm springs and other parts that may be required are included in the ANDERSEN Service Kit. Please refer to the service instruction for the Service Kit suitable for the specific winch. - Page 7 Do not install or operate this winch before reading and fully understanding the contents of this Product Manual. Stay Alert When Operating Andersen winches are very powerful and have the potential to cause significant damage and/or serious injury if used improperly or without due caution and vigilance. Operators Must be Trained...
- Page 8 PRODUCT MANUAL 46ST (V.4.1) 46ST FS (V.4.1.F) 50ST (V.1.0) 50ST FS (V.1.0.F) WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.ronstan.com/warranty Manufactured by Ronstan Denmark ApS. Jægervænget 36 - 7100 Vejle - Denmark office@ronstan.dk - www.andersenwinches.com...
