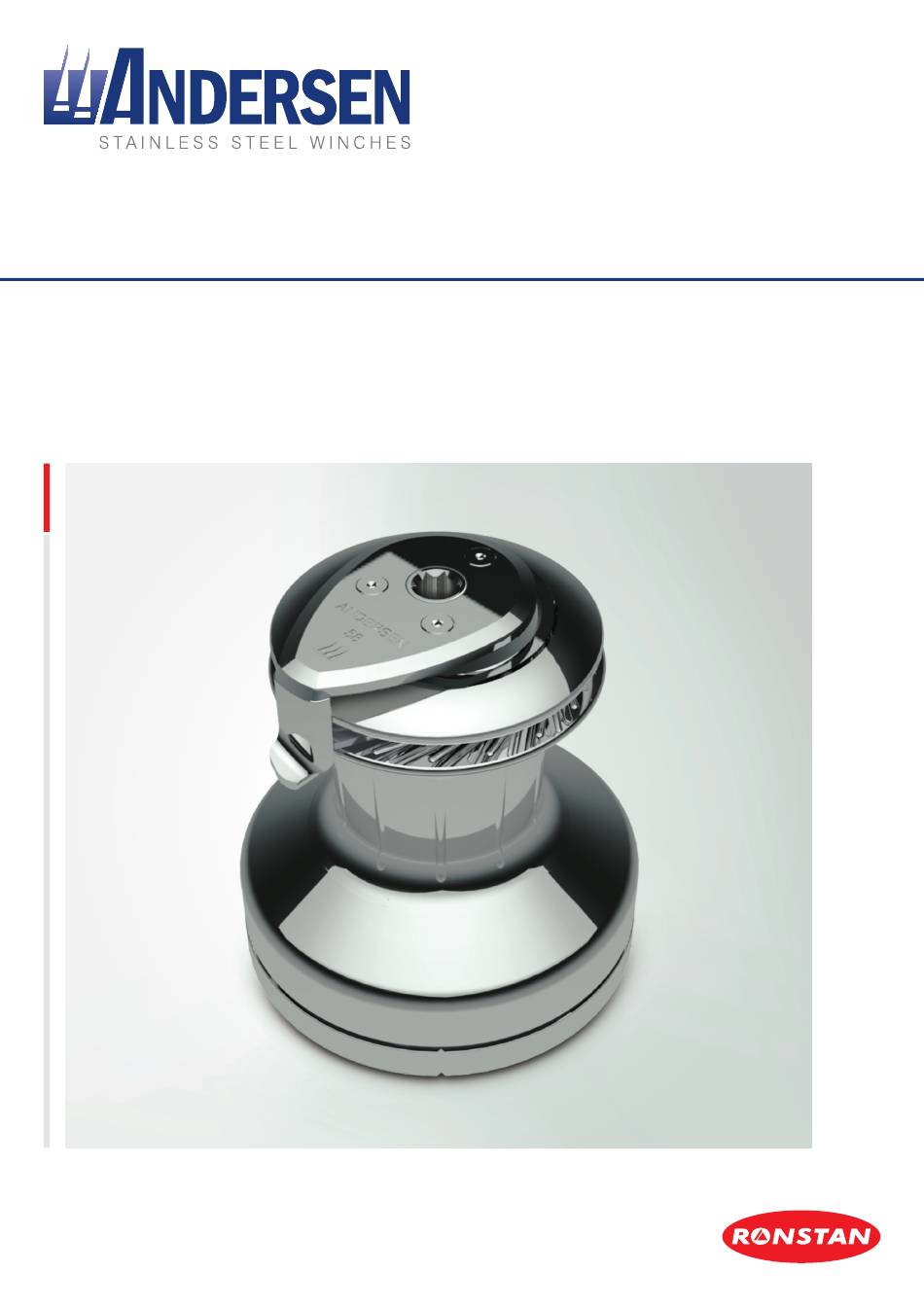

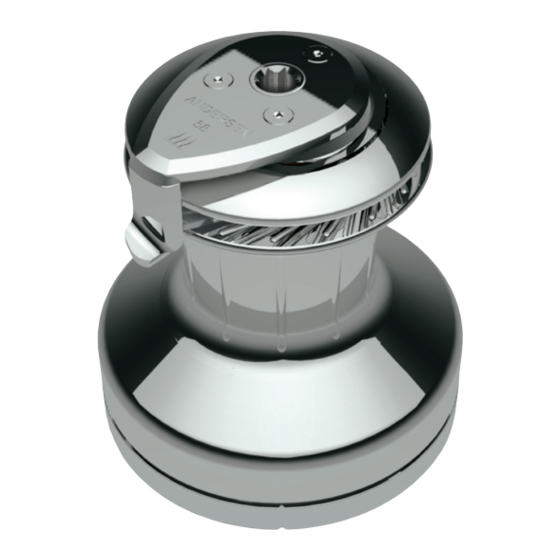

- Page 1 PRODUCT MANUAL 58ST FS (V.2.0.F) 62ST FS (V.2.0.F) RON-WPM-710258-58STFS/62STFS-Rev.3...
- Page 2 58ST FS (V.2.0.F) 62ST FS (V.2.0.F) EXPLODED VIEW ITEM No. 3 - 736111 ITEM No. 17 - 775700 17 .1 17 .2 17 .3 17 .4 17 .5 17 .6 17 .7 17 .1 ITEM No. 18 - 774700 18. 1 18.2...
- Page 3 58ST FS (V.2.0.F) 62ST FS (V.2.0.F) PARTS LIST ITEM NO. QTY. DESCRIPTION PART NO. Screw 543312 Self-tailing arm - Model 58ST 544600 Self-tailing arm - Model 62ST 544610 Self-tailing top complete - Model ST FS 736111 Circlip 590400U Screw 585140...
- Page 4 58ST FS (V.2.0.F) 62ST FS (V.2.0.F) MOUNTING INSTRUCTIONS Installing the winch is easy, if you follow these instructions. The numbers in ( ) refer to the position numbers in the parts list. Tools required for the installation: • Allen key (5 mm) • 6 x M10 (3/8”) countersunk head screws and corresponding • Allen key (8 mm)
- Page 5 11. Assemble in reverse order. During assemble, by the use of a small soft brush lightly grease all gear teeth, drive shaft, roller bearing, shafts, pawls, springs and bushings. Pawls should only be lubricated with a very thin film of ANDERSEN WINCH GREASE. It is very important that pawls can move freely.
- Page 6 Pawl arm springs should be replaced every second year. Spare arm springs and other parts that may be required are included in the ANDERSEN Service Kit. Please refer to the service instruction for the Service Kit suitable for the specific winch.
- Page 7 Do not install or operate this winch before reading and fully understanding the contents of this Product Manual. Stay Alert When Operating Andersen winches are very powerful and have the potential to cause significant damage and/or serious injury if used improperly or without due caution and vigilance. Operators Must be Trained...
- Page 8 PRODUCT MANUAL 58ST FS (V.2.0.F) 62ST FS (V.2.0.F) WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.ronstan.com/warranty Manufactured by Ronstan Denmark ApS. Jægervænget 36 - 7100 Vejle - Denmark office@ronstan.dk - www.andersenwinches.com...
