System Setup (Cont.)
(Continued from previous page)
The initial System Information display identifies OAT100R default configuration
settings, including the Control Port IP address, the PID confi guration, and the output
confi guration, for example:
OAT100R
CodePlus Off Air Transcoder System
Copyright (c) 2010-2012 LG Electronics U.S.A., Inc.
Copyright (c) 2010-2012 Zenith Electronics LLC
SN: 201-12301011
Version 1.8
HW id: 12-19
Ctrl MAC: 00:0C:63:3A:FF:EC
Ctrl IP: 10.166.60.92
Program PIDs: 0x30 - 0x6f
Output: RF
RF config: Mode 2, 256-QAM-B, RF: 6 MHz, 5.36 MSps
RF channels: 2 3 4 5
Local time: Wed Sep 12 14:42:02 CDT 2012
9. Check the Ctrl IP (Control Port IP address) fi eld in the System Information display. By
default, the OAT100R uses DHCP; thus, the DHCP server, if confi gured, assigns an
IP address to the OAT100R once the OAT100R successfully connects to the network.
•
If the Ctrl IP fi eld shows an IP address, the OAT100R is up and running on the
network. Continue with step 10.
•
If the network is confi gured for DHCP but the Ctrl IP fi eld is blank, refer to "Network
Setup" troubleshooting information on page 24.
• If the network is not confi gured for DHCP, you will need to confi gure a static IP
address for the OAT100R. Complete steps 10 to 13 (as required), and then set the
OAT100R IP address using the commands indicated in step 14.
10. Check the Output fi eld in the System Information display. If the default value (RF)
does not identify the appropriate output type, set the output mode as follows:
a) At the Command > prompt, type setup and press Enter to access the Setup Menu.
b) At the Setup Command > prompt, type omode and press Enter to set the
output mode. The system will display a list of the available output mode options
(RF or IP), followed by a prompt for the new output mode:
Enter number of new output mode [1]>
16
Refer to the following diagrams, and complete the system installation as described on
pages 15 to 23.

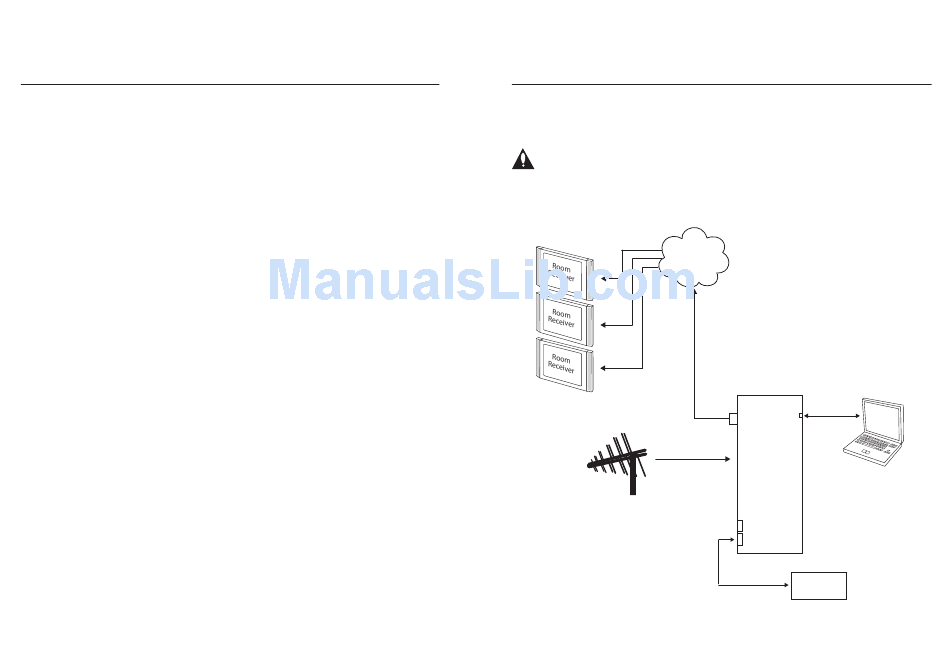

Typical Setup Flow Chart for OAT100R with RF Output
(Continued on next page)
206-4219 206-4219
Caution: Do NOT make system connections until instructed to do so during
the system installation procedure. In some instances, configuration steps
must be performed before physical connections are made.
RF
Distribution
Network
RF
Cable
VHF/UHF
Antenna (s)
Use multiple antennas
or an amplifier/splitter
as necessary. Up to eight
(for 256-QAM output) or
four (for 64-QAM output)
antenna signals may be
connected.

System Setup

OAT100R
Laptop
RF Out
Service Port
PC
Connection
RF IN 8
RF IN 7
RF IN 6
RF IN 5
RF IN 4
RF IN 3
RF IN 2
RF IN 1
Feature Port
Control Port
Network
13
