Page 1: Operation Manual

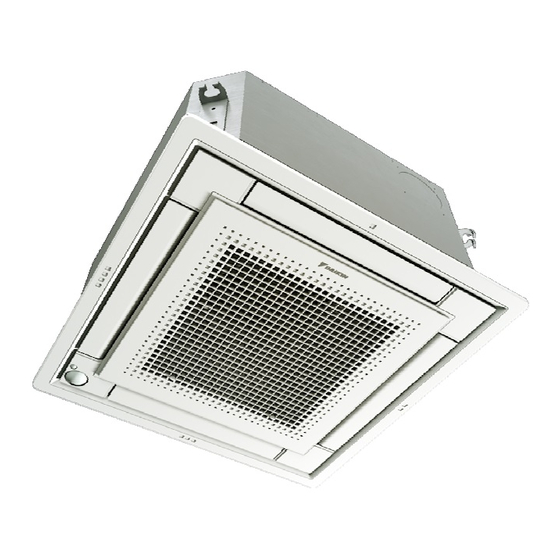

OPERATION MANUAL SYSTEM Inverter Air Conditioners MODELS Ceiling Mounted Cassette type (Multi Flow) FXZQ05TAVJU FXZQ07TAVJU English FXZQ09TAVJU FXZQ12TAVJU FXZQ15TAVJU FXZQ18TAVJU Français Español... - Page 2 Thank you for purchasing this Daikin air conditioner. Carefully read this operation manual before using the air conditioner. It will tell you how to use the unit properly and help you if any trouble occurs. This manual explains about the indoor unit only.
-
Page 3: Safety Considerations
Read these Safety Considerations for Operations carefully proper repair and maintenance may result in water- before installing air conditioning equipment. After complet- leakage, electric shock, and fire. Only use accessories ing the installation, make sure that the unit operates properly made by Daikin that are specifically designed for use during the startup operation. Instruct the customer on how to with the equipment and have them installed by a pro- operate and maintain the unit. fessional. - Page 4 • Operate the air conditioner or heat pump in a suffi- CAUTION ciently ventilated area and not surrounded by obsta- • Do not use the air conditioner or heat pump for any cles. Do not use the air conditioner or heat pump in the other purposes other than comfort cooling or heating. following places. Do not use the unit for cooling precision instruments, a. Places with a mist of mineral oil, such as cutting food, plants, animals or works of art. oil. • Do not place items under the indoor unit as they may b. Locations such as coastal areas where there is a be damaged by condensates that may form if the hu- lot of salt in the air. midity is above 80% or if the drain outlet gets blocked. c. Locations such as hot springs where there is a lot • Before cleaning, stop the operation of the unit by turn- of sulfur in the air. ing the power off or by pulling the supply cord out from d. Locations such as factories where the power volt- its receptacle. Otherwise, an electric shock and injury age varies a lot. may result.
-
Page 5: Names And Functions Of Parts
CONTENTS Ground wiring (Note) (Note) Ground wiring allows electricity flow from the SAFETY CONSIDERATIONS ........[i] [ii] indoor unit to the ground for prevention of 1. NAMES AND FUNCTIONS OF PARTS ......1 electric shocks or a fire in case of emergency. 2. - Page 6 1. Open the suction grille. 3. Clean the filter. Push the two tabs and slowly let the suction grille down. Clean the dust with a vacuum cleaner or wash it with water. If the air filter is After dewatering, extremely dusty, dry the air filter in wash it with the shade.
- Page 7 HOW TO CLEAN THE SUCTION GRILLE 5. Attach the air filter. Refer to step 4 of “HOW TO CLEAN THE AIR FILTER”. 1. Open the suction grille. (page 2) Push the two tabs and slowly let the suction grille down. 6. Attach the suction grille. Position the suction grille to a roughly 90° angle, and while holding the suction grille with one hand, squeeze the suction grille hinge in the direction of the arrows and hook them into the hooking holes.
- Page 8 n C LEANING BEFORE AND AFTER SEASONAL USE Clean the air filter. • Be sure to reinstall the air filter after cleaning. WHAT TO DO WHEN STARTING UP AFTER A LONG (Refer to “2. MAINTENANCE” on page 1.) PERIOD OF NO USE For information on how to install, remove, or clean the optional air filter, refer to the installation manual attached to Confirm the following.
