Installing internal tape drives

Mounting the Drive into a 5.25-inch Drive Bay

The following procedure describes how to mount the drive in a 5.25-inch drive bay. This procedure
assumes your drive has mounting brackets on the sides.
1. Orient the drive so the front of the drive faces the front of the computer.
2. Insert the drive into the computer's drive bay.
3.
Align the drive's front panel with the front panel of the computer.
4. Secure the drive in the mounting bay using four screws on the bottom and six screws on each
side of the drive (see Figure 7 on page 28).
5. Proceed to "Connecting a SCSI Cable" on page 29.
41.3 mm
(1.63 in)
31.5 mm (1.24 in)
21.8 mm (0.86 in)
9.9 mm (0.39 in)
16-M3
41.2 mm
(1.62 in)
Side View
Note: Tolerance for all dimensions is 0.25mm (0.01 in)

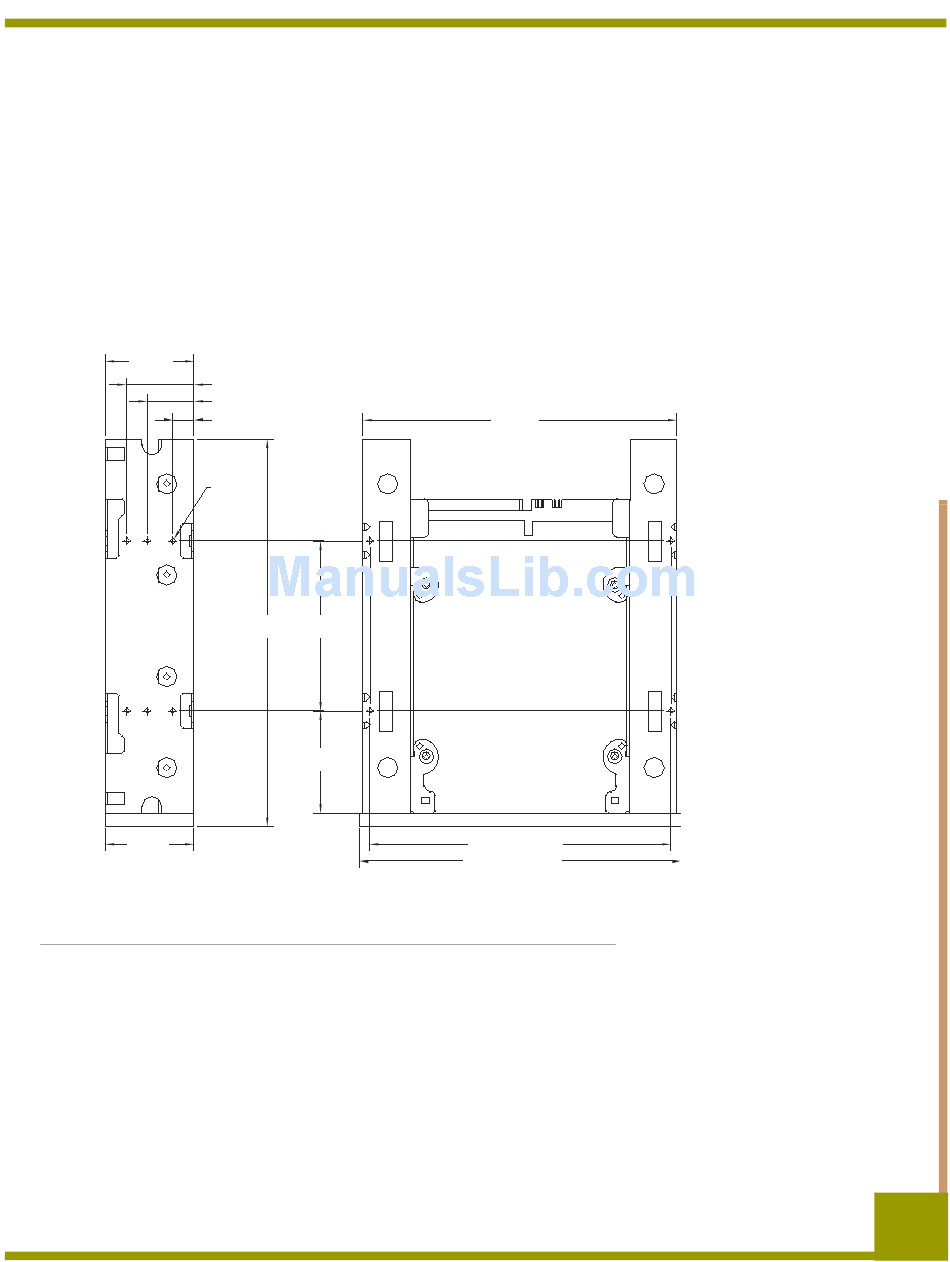

Mounting Holes for the Internal Tape Drive in a 5.25-inch Installation
FIGURE 7.
79.4 mm
174.6 mm
(3.13 in)
(6.87 in)
47.6 mm
(1.87 in)
Mounting the Internal Tape Drive
146 mm
(5.75 in)
139.7 mm (5.50 in)
149.1 mm (5.87 in)
Bottom View
28
