Installing internal tape drives
4.
Secure the drive in the mounting bay using two M3.0 metric screws on each side of the drive
(see Figure 5 on page 27). As Figure 6 on page 27 shows, the 3.5-inch drive has four screw
holes on the bottom and five on each side.
WARNING: Do not use screws longer than 4 mm; otherwise, you may damage the drive.
5.
Proceed to "Connecting a SCSI Cable" on page 29.

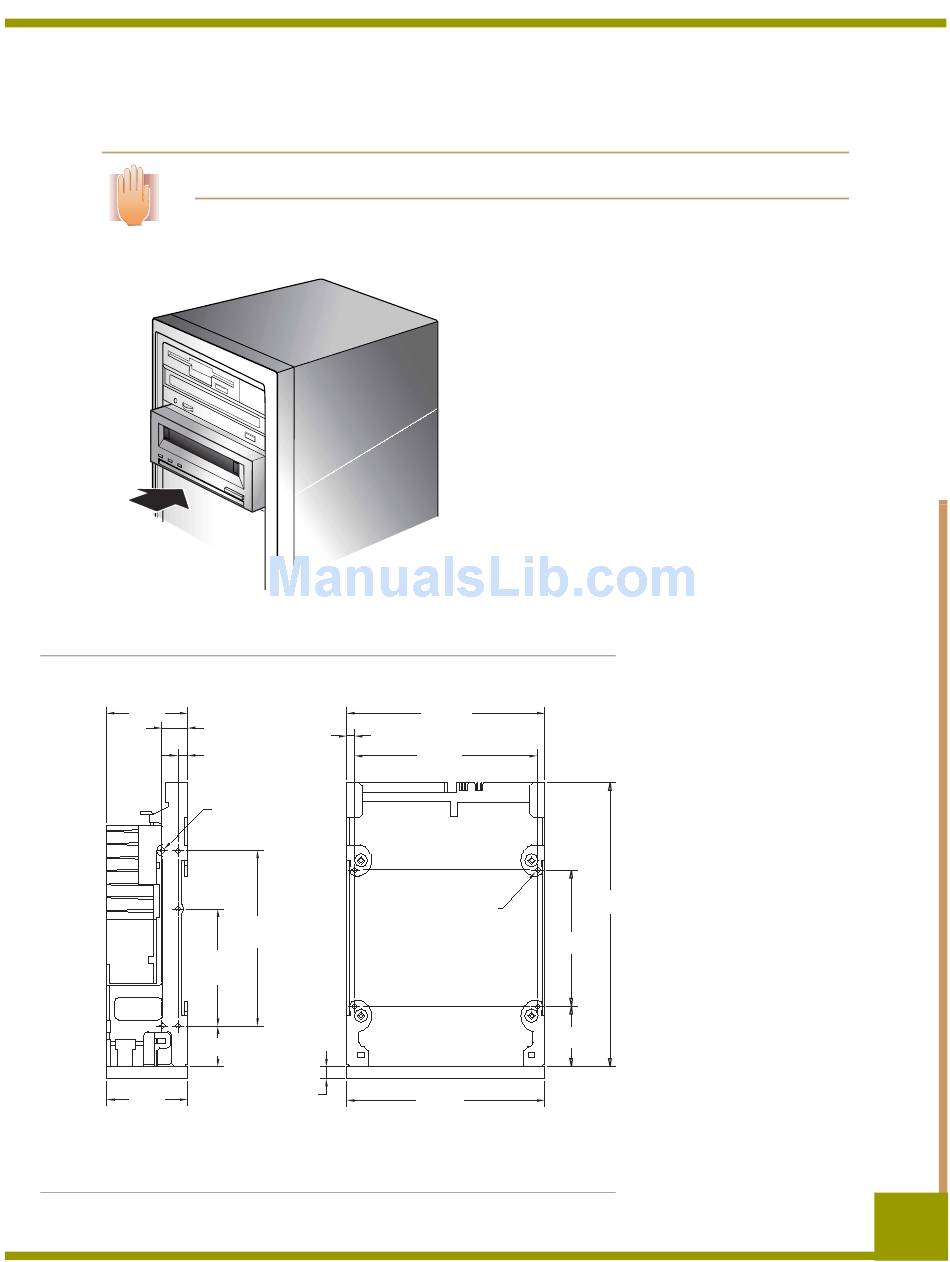

Mounting an Internal Tape Drive
FIGURE 5.
41.3 mm
(1.63 in)
13.0 mm (0.51 in)
2 places
5.0 mm (0.196 in)
2 places
M3.0 x 4 deep min.
(10 places)
60.0 mm
(2.36 in)
2 places
21.0 mm (0.83 in)
2 places
41.2 mm
(1.62 in)
Side View
Note: Tolerance for all dimensions is 0.25mm (0.01 in)
Mounting Holes for the Internal Tape Drive in a 3.5-inch Installation
FIGURE 6.
3.8 mm (0.15 in)
M3.0 x 4 deep min.
90.0 mm
(3.54 in)
2 places
6.0 mm
101.6 mm
(0.24 in)
Bottom View
101.6 mm
(4.00 in)
94.0 mm
(3.70 in)
146.0 mm
(5.75 in)
(4 places)
70.0 mm
(2.75 in)
31.0 mm
(1.22 in)
(4.00 in)
Mounting the Internal Tape Drive
27
