Makita BPS01 Original Instructions Manual

Battery timer setting adapter

Advertisement

Quick Links

Battery Timer Setting Adapter
BPS01
• Non-English versions of operating instruction files are included in the supplied CD-ROM.
IMPORTANT: Read Before Using.

Advertisement

Table of Contents
loading

Summary of Contents for Makita BPS01

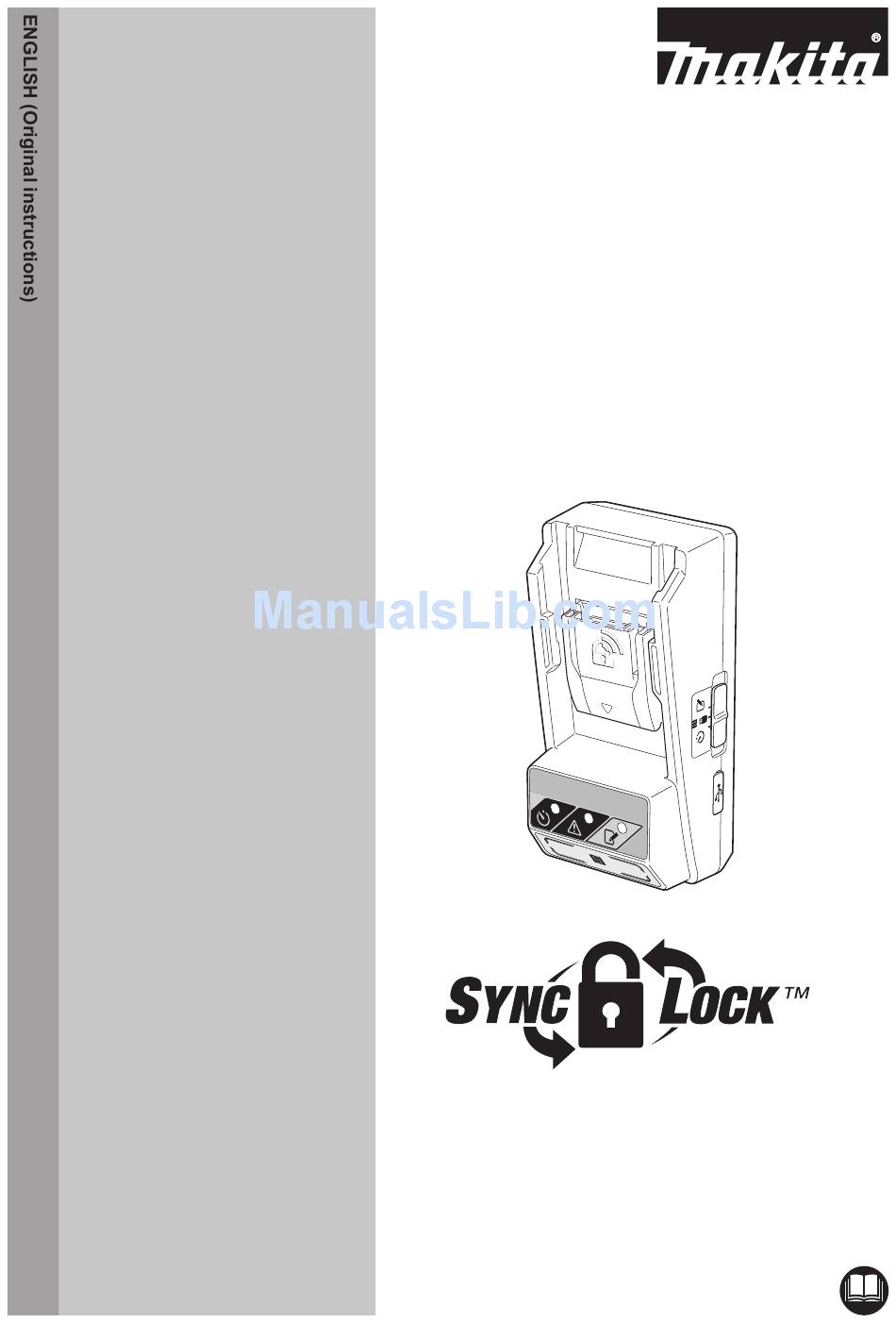

  • Page 1 Battery Timer Setting Adapter BPS01 • Non-English versions of operating instruction files are included in the supplied CD-ROM. IMPORTANT: Read Before Using.
  • Page 2: Identification Of Parts

    PC app for Windows computers Set an expiration time/date to the adapter. Attach a battery cartridge to the adapter to set the expiration time/date to the battery cartridge. NOTE: The BPS01 cannot be used with an iPhone or Mac. 2 ENGLISH...
  • Page 3: Supplied Accessories

    • Do not place the coin cell battery inside a pocket, SUPPLIED bag, etc. together with any small metal objects (such as keys, coins, or necklaces). ACCESSORIES • Do not mechanically crush or cut the coin cell battery when disposing of it. Check that the items in the following list are included in •...
  • Page 4: Prior To Use

    Google account. (If you already have a Google account, skip this step.) NOTICE: Read the Terms of Service and Privacy Policy before creating a Google account. Makita Corporation is not responsible for damages resulting from the creation or use of a Google account.
  • Page 5 3. Tap “APPS” and search for “Makita Timer.” 4. Tap “INSTALL” on the app installation page to install. A “Makita Timer” icon will be created on the home screen. Installing the PC app System requirements The PC must satisfy the following requirements to use the app.
  • Page 6 “Next.” 4. Confirm the destination folder and click “Next.” 5. Click “Install.” 6. When installation is complete, click “Finish.” A “Makita Timer” shortcut will be created on the desktop. 6 ENGLISH...
  • Page 7 Installing the adapter driver 1. Connect the adapter to the PC using a USB cable. The adapter driver will be automatically installed. 2. Open Control Panel and click System and Security. Under System, click on Device Manager and check whether the “USB Serial Port” has been installed successfully under “Ports (COM &...
  • Page 8 4. Select “Browse my computer for driver software.” 5. Click “Browse.” Select the “Makita Timer” folder. And then click “Next.” 8 ENGLISH...
  • Page 9: Operation

    OPERATION NOTE: Be sure to make the necessary preparations (see “PRIOR TO USE”) before performing the following procedures. Interfaces for the mobile device and PC apps In this document, interfaces from the mobile device app (a) are used for explanations, as the interfaces are mostly the same in the apps for both devices. In addition, if you are using the PC app (b), read “tap”...
  • Page 10 4. Tap “Registration Data Setting.” 5. Tap the text box and enter a 4-digit code in the “Registration Cross PIN” field. NOTE: The initial code is “0000.” NOTE: Select the “Show PIN” check box to display the entered code. NOTE: A PIN code must be set per adapter, not per battery cartridge.
  • Page 11 7. Tap “Transmit” to update the settings on the adapter. 8. Start communications. On a mobile device Hold the mobile device closely to the adapter so that the mark on the mobile device is facing NFC contact point. The adapter will beep when the transmission is completed successfully.
  • Page 12 9. Set the operation mode switch to the position. 10. Attach a battery cartridge to the adapter. CAUTION: When installing battery cartridges, be careful not to get your fingers caught between the adapter and the battery cartridge. Align the groove (a) on the battery cartridge with the tongue (b) on the adapter and slide the cartridge into place.
  • Page 13: Setting The Timer

    Setting the timer There are three ways to set an expiration time (by day of the week/time, by time, and by date). NOTE: Battery cartridges with a set expiration time may still be usable after the cartridge has expired (the expiration time may be extended by up to 10%). 1.
  • Page 14 5. Tap the text box and enter the same 4-digit code set for the battery cartridges to be updated in the “Timer Cross PIN” field. NOTE: The initial code is “0000.” NOTE: Select the “Show PIN” check box to display the entered code.
  • Page 15 8. Tap “Transmit” to update the settings on the adapter. 9. Start communications. On a mobile device Hold the mobile device closely to the adapter so that the mark on the mobile device is facing NFC contact point. The adapter will beep when the transmission is completed successfully.
  • Page 16 11. Attach a battery cartridge to the adapter. CAUTION: When installing battery cartridges, be careful not to get your fingers caught between the adapter and the battery cartridge. Align the groove (a) on the battery cartridge with the tongue (b) on the adapter and slide the cartridge into place.
  • Page 17 Checking the settings of the battery cartridge or the adapter NOTICE: You can check whether the battery cartridge has expired by pressing the button (b) on the cartridge. If the battery cartridge is past its expiration date, all segments of the level indicator (a) will flash. NOTE: If the battery cartridge will expire in approximately one hour, all segments of the level indicator (a) on the battery cartridge flash.
  • Page 18 5. Tap “Read Setting Status.” 6. Select the unit to be checked. a. If checking the settings of the battery cartridge Tap “Battery Status.” b. If checking the configuration of the adapter Tap “Adapter Configuration.” 7. Start communications. On a mobile device Hold the mobile device closely to the adapter so that the mark on the mobile device is facing...
  • Page 19 8. Check the following settings. Battery cartridge settings (8-a) 8-a. • Operation Mode • Hours Remaining (automatically calculated by the app) • User Name Adapter settings (8-b) 8-b. • Timer Setting • Change PIN (PIN update mode NO/YES) • Change User Name (user name update mode NO/YES) •...
  • Page 20 Updating the battery cartridge settings without using the apps If necessary settings are saved to the adapter in advance, the settings can be transmitted to battery cartridges. 1. Change operation mode. Update the PIN code and user name Set the operation mode switch to the position. Update the timer settings Set the operation mode switch to the position.
  • Page 21: Maintenance

    MAINTENANCE Cleaning the adapter Wipe the adapter’s exterior with a cloth slightly moistened with mild detergent. NOTICE: Never use hot water (hotter than 40°C or 104°F), gasoline, naphtha, thinner, alcohol, etc. Discoloration, deformation, or cracks may result. Replacing the coin cell battery NOTICE: The adapter’s internal clock runs on power supplied from the coin cell battery.
  • Page 22 4. Press down on the coin cell battery until the tab clicks to secure the battery. 5. Replace the cover. 6. Reconfigure the adapter. For details, see “Registering a PIN code and user name” and “Setting the timer.” 22 ENGLISH...
  • Page 23: Troubleshooting

    NOTICE: If the problem persists after the remedial harmful interference in a residential installation. This action is taken, consult your nearest Makita Service equipment generates, uses and can radiate radio Center. frequency energy and, if not installed and used in...
  • Page 24 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan www.makita.com 885523-7...
