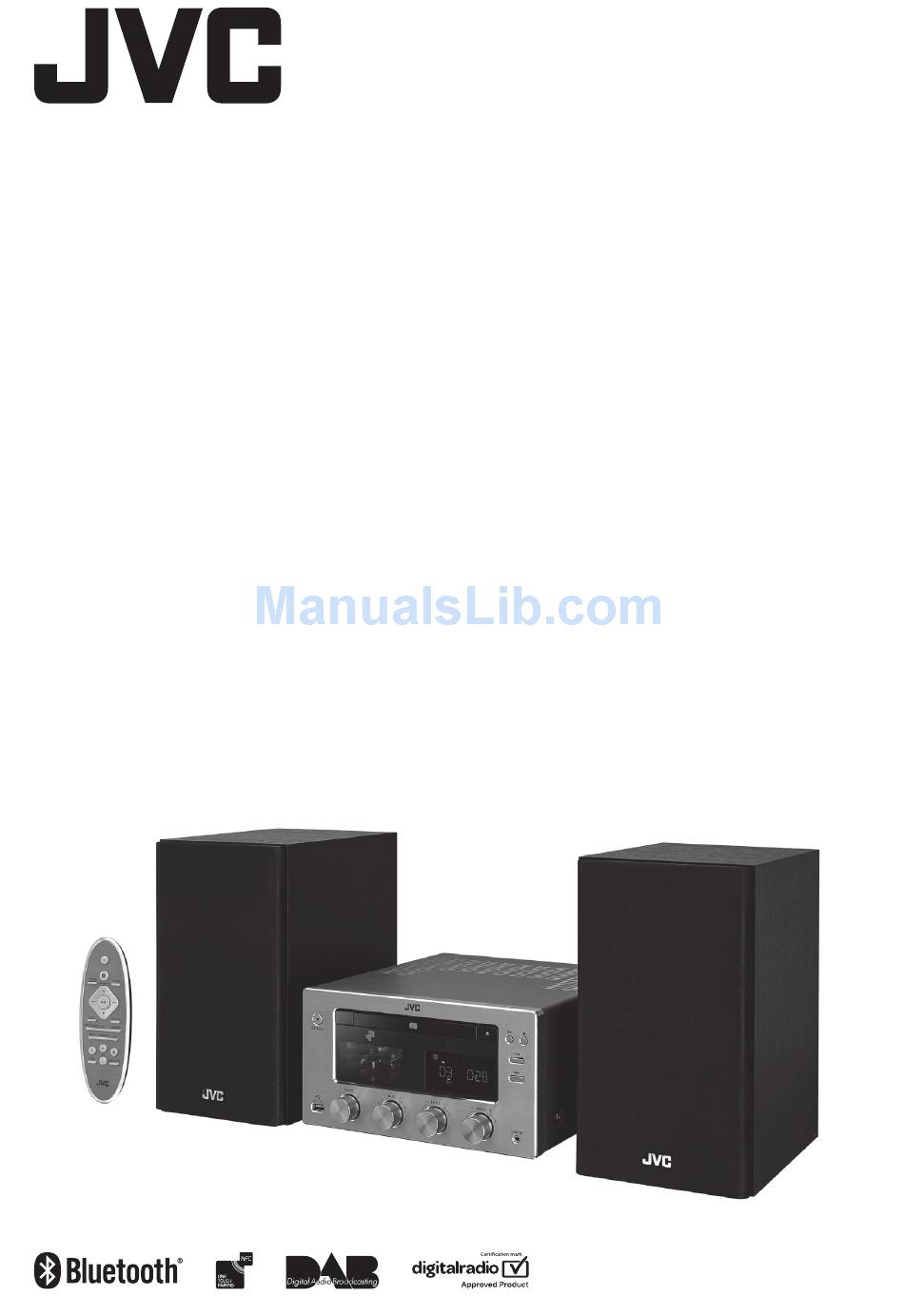

- Page 1 Instruction Manual Wireless Micro DAB Hi-Fi with Valve Amplifier UX-D150...
-
Page 2: Table Of Contents
Contents Safety Warnings ........................4 Unpacking ..........................6 Product Overview ........................7 Main Unit .................................7 Remote Control ............................8 Preparation ...........................9 Battery Replacement for the Remote Control ..................9 Remote Control Operation Range ...................... 10 Connections ........................11 Connecting the DAB/FM Aerial ......................11 Speaker Connections ..........................11 Connecting Auxiliary Equipment ......................12 Connecting an Mobile Devices ......................12 Connecting to the Mains Supply ......................13... - Page 3 Using the USB ........................24 AUX / AUDIO IN Operation ....................25 Bluetooth® Operation ....................... 25 NFC (Near Field Communication) Operation ..............26 Maintenance ........................26 Cleaning the Unit ............................26 Removing, Installation the Grill and Cleaning the Speakers ............ 26 Handling Discs ............................
-
Page 4: Safety Warnings
Safety Warnings • Read all the instructions carefully before Ventilation using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure • Retain the manual. If you pass the unit that curtains and other materials do not onto a third party make sure to include this obstruct the ventilation vents. - Page 5 Supervision Service • Children should be supervised to ensure • To reduce the risk of electric shock, do not that they do not play with the unit and the remove screws. The unit does not contain remote control. any user-serviceable parts. Please leave all maintenance work to qualified personnel.
-
Page 6: Unpacking
Thank you for purchasing your new JVC Hi-Fi System. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 7: Product Overview
Product Overview Main Unit Front View STANDBY Button / Standby Indicator NFC (Near Field Communication) 3. Disc Tray 4. Bluetooth® Indicator Light 5. Remote Sensor Open / Close Button Play / Pause Button Stop Button 9. USB Socket 10. SOURCE Dial 11. -
Page 8: Remote Control
Remote Control Standby Button Bluetooth® Button 3. CD/USB Button 4. FM/DAB Button 5. ALBUM/PRESET Button Button Button Button 9. ALBUM/PRESET Button 10. AUX Button 11. AUDIO IN Button Button 13. REPEAT/SHUFFLE Button 14. SCAN/A-B Button 15. PROGRAM Button 16. INFO Button 17. -
Page 9: Preparation
Preparation Battery Replacement for the Remote Control 1. Press and hold the button at the back of the remote control to open the back cover. 2. Insert 2 AAA batteries with correct polarity (+/-) as indicated. 3. Replace the back cover. Ensure the back cover is in right position. -
Page 10: Remote Control Operation Range
Remote Control Operation Range • Point the remote control to the Remote sensor unit no more than 6 meters from the remote control sensor and within 60° horizontally and 20° vertically of the front of the unit. 20° 20° • Please note that the operating 30°... -
Page 11: Connections
Connections Connecting the DAB/FM Aerial Fully extend the DAB / FM aerial. Connect the supplied DAB / FM aerial to the DAB / FM antenna socket on the rear of the unit by turning the antenna screw cap clockwise. Rear View of the Main Unit • Do not overtighten, this could damage the aerial. -
Page 12: Connecting Auxiliary Equipment
Connecting Auxiliary Equipment Connect the AUX IN terminals on the rear of the main unit to the AUX output terminals on the auxiliary equipment with an RCA stereo audio cable illustrated below. Rear View of the Main Unit Auxiliary Equipment AC 220-240V ~50/60Hz RCA stereo audio cable (included) -
Page 13: Connecting To The Mains Supply
Connecting to the Mains Supply • Ensure all audio connections of the unit are connected before connecting to the mains power socket. • Make sure the mains plug is firmly inserted into the mains socket. • To switch the unit off completely, remove the mains plug from the mains socket. • Please turn the unit off completely to save energy when not in use. -
Page 14: Basic Operating
This instruction manual explains the basic instructions for operating this unit. Unless otherwise stated, all operations described are based on remote control use. Basic Operating Switching ON / OFF When you first connect the unit to the AC power, the unit will be in Standby mode. The STANDBY indicator will light up red. -
Page 15: Adjust The Speaker Level Settings And Effects
Adjust the Speaker Level Settings and Effects Adjusting the Volume To increase or decrease the volume, turn the – VOLUME + dial on the unit or press the VOL + / – buttons on the remote control. Mute Sound button again, or press VOL + / – If you wish to turn the sound off, press button. -
Page 16: Clock Operation
Clock Operation In DAB / RDS station, the unit can synchronize with time transmitted by DAB / RDS station (with CT information) automatically. Manually Setting the Clock Manual setting the clock can only be done in Standby mode. 1. In Standby mode, press and hold the CLOCK button until the display scrolls across CLOCK SET, then the word “CLOCK”... -
Page 17: Daily Timer
Daily Timer You can use the setting timer to make the unit automatically turn on at a certain time everyday from standby. When the setting timer is on, the timer indicator “ ” will be displayed. The clock must be correctly set for the timer to operate correctly. 1. -
Page 18: Auto Scan
Auto Scan The auto scan will search for the entire DAB Band III channels. After the scan has finished, the first alphanumerically found station will be automatically selected. 1. Press SCAN/A-B to activate automatic program mode. The display will show “SCANNING”... -
Page 19: Dab Information Display
DAB Information Display You can view the DAB service information in the following modes. Depending on the DAB radio station you are tuning to, some information modes may be unavailable. Press the INFO button repeatedly on the remote control to view the following information. Station Name Station Name When an RDS station is received, the name of that... -
Page 20: Fm Radio Operation
FM Radio Operation • Make sure that you have correctly connected and fully extended the antenna. • The search may not stop at a station with a very weak signal. • If reception is still poor, try to adjust the DAB / FM aerial location. Turn SOURCE dial on the unit or press FM/DAB button repeatedly on the remote control to select the tuner source. -
Page 21: Rds (Radio Data System) Reception
RDS (Radio Data System) Reception Many FM stations are broadcasting added data compatible with RDS (Radio Data System). This radio set offers convenient functions using such data. Press the INFO button repeatedly to view the following information. Station Name Station Name When an RDS station is received, the name of that station will be displayed. -
Page 22: Cd/Mp3/Wma Operation
CD/MP3/WMA Operation Compatible Disc Types Disc Types Disc Logo Recorded Content CD-R (CD Recordable - Audio/MP3/WMA) AUDIO / MP3 / WMA CD-RW (CD-Rewritable - Audio/MP3/WMA) AUDIO / MP3 / WMA AUDIO-CD (Compact Disc Digital Audio) AUDIO • Some recorded files may not be able to be played due to the type and format of disc or condition of the recording. -
Page 23: Repeat Playback
Repeat Playback ONE and ALL Repeat Play • CD Disc Press the REPEAT/SHUFFLE button repeatedly to set the function. First press : To repeat the same track, the words “TRK” will blink and “REP” will stay lit. Second press : To repeat playing all tracks on a disc, the words “TRK” and “REP ALL” will stay lit. -
Page 24: Programme Play
Programme Play You can programme up to 20 tracks to play in any desired order. 1. Make sure the disc is inserted and in STOP mode. 2. Press PROGRAM to enter the programme mode. The display will show “001 P--01” and “PROG”. -
Page 25: Aux / Audio In Operation
Bluetooth® mode. The word “BT” will be showed on the display and the Bluetooth® indicator will blink. 2. Activate your Bluetooth® device and select the search mode. “UX-D150” will appear on your Bluetooth® device list. 3. Select “UX-D150” and enter “0000” for the password if necessary. If connect successful, the Bluetooth®... -
Page 26: Nfc (Near Field Communication) Operation
NFC (Near Field Communication) Operation Pair your NFC-enabled mobile device directly with this unit by just a single tap. 1. Activate NFC on your mobile device. 2. Tap the mobile device on the icon of the unit. The device vibrates or a message pops up. -
Page 27: Handling Discs
Handling Discs • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean. Playback side •... -
Page 28: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. If you require additional assistance For UK, please call our UK Call Centre on 0344 561 1234. •... - Page 29 • Perform a system reset and then a DAB full scan. Bluetooth® Problem Solution I cannot find • Ensure the Bluetooth® function is activated on your “UX-D150” on my Bluetooth® device. Bluetooth® device. • Ensure you have paired your unit with the Bluetooth® device. Some NFC-enabled • Download and install NFC reader apps into your NFC-...
-
Page 30: Product Fiche And Specifications
Product Fiche and Specifications Brand Model UX-D150 System Section Power Supply 220V-240V~ 50/60Hz Power Consumption 70 W ≤ 1% Unit Dimension 245 (W) x 295 (D) x 136 (H) mm Speakers Section Impedance 4 Ω Output Power 2 x 75 Watts RMS... -
Page 31: Useful Information And Licences
Useful Information and Licences For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call UK: 0344 561 1234 Ireland: 1890 818 575. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. - Page 32 For Help and Support Call UK: 0344 561 1234 Ireland: 1890 818 575 The product is distributed and warranted exclusive by DSG Retail Ltd. “JVC” is the trademark of JVC KENWOOD Corporation, used by DSG Retail Ltd. under license. (IB-UX-D150-160624V2)
