Welding settings with the MI-100control

Select the welding operation with the buttons EF, e.g.
a - HSS plates
b - 3-layer plate joint
c - Galvanised plates
Several options can be selected at the same time.
During welding, hold the trigger knob of the pliers depressed until the welding process is terminat-
ed automatically.
Example of a welding programme sequence (see Fig. 14):
A – Prepressing 1 sec.
C – Welding time, depending on setting
A – Post-pressing 1 sec.
If you stop pushing the release button (Fig. 1) before the welding starts, the welding
i
will be stopped as well. If you keep pressing the release button, the post-pressing
time will be prolonged.
Note: Aborting the welding is not possible.

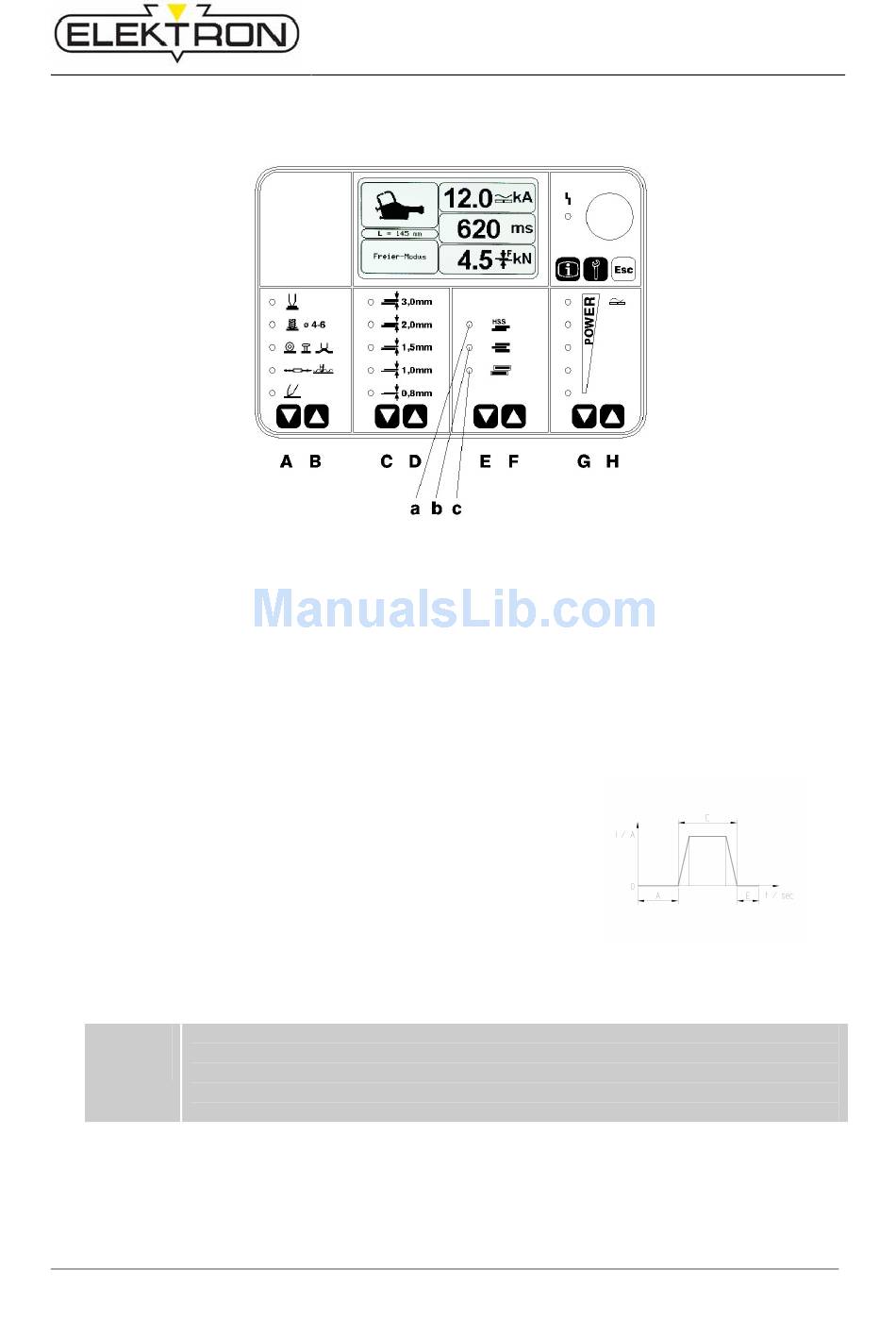

Fig. 13: Selection of welding operation
)
) see Fig. 13
)
MTX 4900
Operation
Fig. 14: Welding programme
sequence
