Welding settings with the MI-100control

5.4
Select the welding operation with the buttons EF, e.g.
a - HSS plates
b - 3-layer plate joint
c - Galvanised plate
Several options can be selected at the same time.
During welding, hold the trigger knob of the pliers depressed until the welding process is terminat-
ed automatically.
Example of a welding programme sequence (see Fig. 4):
A – Prepressing 1 sec.
C – Welding time, depending on setting
A – Post-pressing 1 sec.
20

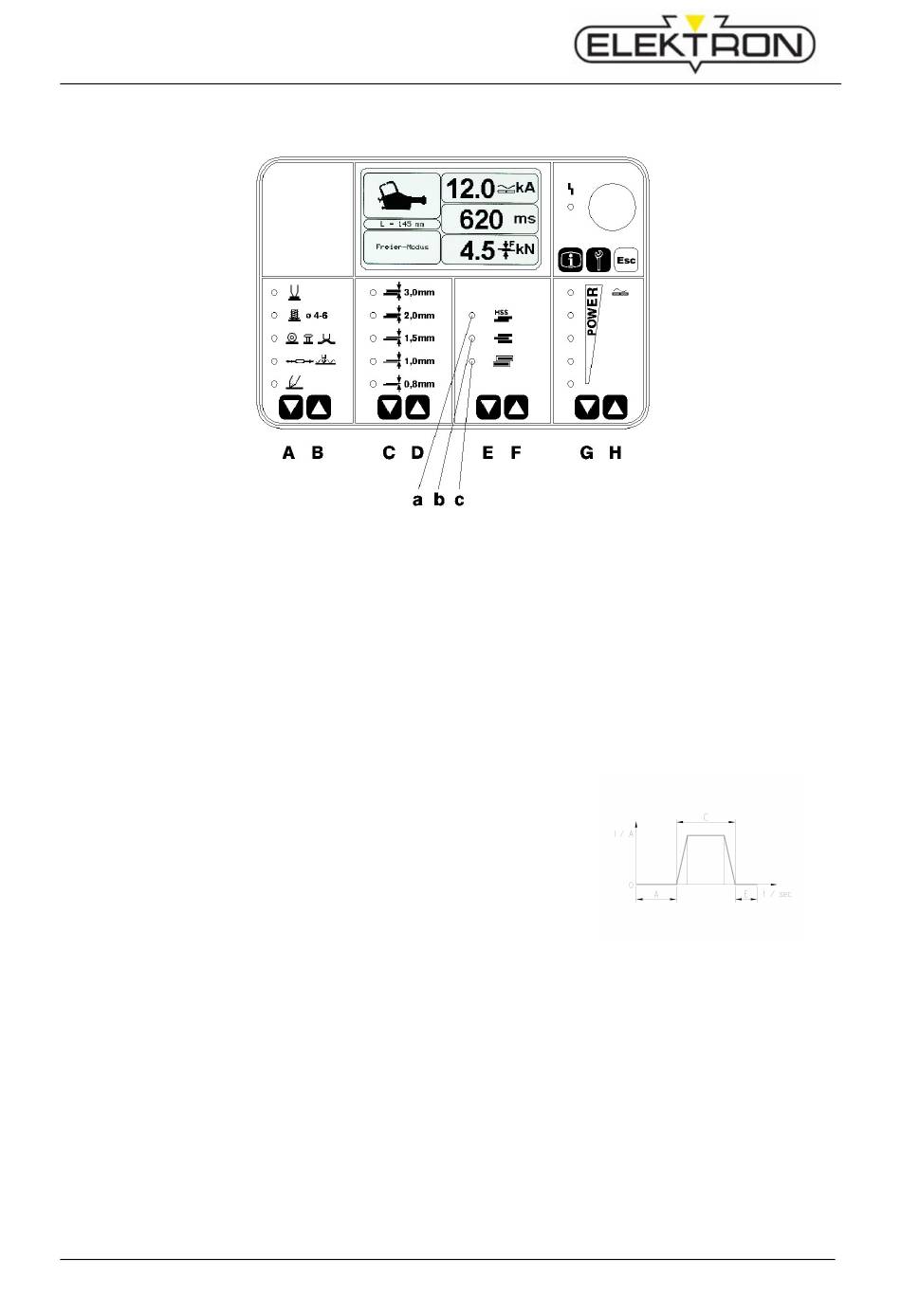

Fig. 9: Selection of welding operation
)
) see Fig. 3
s
)
Fig. 10: Welding programme
sequence
