MTX 4900

Operation

5 Operation
5.1

Connection and preparation of the spot welding pliers

5.1.1

Mounting ring bar

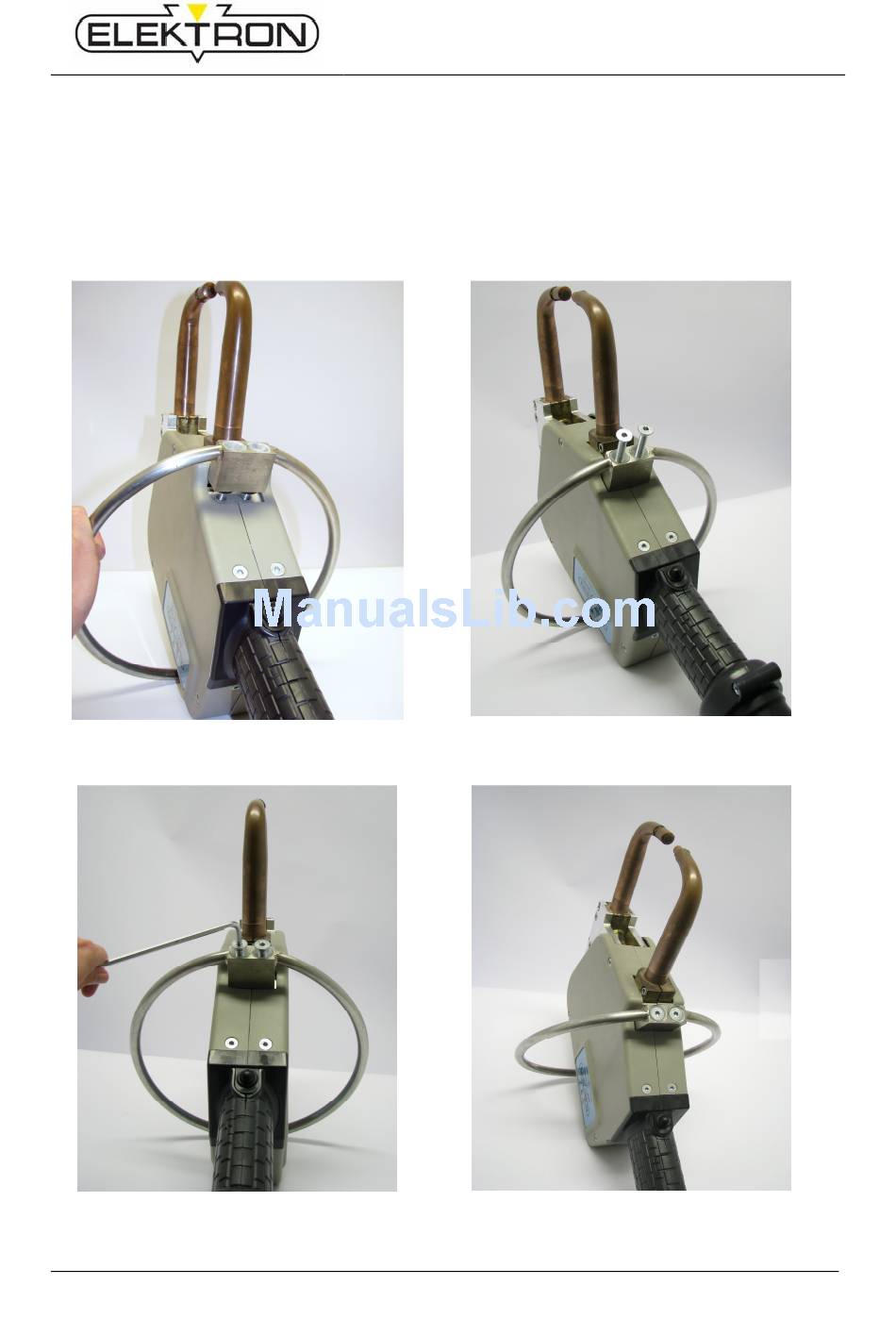

1. Mounting ring bar
2. Put in screws with plastic sleeves (isolation)
3. Fix screws tight
4. Ring bar fixed at pliers
Fig. 3: Mounting ring bar
15
