MTX 4900
Operation
5.1.2

Connecting the pliers

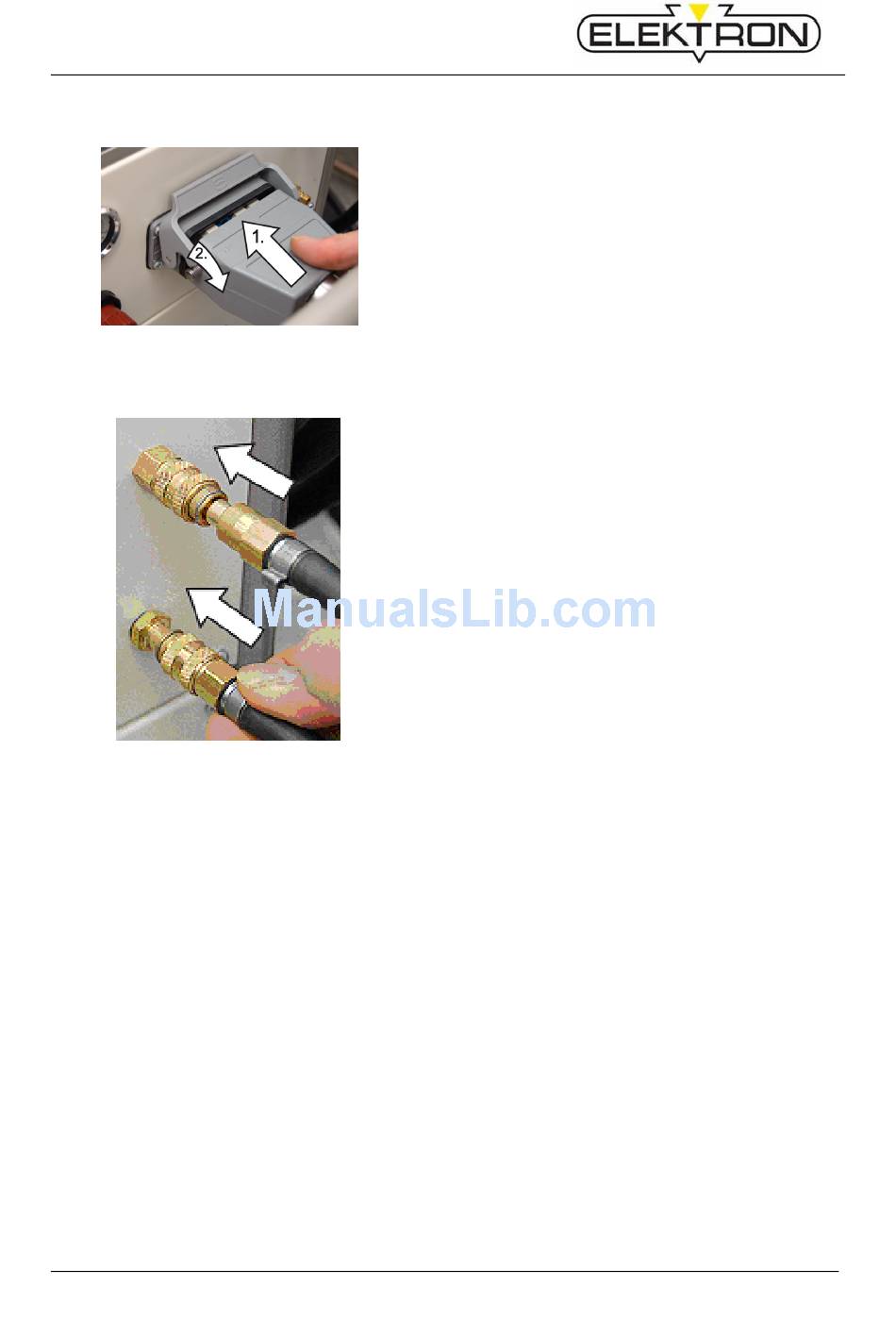

Fig .4: Connecting the pliers
Fig. 5: Water cooling system for the
pliers
16
1. Push the main plug of the welding pliers into the main
socket of the equipment (Fig .4/1).
2. Push down the clamps to lock the connection. (Fig .4/2).
3. Connect the water cooling system of the pliers.
