Connecting The Pliers - Elektron MULTISPOT MTC-6000 Operating Manual

MTC 6000
Technical data

Connecting the pliers

5.1.2

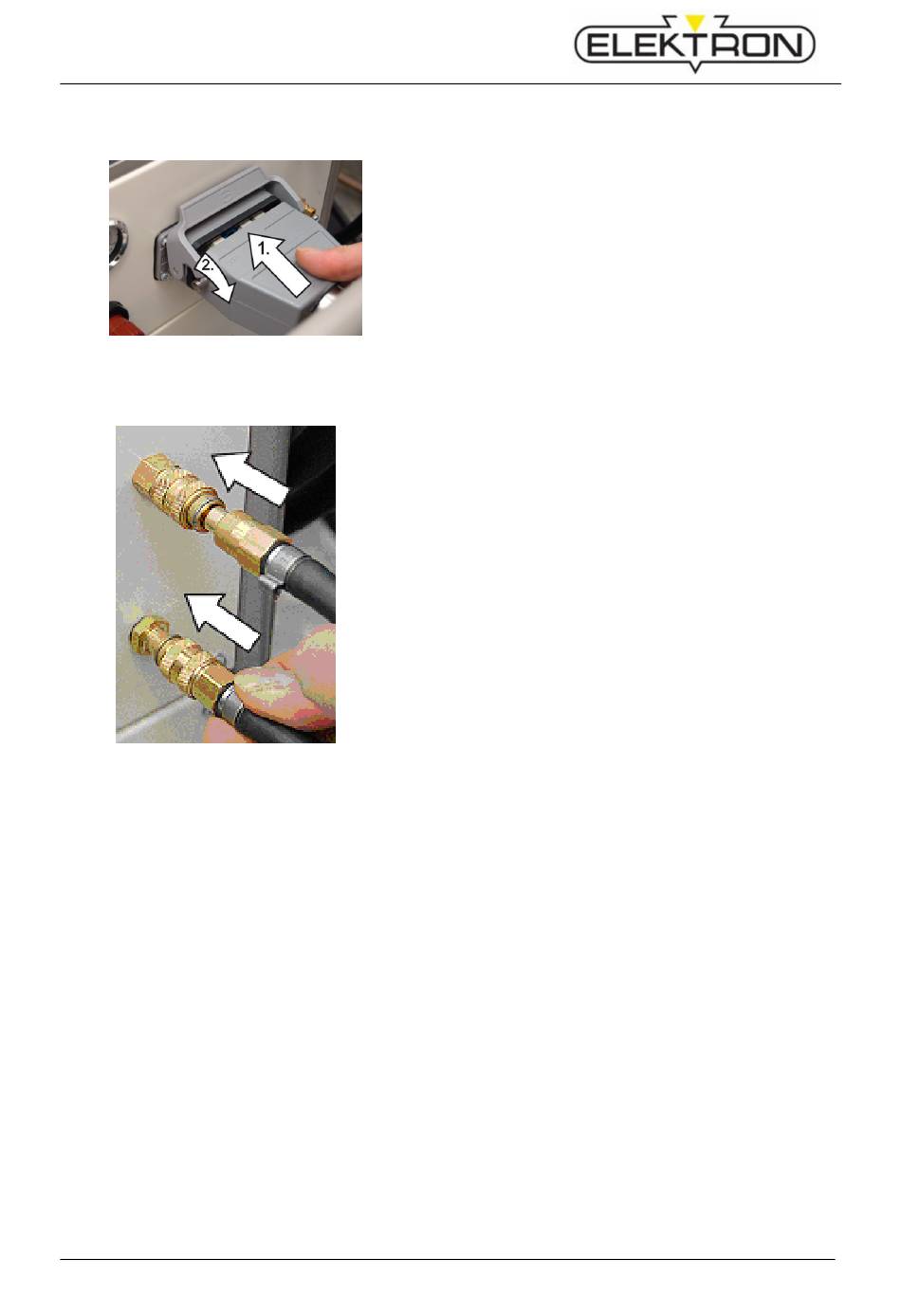

Fig.4: Central connection of the pliers
Fig.5: Water cooling of the pliers
16
1. Push the central connector of the welding pliers com-
pletely into the central connection on the machine
(Fig.4/1).
2. Press the locking bracket downwards (Fig.4/2.).
3. Connect water cooling of the pliers.
